M5392 Series

Catalog

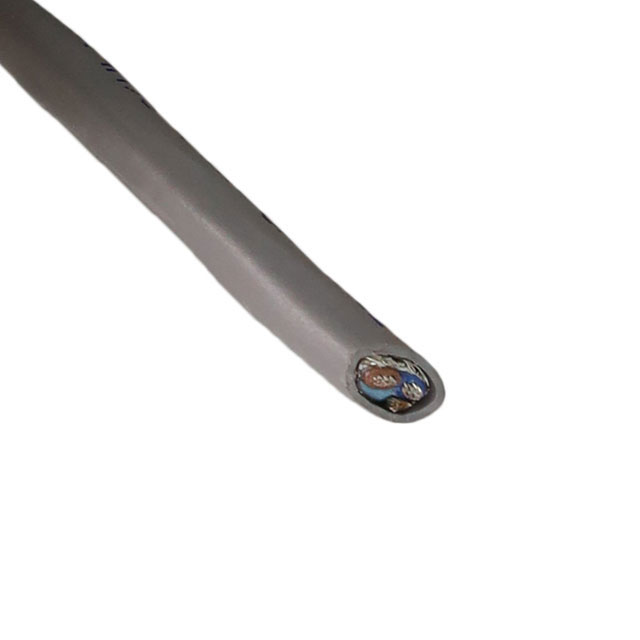

CABLE 2COND 18AWG SLATE SHLD

Part	Shield Coverage	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Shield Type	Conductor Insulation	Number of Conductors	Features	Conductor Material	Ratings	Voltage	Length [x]	Length [x]
ALPHA WIRE M5392 SL002	100 %	Aluminum	0.251 in	6.38 mm	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Slate	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	152.4 m	500 ft	18 AWG	Foil	Poly-Vinyl Chloride (PVC)	2	Drain Wire Rip Cord	Copper Tinned	UL Style 2464	300 VDC
ALPHA WIRE M5392 SL199	100 %	Aluminum	0.251 in	6.38 mm	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Slate	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	304.8 m	1000 ft	18 AWG	Foil	Poly-Vinyl Chloride (PVC)	2	Drain Wire Rip Cord	Copper Tinned	UL Style 2464	300 VDC
ALPHA WIRE M5392 SL001	100 %	Aluminum	0.251 in	6.38 mm	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Slate	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	304.8 m	1000 ft	18 AWG	Foil	Poly-Vinyl Chloride (PVC)	2	Drain Wire Rip Cord	Copper Tinned	UL Style 2464	300 VDC
ALPHA WIRE M5392 SL005	100 %	Aluminum	0.251 in	6.38 mm	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	Slate	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in			18 AWG	Foil	Poly-Vinyl Chloride (PVC)	2	Drain Wire Rip Cord	Copper Tinned	UL Style 2464	300 VDC	100 ft	30.5 m
