CP24B-M2E Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
22MM/GN/MOMENTARY/1NC
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Switch Function | Voltage Rating - AC | Type | Color - Actuator/Cap | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Mounting Type | Termination Style | Actuator Type | Current Rating (Amps) | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

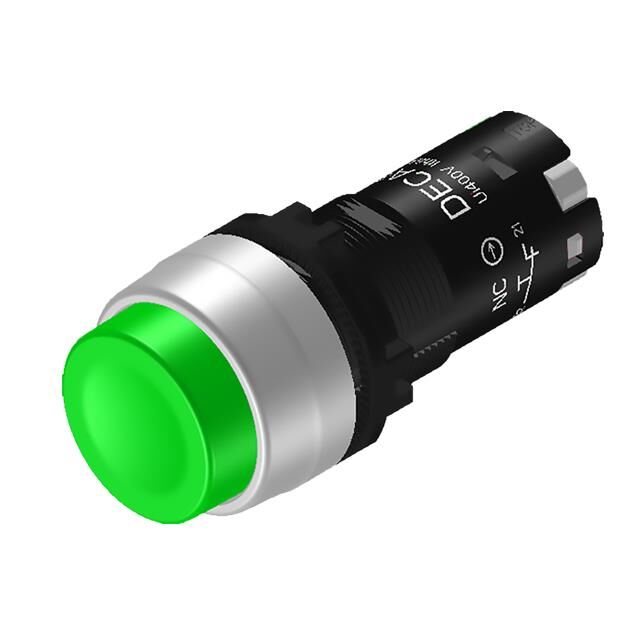

 MEAN WELL USA Inc. | 5000000 Cycles | 100000 Cycles | 30 V | On-Mom | 120 V | Standard | Green | IP66 - Dust Tight Water Resistant | -25 °C | 70 °C | SPST-NC | Panel Mount Front | Spring Terminal | Button Round | 2.5 A 8 A | 22.3 mm |

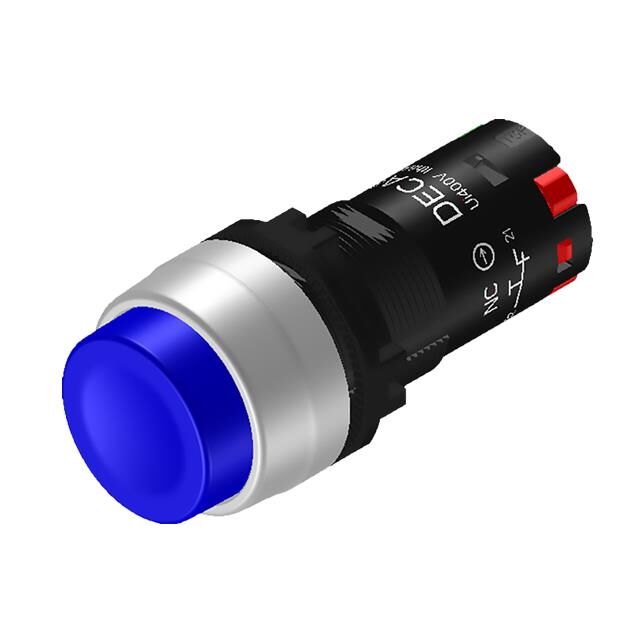

 MEAN WELL USA Inc. | 5000000 Cycles | 100000 Cycles | 30 V | Off-Mom | 120 V | Standard | Blue | IP66 - Dust Tight Water Resistant | -25 °C | 70 °C | DPST-NO | Panel Mount Front | Spring Terminal | Button Round | 2.5 A 8 A | 22.3 mm |
MEAN WELL USA Inc. | 5000000 Cycles | 100000 Cycles | 30 V | Off-Mom | 120 V | Standard | Green | IP66 - Dust Tight Water Resistant | -25 °C | 70 °C | DPST-NO | Panel Mount Front | Spring Terminal | Button Round | 2.5 A 8 A | 22.3 mm |
MEAN WELL USA Inc. | 5000000 Cycles | 100000 Cycles | 30 V | Off-Mom On-Mom | 120 V | Standard | Blue | IP66 - Dust Tight Water Resistant | -25 °C | 70 °C | DPST-NO/NC | Panel Mount Front | Spring Terminal | Button Round | 2.5 A 8 A | 22.3 mm |
