M80-701 Series

Catalog

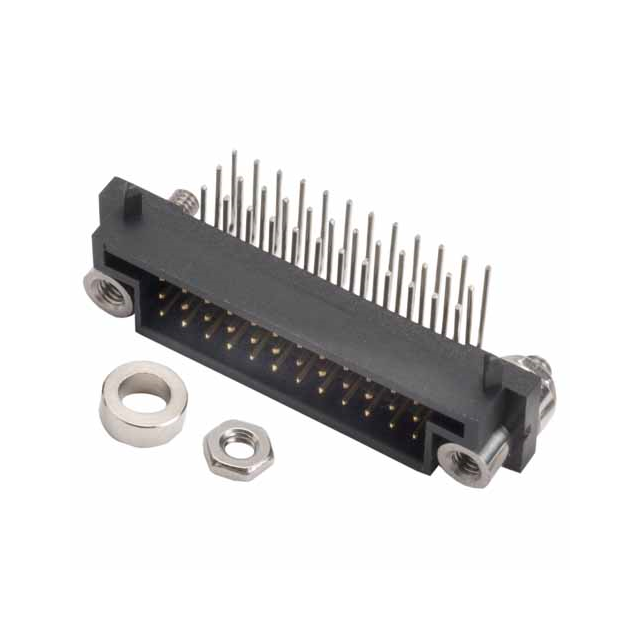

9 X 3-ROW MALE HORIZONTAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Style	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Height	Insulation Height	Number of Rows [custom]	Termination	Insulation Material	Number of Positions	Features	Material Flammability Rating	Number of Positions Loaded	Insulation Color	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Connector Type	Fastening Type	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Voltage Rating
Harwin Inc. M80-7012742	12 µin	0.3 µm	Shrouded - 4 Wall	0.091 "	2.3 mm	-55 C	125 °C	Phosphor Bronze	Board to Board Cable	0.079 "	2 mm	Circular	0.358 "	9.1 mm	3	Solder	Nylon 4/6 Polyamide (PA46)	27	Board Guide Mating Flange Mating Hardware	UL94 V-0	All	Black	Through Hole	2 mm	0.079 in	2.2 A	Header	Threaded	Male Pin	Gold	29.5 µin	0.75 µm	Tin
Harwin Inc. M80-7013622			Shrouded - 4 Wall	0.091 "	2.3 mm	-55 C	125 °C	Phosphor Bronze	Board to Board Cable	0.079 "	2 mm	Circular	0.358 "	9.1 mm	3	Solder	Nylon 4/6 Polyamide (PA46)	36	Board Guide Mating Flange Mating Hardware	UL94 V-0	All	Black	Right Angle Through Hole	2 mm	0.079 in	2.2 A	Header	Threaded	Male Pin	Gold	29.5 µin	0.75 µm	Tin-Lead	118.1 µin	3 µm	120 VDC
Harwin Inc. M80-7015142			Shrouded - 4 Wall	0.091 "	2.3 mm	-55 C	125 °C	Phosphor Bronze	Board to Board Cable	0.079 "	2 mm	Circular	0.358 "	9.1 mm	3	Solder	Nylon 4/6 Polyamide (PA46)	51	Board Guide Mating Flange Mating Hardware	UL94 V-0	All	Black	Right Angle Through Hole	2 mm	0.079 in	2.2 A	Header	Threaded	Male Pin	Gold	29.5 µin	0.75 µm	Tin	118.1 µin	3 µm	120 VDC
