ESD protection for differential data lines
Description
AI
The devices are ElectroStatic Discharge (ESD) protection devices for one, two or three differential channels.
Beta
⌘K
ESD protection for differential data lines
ESD protection for differential data lines
| Part | Power Line Protection | Unidirectional Channels | Voltage - Breakdown (Min) [Min] | Voltage - Reverse Standoff (Typ) | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Current - Peak Pulse (10/1000µs) | Type | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Capacitance @ Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

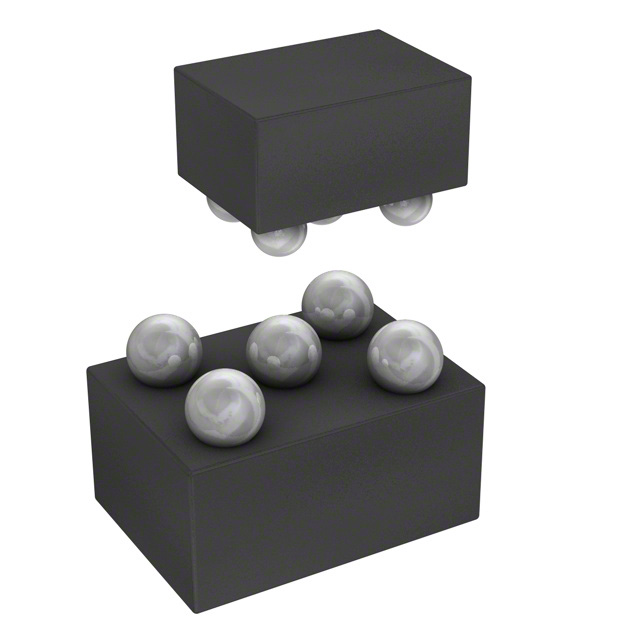

Nexperia USA Inc. | 2 | 6 V | 5.5 V | 0.77 | 1.17 | 5-WLCSP | 7 A | Zener | HDMI | Surface Mount | 85 C | -40 ¯C | 5-UFBGA WLCSP | ||
 Nexperia USA Inc. | 2 | 6 V | 0.77 | 1.17 | 5-WLCSP | 8 A | Zener | HDMI USB | Surface Mount | 85 C | -40 ¯C | 5-UFBGA WLCSP | 0.45 pF | ||
Nexperia USA Inc. | 2 | 6 V | 5 V | 0.77 | 1.17 | 5-WLCSP | 8 A | Zener | HDMI USB | Surface Mount | 125 °C | -40 °C | 5-UFBGA WLCSP | 0.45 pF |
