VOT8025 Series

Catalog

OPTOCOUPLER PHOTOTRIAC 800V DIP5

Part	Supplier Device Package	Voltage - Off State	Voltage - Isolation [custom]	Mounting Type	Number of Channels [custom]	Current - Hold (Ih)	Package / Case	Package / Case	Package / Case	Package / Case	Current - LED Trigger (Ift) (Max) [Max]	Approval Agency	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Static dV/dt (Min) [Min]	Current - On State (It (RMS)) (Max) [Max]
Vishay Semiconductor Opto Division VOT8025AD-V	6-DIP	800 V	5300 Vrms	Through Hole	1	400 µA	6-DIP	0.3 in	5 Leads	7.62 mm	5 mA	CQC cUL UL VDE	Triac	-40 C	110 °C	50 mA	1 kV/µs	100 mA

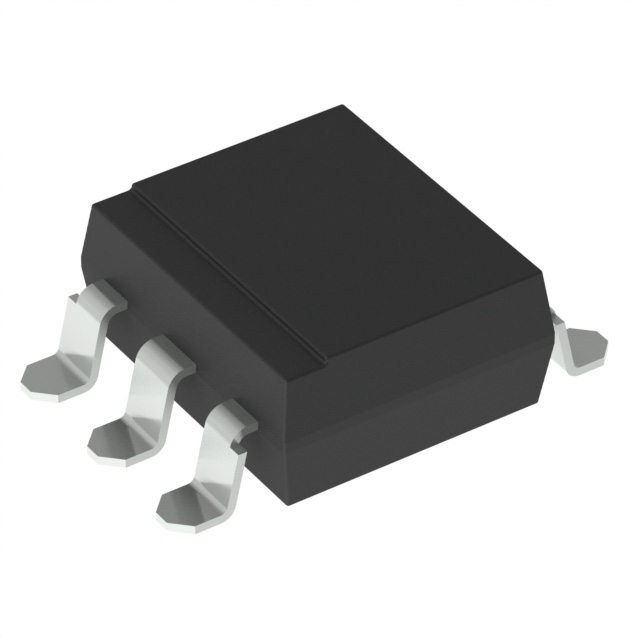

Vishay Semiconductor Opto Division VOT8025AB-VT	6-SMD	800 V	5300 Vrms	Surface Mount	1	400 µA	6-SMD (5 Leads) Gull Wing				5 mA	CQC cUL UL VDE	Triac	-40 C	110 °C	50 mA	1 kV/µs	100 mA
Vishay Semiconductor Opto Division VOT8025AG-V	6-DIP	800 V	5300 Vrms	Through Hole	1	400 µA	6-DIP	10.16 mm	5 Leads	10.16 mm	5 mA	CQC cUL UL VDE	Triac	-40 C	110 °C	50 mA	1 kV/µs	100 mA
Vishay Semiconductor Opto Division VOT8025AB-V	6-SMD	800 V	5300 Vrms	Surface Mount	1	400 µA	6-SMD (5 Leads) Gull Wing				5 mA	CQC cUL UL VDE	Triac	-40 C	110 °C	50 mA	1 kV/µs	100 mA
Vishay Semiconductor Opto Division VOT8025AB	6-SMD	800 V	5300 Vrms	Surface Mount	1	400 µA	6-SMD Gull Wing				5 mA	CQC cUL UL VDE	Triac	-40 C	110 °C	50 mA	1 kV/µs	100 mA
