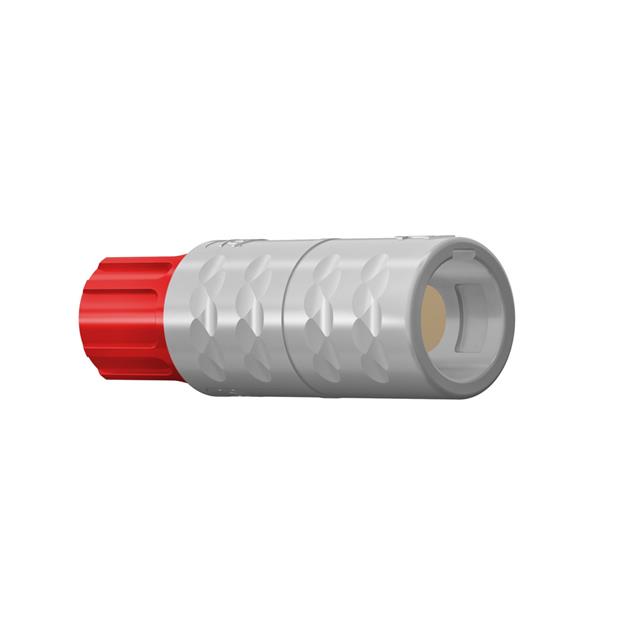

K11MC7-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 9P GOLD SLDR CUP
| Part | Current Rating (Amps) | Fastening Type | Contact Material | Number of Positions | Shielding | Color | Shell Material | Contact Finish - Mating | Applications | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Backshell Material, Plating | Connector Type | Insert Material | Primary Material | Shell Size - Insert | Mounting Type | Ingress Protection | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Cable Opening | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2.75 A | Detent Lock Push-Pull | Brass | 9 | Unshielded | Gray Yellow | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | |||
2.75 A | Detent Lock Push-Pull | Brass | 10 | Unshielded | Gray | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | |||
10 A | Detent Lock Push-Pull | Brass | 4 | Unshielded | Gray Green | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | |||
14 A | Detent Lock Push-Pull | Brass | 2 | Unshielded | Gray Red | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 0.157 in | 0.205 in | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | 4 mm 5.2 mm | ||||
2.5 A | Detent Lock Push-Pull | Brass | 14 | Unshielded | Gray | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | |||
3.85 A | Detent Lock Push-Pull | Brass | 8 | Unshielded | Blue Gray | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | |||
14 A | Detent Lock Push-Pull | Brass | 2 | Unshielded | Blue Gray | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 0.157 in | 0.205 in | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | 4 mm 5.2 mm | ||||
4.55 A | Detent Lock Push-Pull | Brass | 7 | Unshielded | Gray Yellow | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 0.106 in | 0.154 in | 2.7 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | 3.9 mm | |||
10 A | Detent Lock Push-Pull | Brass | 4 | Unshielded | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 6.5 mm | 0.209 in | 0.256 in | 5.3 mm | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | ||||
4.55 A | Detent Lock Push-Pull | Brass | 7 | Unshielded | Gray Green | Polysulfone (PSU) | Gold | Industrial Medical Military Testing Equipment & Measurement | 0.157 in | 0.205 in | Polysulfone (PSU) | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Plastic | 1 | Free Hanging (In-Line) | IP50 - Dust Protected | C | 120 °C | -50 °C | Backshell | 4 mm 5.2 mm |
