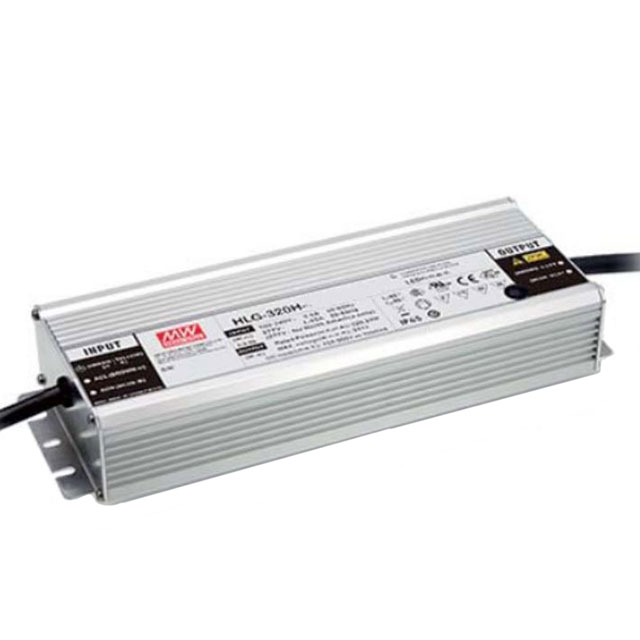

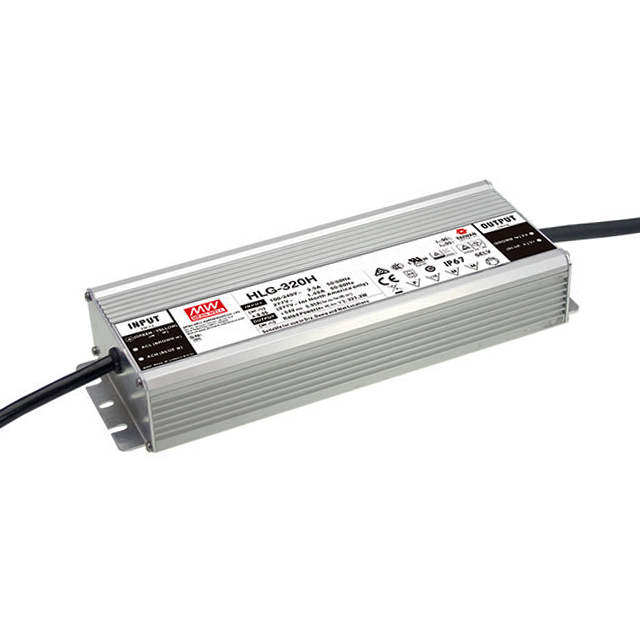

HLG-320H Series

Catalog

LED DVR CC/CV AC/DC 54V 5.95A

Part	Mounting Type	Voltage - Output	Number of Outputs	Termination Style	Topology	Ratings	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Features	Efficiency	Dimming	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. HLG-320H-54	Chassis Mount	54 V	1	Wire Leads	AC DC Converter	IP67	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	5.95 A	Constant Current Voltage	90 °C	-40 C	305 VAC	CB CCC CE cURus PSE RCM TUV	3750 VDC	90 VAC	321 W	OCP OTP OVP SCP	95 %
MEAN WELL USA Inc. HLG-320H-42AB	Chassis Mount	42 V	1	Wire Leads	AC DC Converter	IP65	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	7.65 A	Constant Current Voltage	90 °C	-40 C	305 VAC	CB CCC CE cURus EAC KC PSE RCM TUV	3750 VDC	90 VAC	321 W	OCP OTP OVP SCP	95 %

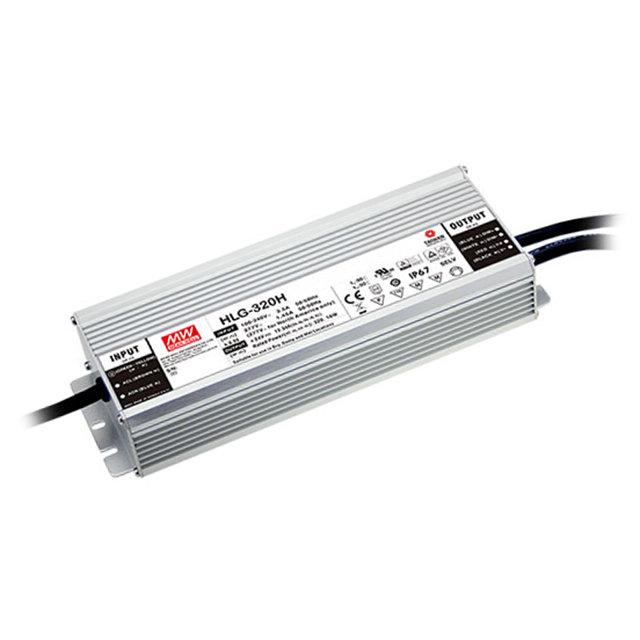

MEAN WELL USA Inc. HLG-320H-24B	Chassis Mount	24 V	1	Wire Leads	AC DC Converter	IP67	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	13.34 A	Constant Current Voltage	90 °C	-40 C	305 VAC	CB CCC CE cURus PSE RCM TUV	3750 VDC	90 VAC	320 W	OCP OTP OVP SCP	94.5 %	Analog PWM
MEAN WELL USA Inc. HLG-320H-20B	Chassis Mount	20 V	1	Wire Leads	AC DC Converter	IP67	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	15 A	Constant Current Voltage	90 °C	-40 C	305 VAC	CB CCC CE cURus PSE RCM TUV	3750 VDC	90 VAC	300 W	OCP OTP OVP SCP	94 %	Analog PWM

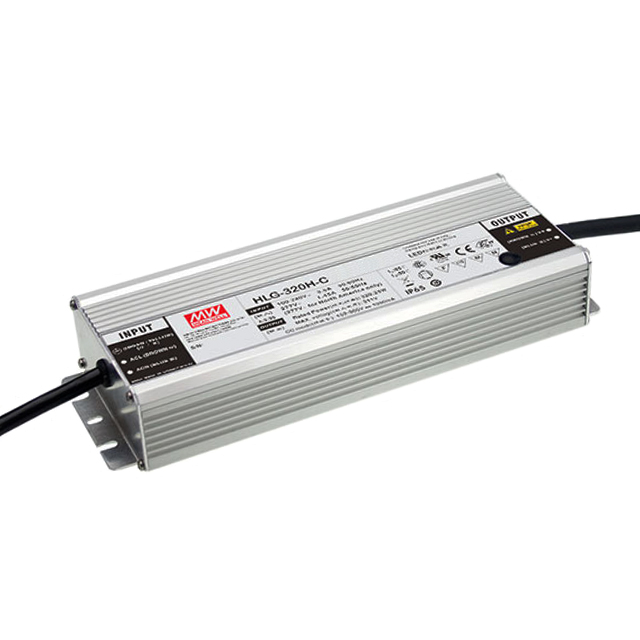

MEAN WELL USA Inc. HLG-320H-C700A	Chassis Mount		1	Wire Leads	AC DC Converter	IP65	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	700 mA	Constant Current	85 °C	-40 C	305 VAC	CB CCC CE cURus ENEC	3750 VDC	90 VAC	300 W	OTP OVP SCP	94 %		428 V	214 V
MEAN WELL USA Inc. HLG-320H-C2100DA	Chassis Mount		1	Wire Leads	AC DC Converter	IP67	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	2.1 A	Constant Current	85 °C	-40 C	305 VAC	CB CCC CE cURus ENEC	3750 VDC	90 VAC	319 W	OTP OVP SCP	94 %		152 V	76 V
MEAN WELL USA Inc. HLG-320H-C1400A	Chassis Mount		1	Wire Leads	AC DC Converter	IP65	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	1.4 A	Constant Current	85 °C	-40 C	305 VAC	CB CCC CE cURus ENEC	3750 VDC	90 VAC	321 W	OTP OVP SCP	94 %		229 V	114 V
MEAN WELL USA Inc. HLG-320H-C2800AB	Chassis Mount		1	Wire Leads	AC DC Converter	IP65	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	2.8 A	Constant Current	85 °C	-40 C	305 VAC	CB CCC CE cURus ENEC	3750 VDC	90 VAC	319 W	OTP OVP SCP	94 %		114 V	57 V
MEAN WELL USA Inc. HLG-320H-36AB	Chassis Mount	36 V	1	Wire Leads	AC DC Converter	IP65	43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	8.9 A	Constant Current Voltage	90 °C	-40 C	305 VAC	CB CCC CE cURus EAC KC PSE RCM TUV	3750 VDC	90 VAC	320 W	OCP OTP OVP SCP	95 %
MEAN WELL USA Inc. HLG-320H-30C	Chassis Mount		1	Wire Leads	AC DC Converter		43.8 mm	225.2 mm	1.72 in	90 mm	3.54 in	8.87 "	10.7 A	Constant Current Voltage	90 °C	-40 C	305 VAC	CB CCC CE cURus PSE RCM TUV	3750 VDC	90 VAC	321 W	OCP OTP OVP SCP	94.5 %		32 VDC	26 V
