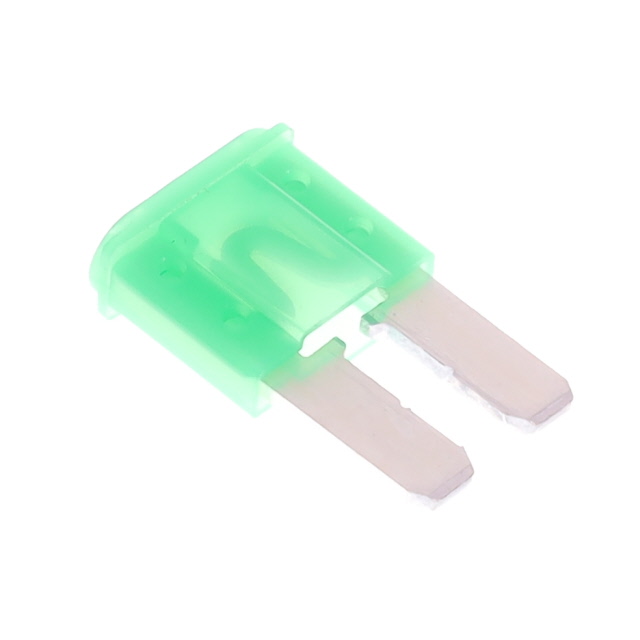

0327030.YX2S Series

Fuse - Micro2 Blade 32V Ag 30A 4000 pc

Catalog

Fuse - Micro2 Blade 32V Ag 30A 4000 pc

Part	Melting I˛t	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Fuse Type	Package / Case	Voltage Rating - DC	Melting I²t	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Color
LITTELFUSE 0327030.YX2S	1028	Requires Holder	0.358 "	9.1 mm	3.8 mm	0.15 "	0.311 "	7.9 mm	Automotive	Blade Micro	32 V	1028	125 °C	-40 C	30 A	Green

Catalog

Fuse - Micro2 Blade 32V Ag 30A 4000 pc

Description

This 30 A MICRO2TM blade fuse has proven its reliability in polluted, humid, and high-temperature environments. Its subminiature design makes the MICRO2 a go-to option for automakers looking to reduce vehicle weight without sacrificing circuit protection.
