91911 Series

Catalog

CONN HDR 9POS SMD GOLD

...

Part	Connector Type	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Mounting Type	Mated Stacking Heights	Height Above Board	Height Above Board

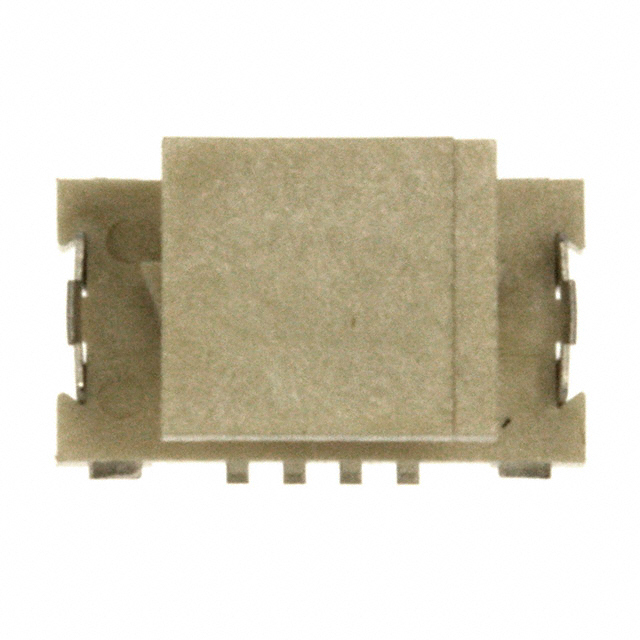

Amphenol ICC (FCI) 91911-31209LF	Header Center Strip Contacts	0.039 in	1 mm	9	0.048 "	1.22 mm	Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount
Amphenol ICC (FCI) 91911-21151	Header Center Strip Contacts	0.039 in	1 mm	51			Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	4.15 mm	0.86 mm	0.034 "
Amphenol ICC (FCI) 91911-31525	Header Center Strip Contacts	0.039 in	1 mm				Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	7 mm	3.72 mm	0.147 in
Amphenol ICC (FCI) 91911-32125LF	Header Center Strip Contacts	0.039 in	1 mm				Board Guide Solder Retention	30 Áin	0.76 Ám	2	Gold or Gold GXT™	Surface Mount	4.15 mm	0.86 mm	0.034 "
Amphenol ICC (FCI) 91911-21341LF	Header Center Strip Contacts	0.039 in	1 mm	41			Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	5 mm	1.73 mm	0.068 in
Amphenol ICC (FCI) 91911-31111	Header Center Strip Contacts	0.039 in	1 mm	11			Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	4.15 mm	0.86 mm	0.034 "

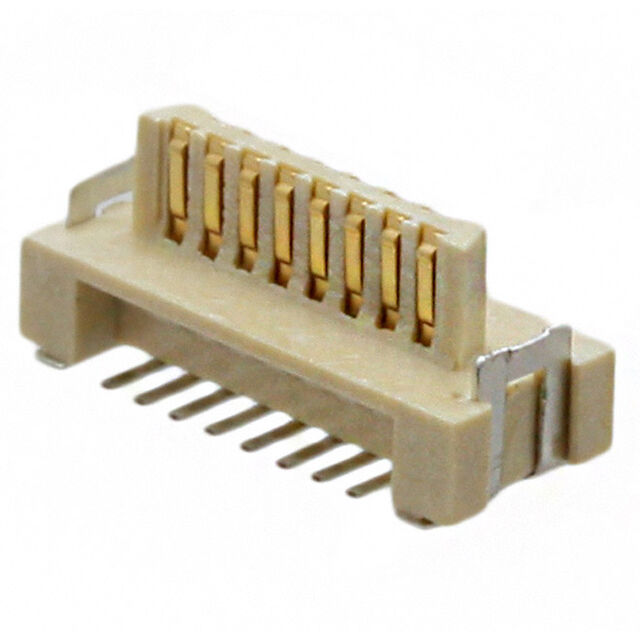

Amphenol ICC (FCI) 91911-31415LF	Header Center Strip Contacts	0.039 in	1 mm	15	0.107 in	2.72 mm	Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	6 mm
Amphenol ICC (FCI) 91911-21221LF	Header Center Strip Contacts	0.039 in	1 mm	21	0.048 "	1.22 mm	Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount
Amphenol ICC (FCI) 91911-31309	Header Center Strip Contacts	0.039 in	1 mm	9			Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	5 mm	1.73 mm	0.068 in
Amphenol ICC (FCI) 91911-31169	Header Center Strip Contacts	0.039 in	1 mm	69			Board Guide Solder Retention	15 µin	0.38 µm	2	Gold or Gold GXT™	Surface Mount	4.15 mm	0.86 mm	0.034 "
