6430-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

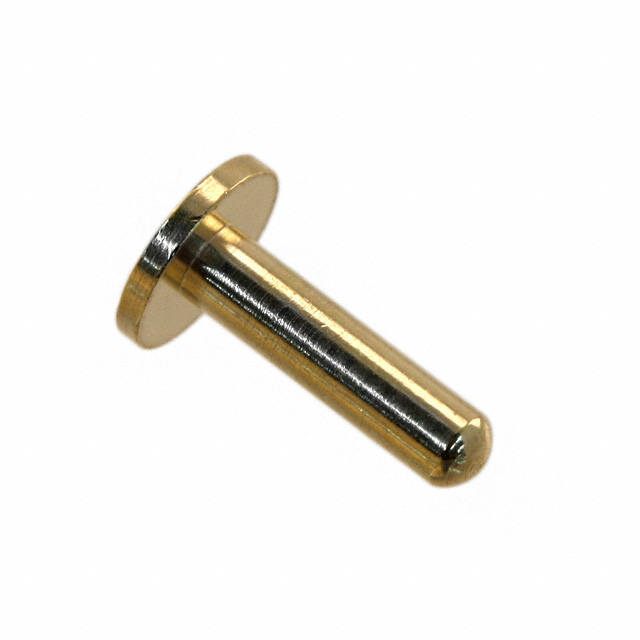

CONN PC PIN CIRC
| Part | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Terminal Style | Insulation | Contact Material | Termination | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.48 mm | 0.019 in | 0.145 in | 3.68 mm | PC Pin | 0.035 " | 0.89 mm | 3.33 mm | 0.131 in | 0.053 in | 1.35 mm | 0.025 in | 0.64 mm | Through Hole | Single End | Non-Insulated | Brass Alloy | Press-Fit | Gold | 0.028 in | 0.71 mm | 0.25 Ám | 10 Áin |
