TPS562219A Series

17V Input, 2A Synchronous Step-Down Regulator in SOT-23 With Power-good and Soft-start

Catalog

17V Input, 2A Synchronous Step-Down Regulator in SOT-23 With Power-good and Soft-start

Part	Voltage - Output (Min/Fixed)	Output Configuration	Number of Outputs	Frequency - Switching	Mounting Type	Package / Case	Function	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Topology	Outputs and Type	Outputs and Type	Main Purpose	Board Type	Voltage - Output	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Supplied Contents
Texas Instruments TPS562219DDFT	0.76 V	Positive	1	650 kHz	Surface Mount	SOT-23-8 Thin TSOT-23-8	Step-Down	7 V	4.5 V	2 A	17 V	85 °C	-40 °C	TSOT-23-8	Adjustable	Buck
Texas Instruments TPS562219DDFR	0.76 V	Positive	1	650 kHz	Surface Mount	SOT-23-8 Thin TSOT-23-8	Step-Down	7 V	4.5 V	2 A	17 V	85 °C	-40 °C	TSOT-23-8	Adjustable	Buck
Texas Instruments TPS562219ADDFR	0.76 V	Positive	1	650 kHz	Surface Mount	SOT-23-8 Thin TSOT-23-8	Step-Down	7 V	4.5 V	2 A	17 V	85 °C	-40 °C	TSOT-23-8	Adjustable	Buck

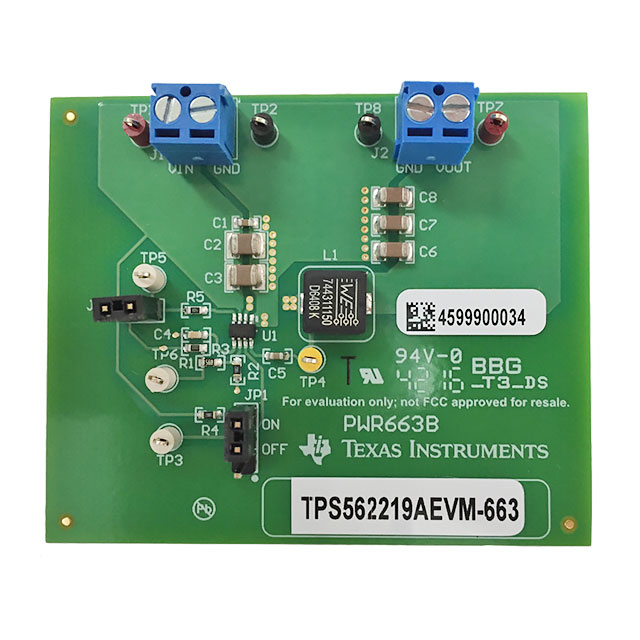

Texas Instruments TPS562219AEVM-663				650 kHz						2 A							Non-Isolated	1	DC/DC Step Down	Fully Populated	1.05 V	Buck	17 V	4.5 V	TPS562219A	Board(s)
Texas Instruments TPS562219EVM-663				650 kHz						2 A							Non-Isolated	1	DC/DC Step Down	Fully Populated		Buck	17 V	4.5 V	TPS562219	Board(s)

Catalog

17V Input, 2A Synchronous Step-Down Regulator in SOT-23 With Power-good and Soft-start

Key Features

• TPS562219A: 2-A Converter With Integrated 133-mΩ and 80-mΩ FETsTPS563219A: 3-A Converter With Integrated 68-mΩ and 39-mΩ FETsD-CAP2™ Mode Control with 650-kHz Switching FrequencyInput Voltage Range: 4.5 V to 17 VOutput Voltage Range: 0.76 V to 7 V650-kHz Switching FrequencyLow Shutdown Current Less than 10 µA1% Feedback Voltage Accuracy (25°C)Startup from Pre-Biased Output VoltageCycle By Cycle Overcurrent LimitHiccup-mode Under Voltage ProtectionNon-latch OVP, UVLO and TSD ProtectionsAdjustable Soft StartPower Good OutputTPS562219A: 2-A Converter With Integrated 133-mΩ and 80-mΩ FETsTPS563219A: 3-A Converter With Integrated 68-mΩ and 39-mΩ FETsD-CAP2™ Mode Control with 650-kHz Switching FrequencyInput Voltage Range: 4.5 V to 17 VOutput Voltage Range: 0.76 V to 7 V650-kHz Switching FrequencyLow Shutdown Current Less than 10 µA1% Feedback Voltage Accuracy (25°C)Startup from Pre-Biased Output VoltageCycle By Cycle Overcurrent LimitHiccup-mode Under Voltage ProtectionNon-latch OVP, UVLO and TSD ProtectionsAdjustable Soft StartPower Good Output

Description

The TPS562219A and TPS563219A are simple, easy-to-use, 2-A, 3-A synchronous step-down converters in 8 pin SOT-23 package. The devices are optimized to operate with minimum external component counts and optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The devices always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinuous conduction mode . The TPS562219A and TPS563219A are available in a 8-pin 1.6 × 2.9 (mm) SOT (DDF) package, and specified from –40°C to 85°C of ambient temperature. The TPS562219A and TPS563219A are simple, easy-to-use, 2-A, 3-A synchronous step-down converters in 8 pin SOT-23 package. The devices are optimized to operate with minimum external component counts and optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The devices always operate in continuous conduction mode, which reduces the output ripple voltage in light load compared to discontinuous conduction mode . The TPS562219A and TPS563219A are available in a 8-pin 1.6 × 2.9 (mm) SOT (DDF) package, and specified from –40°C to 85°C of ambient temperature.
