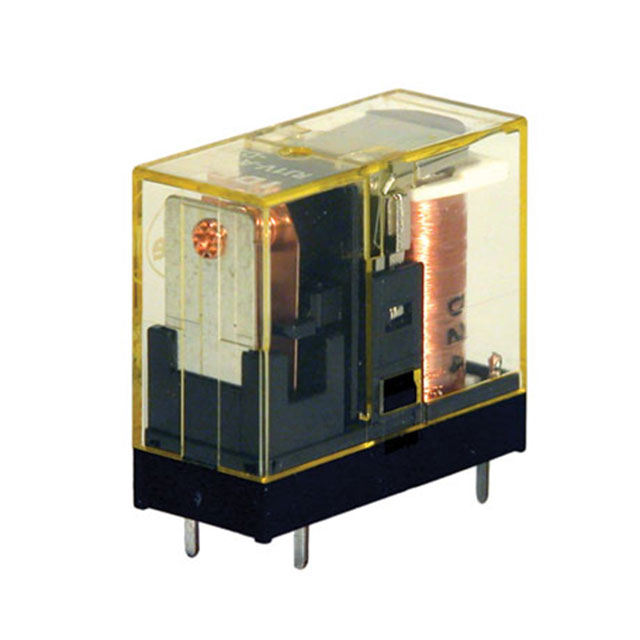

RJ1V-A Series
Manufacturer: IDEC
Beta
⌘K
POWER RELAY, SPST-NO, THROUGH HOLE, AC
| Part | Coil Resistance | Approval Agency | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Must Operate Voltage | Contact Rating (Current) | Termination Style | Seal Rating | Coil Voltage | Must Release Voltage | Relay Type | Coil Current | Contact Material | Switching Voltage | Release Time | Operate Time | Contact Form | Coil Voltage [Min] | Coil Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 25.57 kOhms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 192 VAC | 12 A | PC Pin | Sealed - Flux Protection | 240 VAC/DC | 72 VAC/DC | General Purpose | 3.7 mA | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | ||
IDEC | 25.57 kOhms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 192 VAC | 16 A | PC Pin | Sealed - Flux Protection | 240 VAC/DC | 72 VAC/DC | General Purpose | 3.7 mA | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | ||
 IDEC | 1.08 kOhms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 16.8 VDC | 12 A | PC Pin | 24 VDC | 2.4 VDC | General Purpose | 22.1 mA | Silver Nickel (AgNi) | 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | |||
 IDEC | 243 Ohms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 19.2 VAC | 16 A | PC Pin | Sealed - Flux Protection | 24 VAC | 7.2 VAC | General Purpose | 0.0375 A | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | ||
IDEC | 18.87 kOhms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 12 A | PC Pin | Sealed - Flux Protection | General Purpose | 5.3 mA | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | 100 VDC | 110 VDC | |||
IDEC | 6.4 kOhms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 96 VAC | 12 A | PC Pin | 120 VAC | 36 VAC | General Purpose | 7.5 mA | Silver Tin Indium (AgSnIn) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | |||
IDEC | 67.9 Ohms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 4.2 VDC | 12 A | PC Pin | Sealed - Flux Protection | 0.6 VDC | General Purpose | 88.3 mA | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | |||
IDEC | 243 Ohms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 19.2 VAC | 12 A | PC Pin | Sealed - Flux Protection | 24 VAC | 7.2 VAC | General Purpose | 0.0375 A | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | ||
IDEC | 271 Ohms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 8.4 VDC | 16 A | PC Pin | Sealed - Flux Protection | 12 VDC | 1.2 VDC | General Purpose | 44.2 mA | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | ||
IDEC | 18.87 kOhms | CE CSA cURus VDE | Non Latching | 70 °C | -40 C | Through Hole | 16 A | PC Pin | Sealed - Flux Protection | General Purpose | 5.3 mA | Silver Nickel (AgNi) | 125 VDC 250 VAC | 10 ms | 15 ms | SPST-NO (1 Form A) | 100 VDC | 110 VDC |
