9860 Series
Manufacturer: Belden Inc.
Beta
⌘K

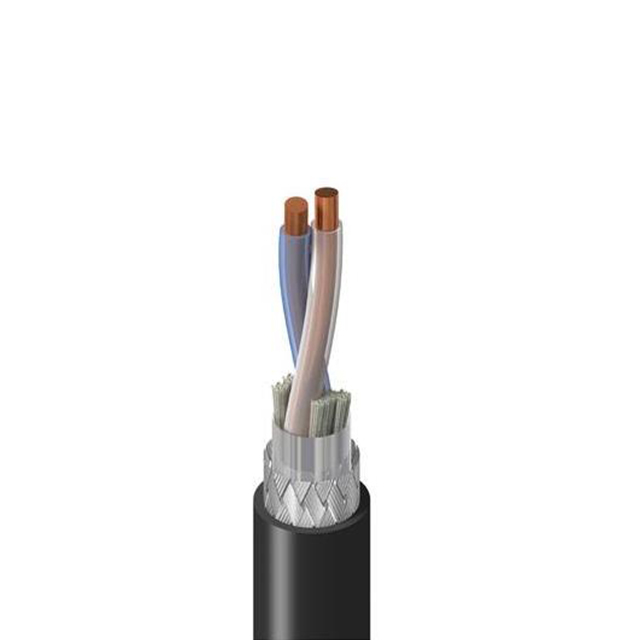

CABLE TWINAXIAL 16AWG 2000'
| Part | Conductor Material | Shield Coverage | Dielectric Material | VoP, Velocity of Propagation | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Impedance | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Cable Type | Shield Type | Jacket (Insulation) Material | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 90 % 100 % | Foam Polyethylene (FPE) | 78 | Aluminum Copper Tinned | 4.09 mm | 0.161 in | -20 ░C | 60 °C | Black | 124 Ohms | 11.18 mm | 0.44 " | Solid | Twinaxial | Braid Foil | Poly-Vinyl Chloride (PVC) | 16 AWG | 2000 ft | 609.6 m |
