835-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 70POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Material Flammability Rating	Termination	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Type	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)
Mill-Max Manufacturing Corp. 835-43-070-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	70
Mill-Max Manufacturing Corp. 835-43-038-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	38

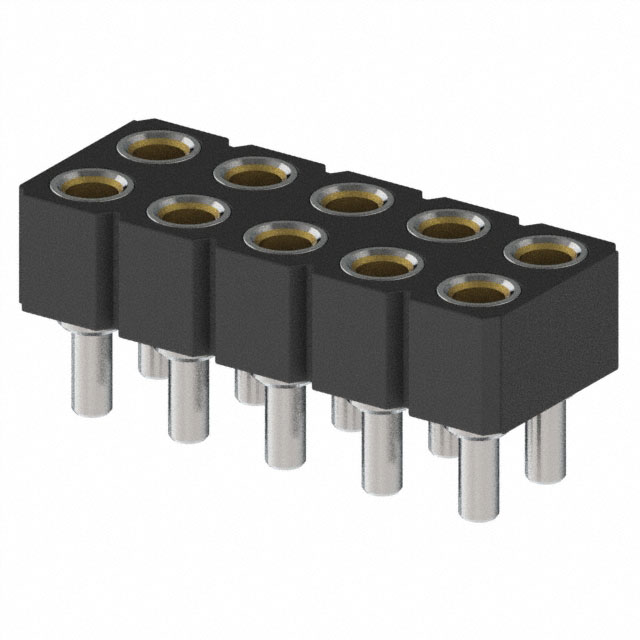

Mill-Max Manufacturing Corp. 835-43-010-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	10
Mill-Max Manufacturing Corp. 835-43-020-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	20
Mill-Max Manufacturing Corp. 835-43-066-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	66
Mill-Max Manufacturing Corp. 835-43-018-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	18
Mill-Max Manufacturing Corp. 835-43-042-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	42

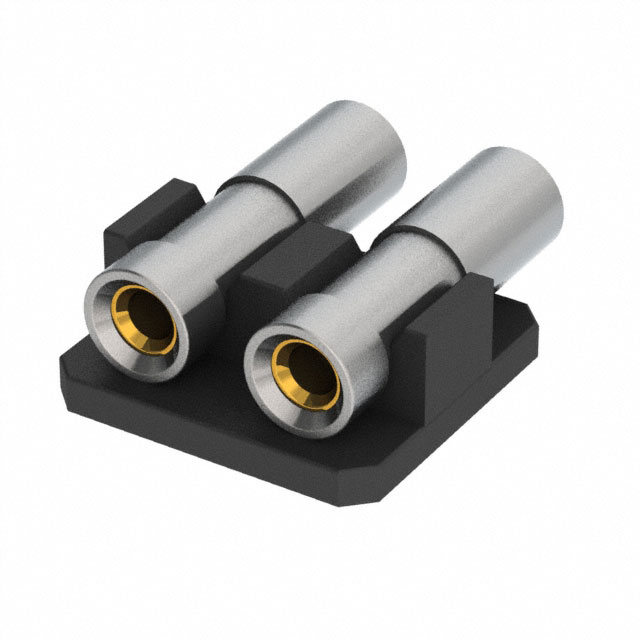

Mill-Max Manufacturing Corp. 835-43-002-40-030001	Circular	Nylon 4/6 Polyamide (PA46)	Beryllium Copper	200 µin	5.08 µm	Push-Pull					Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Right Angle Surface Mount	Black	Receptacle							Gold	Female Socket	2	1	2.1 mm	0.083 in	3 A
Mill-Max Manufacturing Corp. 835-43-062-10-001000	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	200 µin	5.08 µm	Push-Pull	2.03 mm	0.08 in	2	UL94 V-0	Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Through Hole	Black	Receptacle Pass Through	-55 C	125 °C	0.1 in	2.54 mm	0.13 in	3.3 mm	Gold	Female Socket	62

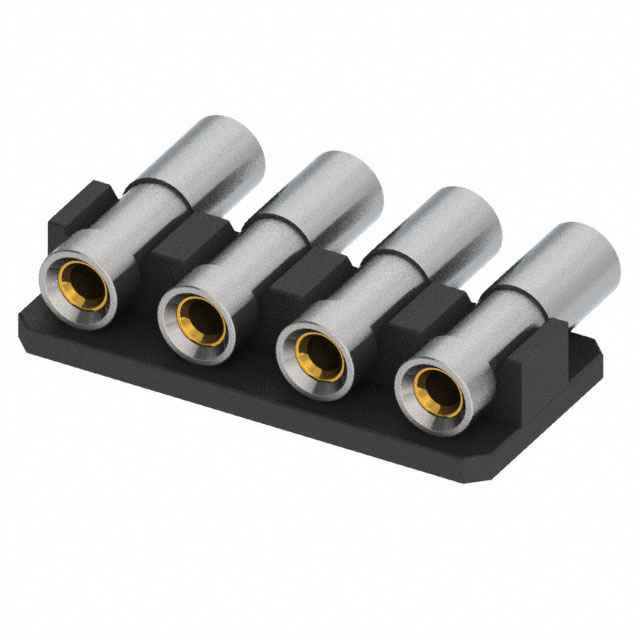

Mill-Max Manufacturing Corp. 835-43-004-40-030001	Circular	Nylon 4/6 Polyamide (PA46)	Beryllium Copper	200 µin	5.08 µm	Push-Pull					Solder	Tin	0.1 "	2.54 mm	All	0.76 Ám	30 Áin	Right Angle Surface Mount	Black	Receptacle							Gold	Female Socket	4	1	2.1 mm	0.083 in	3 A
