96576 Series

Manufacturer: Pflitsch

Catalog

CABLE FEED 35.05-41.91MM M50

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material	Ingress Protection	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Thread Length	Thread Length	Color	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Includes	Outside Cable Diameter (Min) [Min]
Pflitsch 96576.0	-20 ░C	100 °C	Polyamide (PA) Nylon	IP68 - Dust Tight Waterproof NEMA 4X	1.969 in	50 mm	35.05 mm	1.38 in	M50x1.5	1.65 in	41.91 mm	0.39 in	9.91 mm	Light Gray	Cable Feedthrough
Pflitsch 96576.7/15	-60 °C	500 °C	Stainless Steel		1.969 in	50 mm	31 mm		M50x1.5					Silver	Cable Feedthrough	1.654 in	42 mm	Sealing Ring	1.22 in

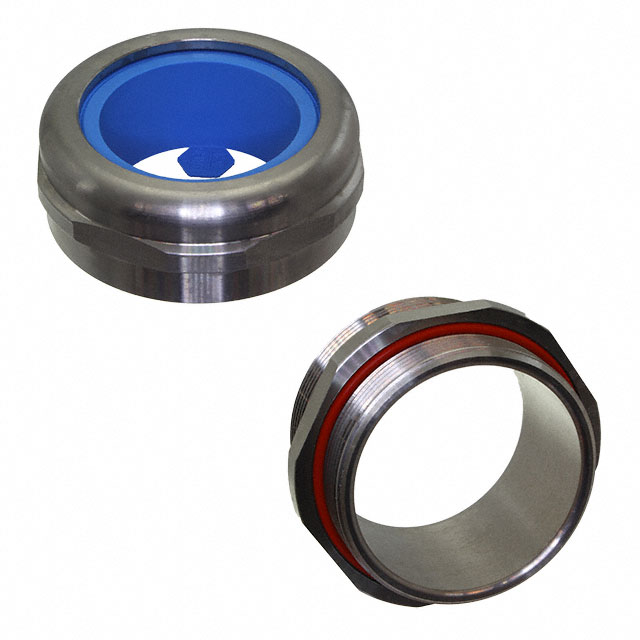

Pflitsch 96576.7	-60 °C	500 °C	Stainless Steel	IP68 - Dust Tight Waterproof NEMA 4X	1.969 in	50 mm	35.05 mm	1.38 in	M50x1.5	1.65 in	41.91 mm	0.39 in	9.91 mm	Silver	Cable Feedthrough			Sealing Ring

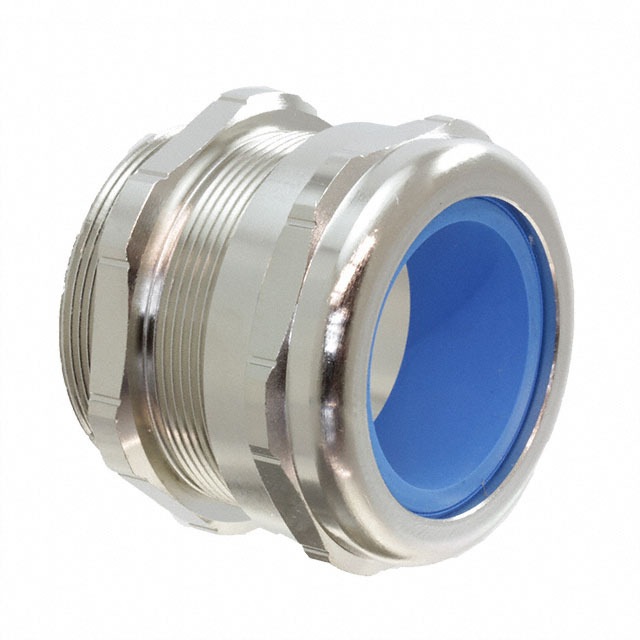

Pflitsch 96576.6	-40 C	300 °C	Brass Nickel Plated	IP68 - Dust Tight Waterproof NEMA 4X	1.969 in	50 mm	35.05 mm	1.38 in	M50x1.5	1.65 in	41.91 mm	0.39 in	9.91 mm	Silver	Cable Feedthrough			Sealing Ring
Pflitsch 96576.6/15	-40 C	300 °C	Brass Nickel Plated		1.969 in	50 mm	31 mm		M50x1.5					Silver	Cable Feedthrough	1.654 in	42 mm	Sealing Ring	1.22 in
