505448 Series

Manufacturer: Molex

Catalog

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, DUAL ROW, RIGHT-ANGLE, SURFACE MOUNT, TIN-BISMUTH PLATING, POSITIVE LOCK, 8 CIRCUITS, BLACK

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Material	Style	Number of Positions	Shrouding	Features	Voltage Rating	Mounting Type	Number of Positions Loaded	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Current Rating (Amps)	Contact Material	Contact Shape	Number of Rows [custom]	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

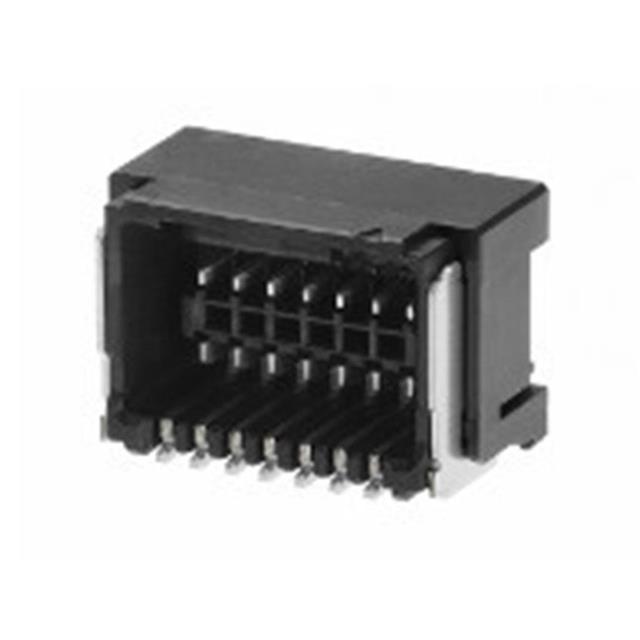

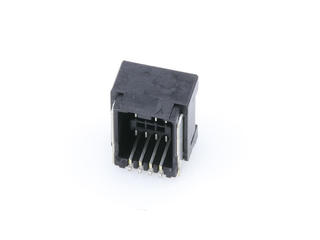

Molex 5054480871	General Purpose Industrial Lighting	39.4 çin	1 çm	Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	8	Shrouded - 4 Wall	Pick and Place Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0	39.4 µin	1 µm	Tin	Solder	0.049 in	1.25 mm	Header	Varies by Wire Gauge	Brass	Square	2
Molex 5054483891				Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	38	Shrouded - 4 Wall	Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0			Tin	Solder	0.049 in	1.25 mm	Header		Brass	Square	2	Gold	3.94 µin	0.1 µm	1.5 A
Molex 5054482271	General Purpose Industrial Lighting	39.4 çin	1 çm	Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	22	Shrouded - 4 Wall	Pick and Place Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0	39.4 µin	1 µm	Tin	Solder	0.049 in	1.25 mm	Header	Varies by Wire Gauge	Brass	Square	2
Molex 5054483851
Molex 5054482871	General Purpose Industrial Lighting	39.4 çin	1 çm	Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	28	Shrouded - 4 Wall	Pick and Place Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0	39.4 µin	1 µm	Tin	Solder	0.049 in	1.25 mm	Header	Varies by Wire Gauge	Brass	Square	2

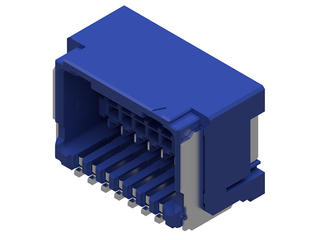

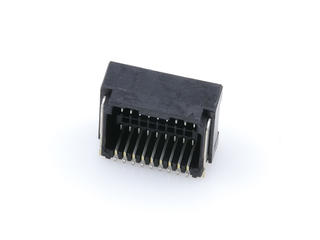

Molex 5054481891	General Purpose Industrial Lighting	3.94 Áin	0.1 Ám	Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	18	Shrouded - 4 Wall	Pick and Place Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0			Gold	Solder	0.049 in	1.25 mm	Header	Varies by Wire Gauge	Brass	Square	2	Gold	3.94 µin	0.1 µm
Molex 5054482074		39.4 çin	1 çm	Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	20	Shrouded - 4 Wall		50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Blue	0.352 in	8.95 mm	UL94 V-0	39.4 µin	1 µm	Tin-Bismuth	Solder	0.049 in	1.25 mm	Header	Varies by Wire Gauge	Brass	Rectangular	2	Tin-Bismuth
Molex 5054482231				Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	22	Shrouded - 4 Wall	Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0			Tin	Solder	0.049 in	1.25 mm	Header		Brass	Square	2	Gold			1.5 A	0.38 µm	15 µin
Molex 5054482091	General Purpose Industrial Lighting	3.94 Áin	0.1 Ám	Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	20	Shrouded - 4 Wall	Pick and Place Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0			Gold	Solder	0.049 in	1.25 mm	Header	Varies by Wire Gauge	Brass	Square	2	Gold	3.94 µin	0.1 µm
Molex 5054482691				Male Pin	Nylon Polyamide (PA)	Board to Cable/Wire	26	Shrouded - 4 Wall	Solder Retention	50 VAC	Right Angle Surface Mount	All	Latch Holder	-40 C	105 ░C	Black	0.352 in	8.95 mm	UL94 V-0			Tin	Solder	0.049 in	1.25 mm	Header		Brass	Square	2	Gold	3.94 µin	0.1 µm	1.5 A
