RCLAMP0504 Series
Manufacturer: Semtech Corporation
Beta
⌘K

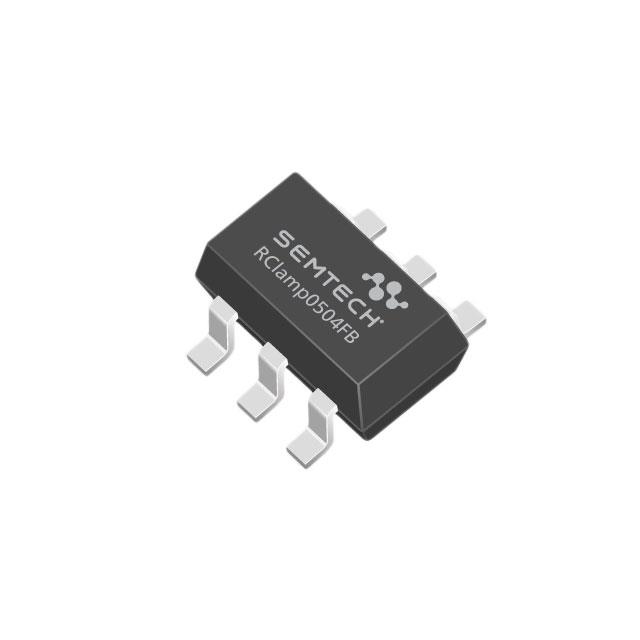

TVS DIODE 5VWM 23VC SC70-6
| Part | Power - Peak Pulse | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Type | Power Line Protection | Applications | Voltage - Reverse Standoff (Typ) | Capacitance @ Frequency | Voltage - Clamping (Max) @ Ipp [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Package / Case | Unidirectional Channels [custom] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 150 W | 6 A | 6 V | Steering (Rail to Rail) | Ethernet HDMI USB OTG | 5 V | 1 MHz 3 pF | 23 V | -55 ░C | 125 °C | Surface Mount | 6-TSSOP SC-88 SOT-363 | 4 | SC-70-6 | |
 Semtech Corporation | 150 W | 6 A | 6 V | Steering (Rail to Rail) | Ethernet Multimedia Card Interface USB OTG | 5 V | 1 MHz 1.9 pF | 18 V | -55 ░C | 125 °C | Surface Mount | 6-UFDFN Exposed Pad | 4 | SLP1616P6 (1.6x1.6) | |
 Semtech Corporation | 300 W | 12 A | 6 V | Steering (Rail to Rail) | General Purpose | 5 V | 1 MHz 3 pF | 25 V | -55 ░C | 125 °C | Surface Mount | 10-TFSOP 10-MSOP (0.118" 3.00mm Width) | 4 | 10-MSOP | |
 Semtech Corporation | 500 W | 28 A | 6 V | Steering (Rail to Rail) | USB | 5 V | 1.1 pF | 17.5 V | -55 ░C | 125 °C | Surface Mount | 6-TSSOP SC-88 SOT-363 | 4 | SC-70-6 |
