CFM61S360 Series

Catalog

AC/DC CONVERTER 36V 60W

Part	Line Regulation	Load Regulation	Voltage - Output 1 [custom]	Package / Case	Features	Applications	Mounting Type	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Type	Efficiency	Standard Number	Approval Agency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)

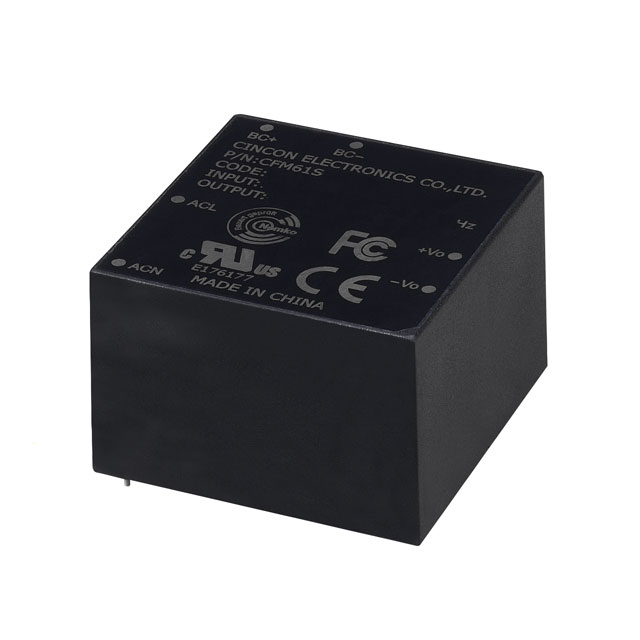

Cincon Electronics Co. LTD CFM61S360-E	1 %	±1%	36 V	6-DIP Module	Universal Input	ITE (Commercial)	Through Hole	1	264 VAC	90 VAC	Enclosed	89 %	62368-1	CE cURus FCC NEMKO	1.67 A	35.8 mm	54.3 mm	1.41 "	54.3 mm	2.14 "	2.14 "	-30 °C	70 °C	60 W

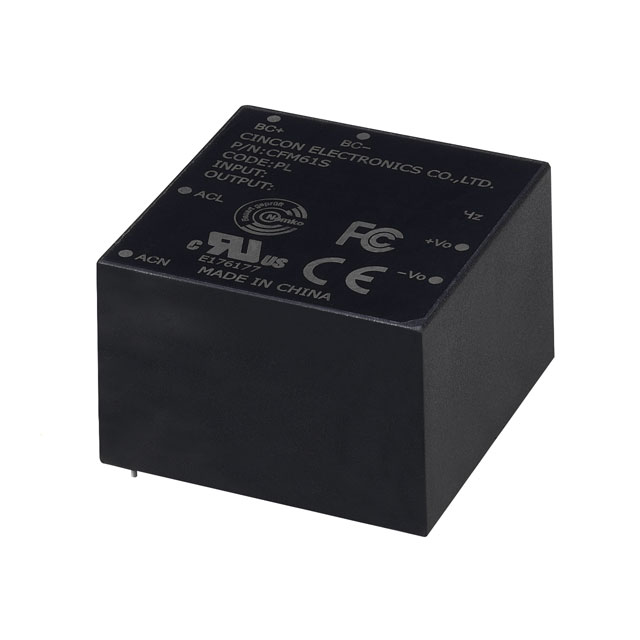

Cincon Electronics Co. LTD CFM61S360-E PL	1 %	±1%	36 V	6-DIP Module	Universal Input	ITE (Commercial)	Through Hole	1	264 VAC	90 VAC	Enclosed	89 %	62368-1	CE cURus FCC NEMKO	1.67 A	35.8 mm	54.3 mm	1.41 "	54.3 mm	2.14 "	2.14 "	-30 °C	70 °C	60 W

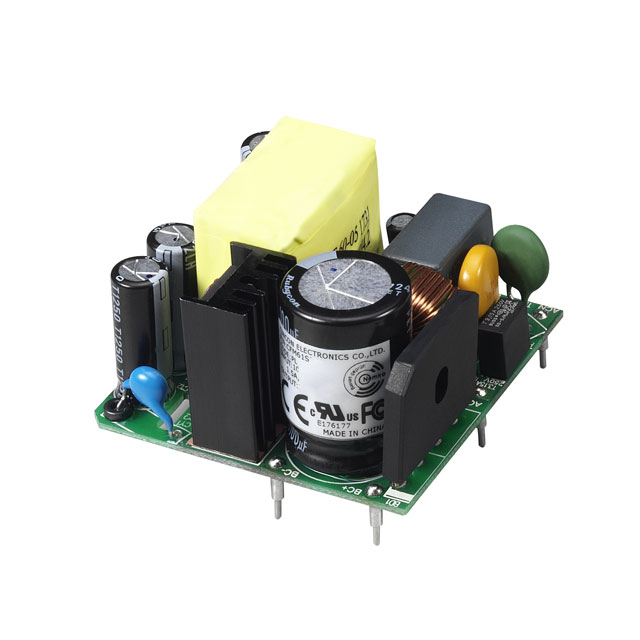

Cincon Electronics Co. LTD CFM61S360 PL	1 %	±1%	36 V	6-DIP Module	Universal Input	ITE (Commercial)	Through Hole	1	264 VAC	90 VAC	Open Frame	89 %	62368-1	CE cURus FCC NEMKO	1.67 A	34.2 mm	50.8 mm	1.35 in	50.8 mm	2 in	2 in	-30 °C	70 °C	60 W
