78229 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Contact Type	Mounting Type	Connector Type	Termination	Contact Shape	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Insulation Color	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 78229-206HLF	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	15 µin	0.38 µm	0.538 "	13.67 mm	UL94 V-0	Gold or Gold GXT™	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	6	0.1 in	2.54 mm

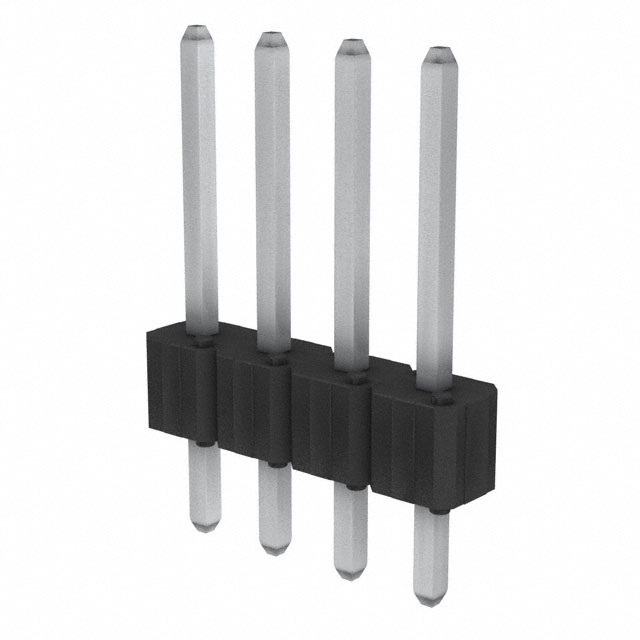

Amphenol ICC (FCI) 78229-404HLF	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	100 çin	2.54 çm	0.538 "	13.67 mm	UL94 V-0		0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	4	0.1 in	2.54 mm	Tin

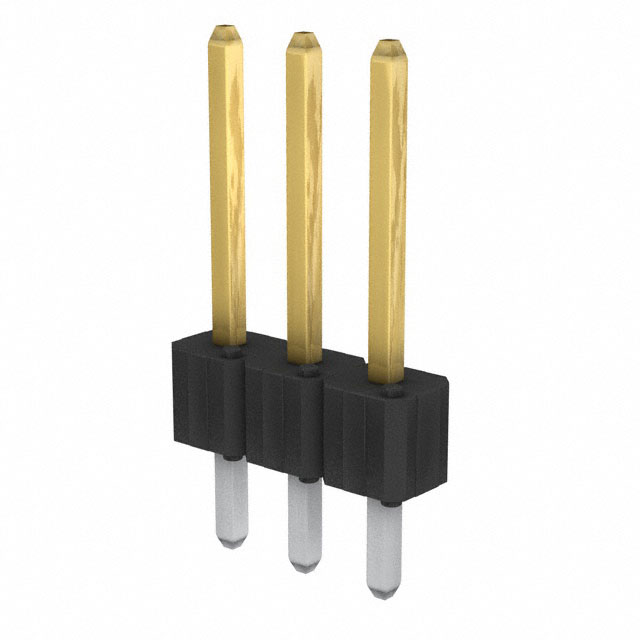

Amphenol ICC (FCI) 78229-103HTLF
Amphenol ICC (FCI) 78229-130HLF	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	30 Áin	0.76 Ám	0.538 "	13.67 mm	UL94 V-0	Gold or Gold GXT™	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	30	0.1 in	2.54 mm
Amphenol ICC (FCI) 78229-414HLF	Male Pin	Through Hole	Header	Solder	Square	All	1	100 çin	2.54 çm	0.538 "	13.67 mm	UL94 V-0		0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	14	0.1 in	2.54 mm	Tin	2.54 µm	100 µin
Amphenol ICC (FCI) 78229-103H	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	30 Áin	0.76 Ám	0.538 "	13.67 mm	UL94 V-0	Gold or Gold GXT™	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm		0.1 in	2.54 mm
Amphenol ICC (FCI) 78229-102	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	30 Áin	0.76 Ám	0.538 "	13.67 mm	UL94 V-0	Gold or Gold GXT™	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze		0.1 in	2.54 mm	2	0.1 in	2.54 mm
Amphenol ICC (FCI) 78229-206HTLF	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	15 µin	0.38 µm	0.538 "	13.67 mm	UL94 V-0	Gold or Gold GXT™	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	6	0.1 in	2.54 mm
Amphenol ICC (FCI) 78229-409HLF	Male Pin	Through Hole	Header	Solder	Square	All	1	100 çin	2.54 çm			UL94 V-0				Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Thermoplastic	0.1 in	2.54 mm	9	0.1 in	2.54 mm	Tin	2.54 µm	100 µin	0.318 in	8.08 mm
Amphenol ICC (FCI) 78229-212HLF	Male Pin	Through Hole	Header	Press-Fit Solder	Square	All	1	15 µin	0.38 µm	0.538 "	13.67 mm	UL94 V-0	Gold or Gold GXT™	0.12 in	3.05 mm	Push-Pull	Black	Unshrouded	0.318 "	8.08 mm	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.1 in	2.54 mm	12	0.1 in	2.54 mm
