10090926 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB HD PLUG 62P R/A SLDR
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Type | Contact Finish | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Material Flammability Rating | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Material, Finish | Termination | Number of Rows [custom] | Mounting Type | Current Rating (Amps) | Contact Type | Backset Spacing | Backset Spacing | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | 62 | UL94 V-0 | D-Sub High Density | C DC | 4 | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | |||

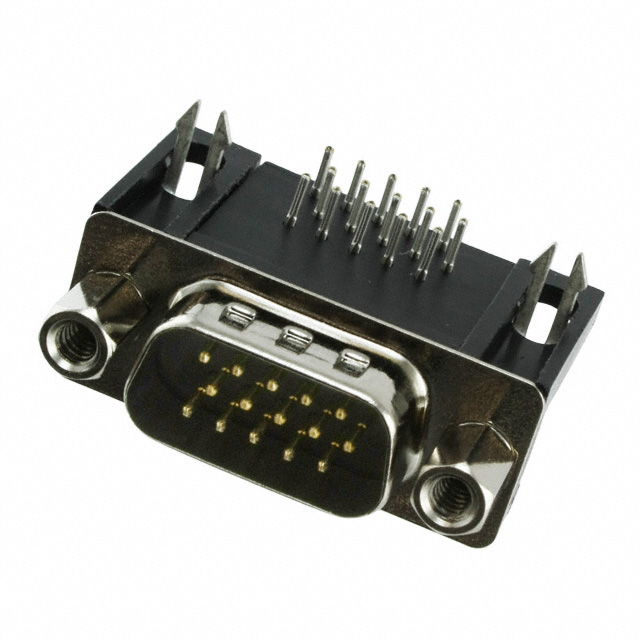

 Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | 4-40 Mating Side Female Screwlock | 15 | UL94 V-0 | D-Sub High Density | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | (DE E) High Density | 1 | Flash | ||||
 Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | Board Side (4-40) | 44 | UL94 V-0 | D-Sub High Density | 3 | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | Flash | |||||

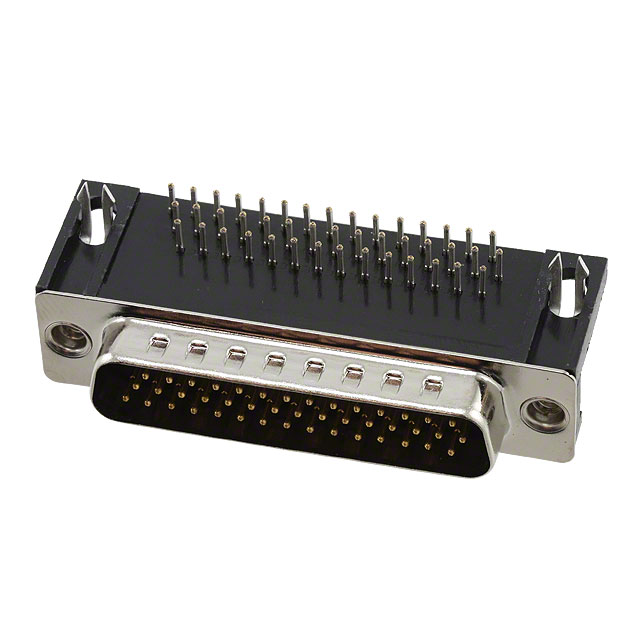

 Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | 4-40 Mating Side Female Screwlock | 44 | UL94 V-0 | D-Sub High Density | 3 | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | Flash | |||||
Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | Board Side (4-40) | 62 | UL94 V-0 | D-Sub High Density | C DC | 4 | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | Flash | ||||

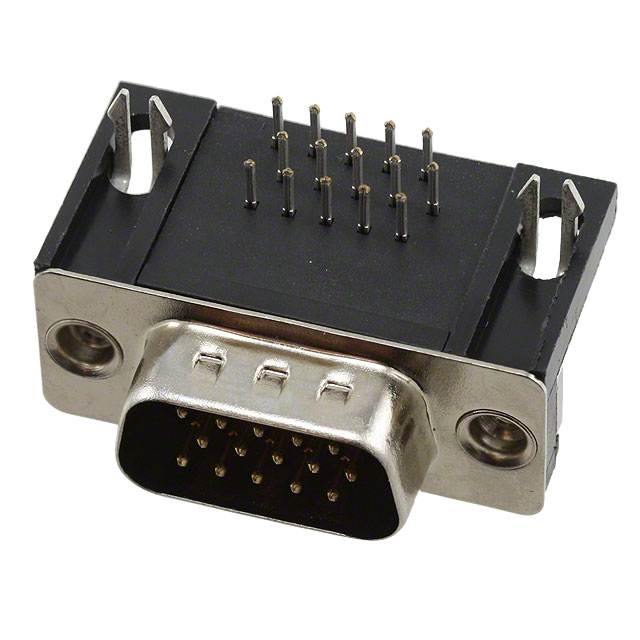

 Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | Board Side (4-40) | 15 | UL94 V-0 | D-Sub High Density | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | (DE E) High Density | 1 | Flash | ||||
Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | 26 | UL94 V-0 | D-Sub High Density | DA A | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | 2 | |||

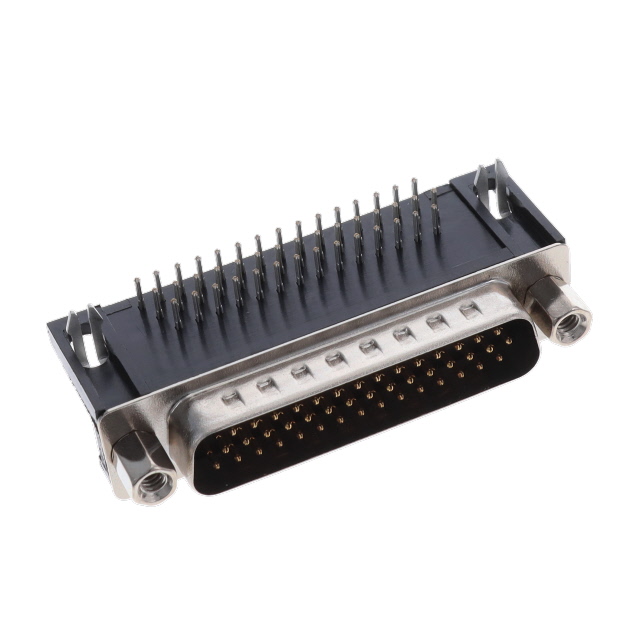

Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | 44 | UL94 V-0 | D-Sub High Density | 3 | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | ||||
Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | 4-40 Mating Side Female Screwlock | 62 | UL94 V-0 | D-Sub High Density | C DC | 4 | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | Flash | ||||
Amphenol ICC (FCI) | Black | Thermoplastic Glass Filled | Copper Alloy | -55 C | 105 ░C | 250 V | Plug Male Pins | Gold | Board Side (4-40) | 30 Áin | 0.76 Ám | 26 | UL94 V-0 | D-Sub High Density | DA A | Nickel Plated Steel | Solder | 3 | Board Edge Right Angle Through Hole | 2.5 A | Signal | 8.89 mm | 0.35 in | Board Lock Grounding Indents Mounting Brackets | 2 |
