T 3301 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Connector Type	Orientation	Ingress Protection	Color	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shielding	Mounting Type	Shell Finish	Number of Positions	Shell Material	Fastening Type	Voltage Rating	Shell Size - Insert	Primary Material	Material Flammability Rating	Insert Material	Contact Shape	Contact Size	Housing Color	Contact Type	Note	Type
Amphenol Tuchel Industrial T 3301 018	Plug Female Sockets	Keyed	IP40	Silver	10 A	Gold	-40 C	100 °C	Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded	250 V	M16-4	Metal

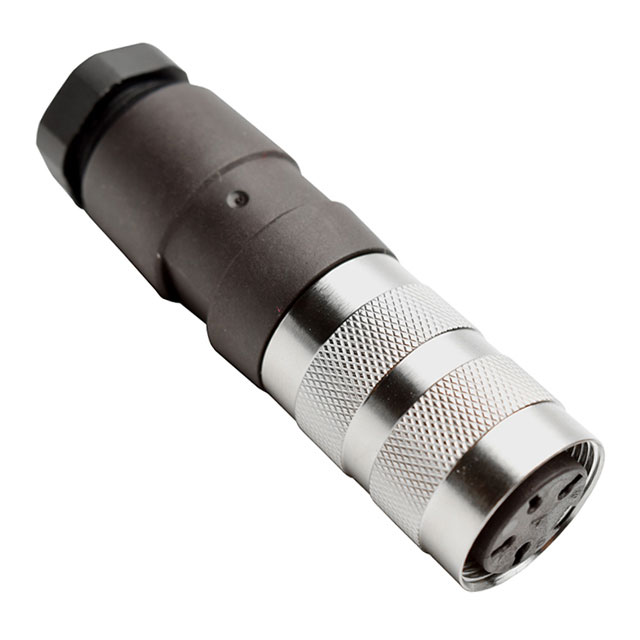

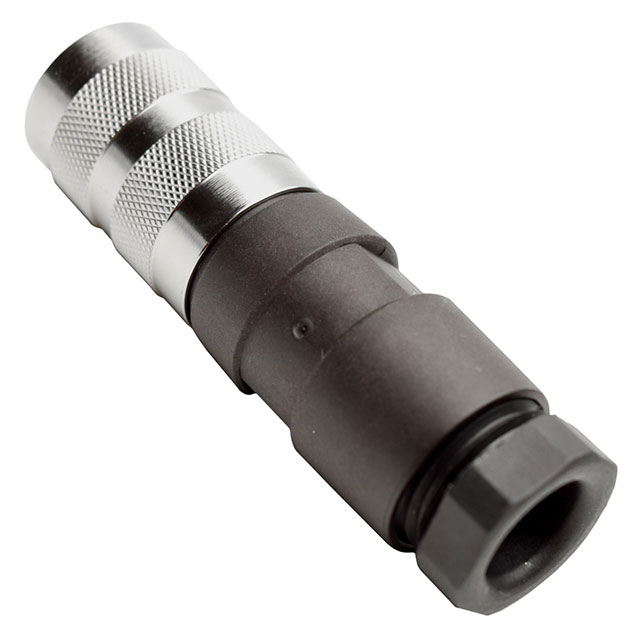

Amphenol Tuchel Industrial T 3301 002	Plug Female Sockets	Keyed	IP40	Silver	10 A	Silver	-40 C	100 °C	Cable Clamp Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded	250 V	M16-4	Metal

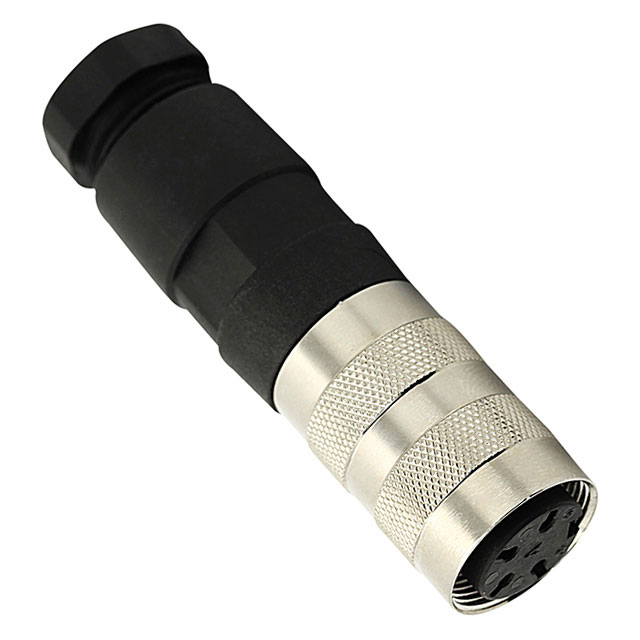

Amphenol Tuchel Industrial T 3301 028	Plug Female Sockets	Keyed	IP40	Silver	10 A	Gold	-40 C	100 °C	Cable Clamp Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded	250 V	M16-4	Metal

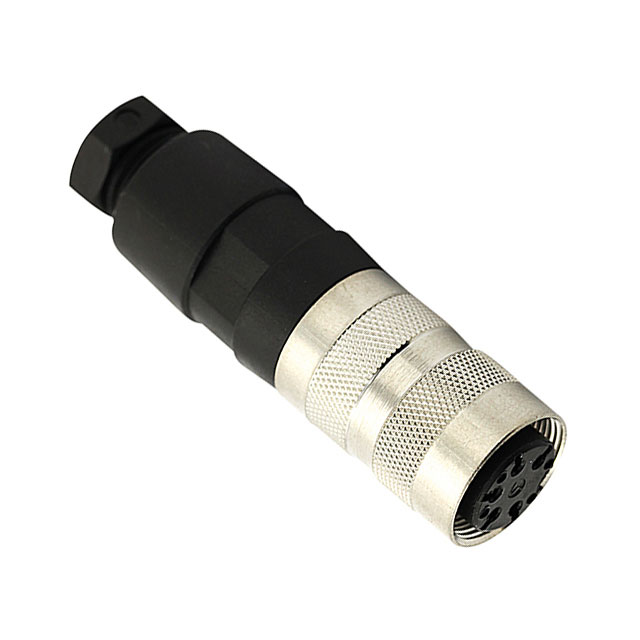

Amphenol Tuchel Industrial T 3301 004	Plug Female Sockets	Keyed	IP40	Silver	10 A	Silver	-40 C	100 °C	Cable Clamp Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded	250 V	M16-4	Metal
Amphenol Tuchel Industrial T 3301 013	Plug Female Sockets	Keyed	IP40	Silver	10 A	Silver	-40 C	100 °C	Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded	250 V	M16-4	Metal

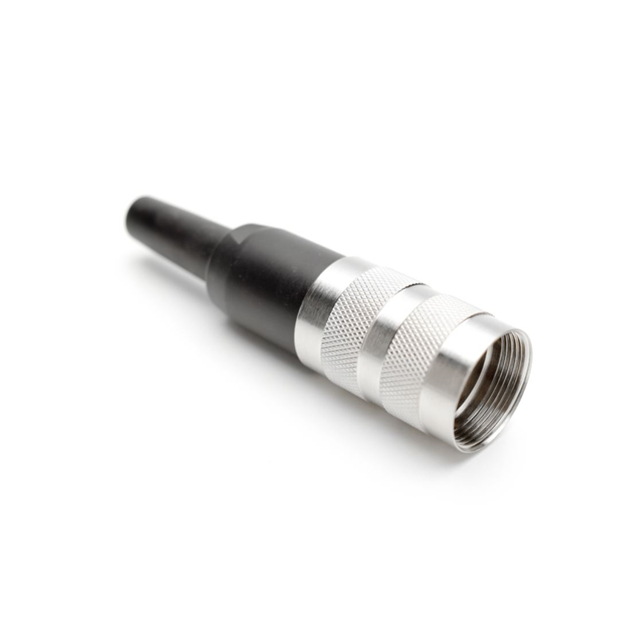

Amphenol Tuchel Industrial T 3301 551	Plug Housing	Keyed	IP40				-40 C	100 °C	Cable Clamp Coupling Nut Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded		M16-4		UL94 V-0	Thermoplastic	Circular	1.5 mm	Silver	Crimp	Contacts Not Included	For Female Sockets
Amphenol Tuchel Industrial T 3301 048	Plug Female Sockets	Keyed	IP40	Silver	10 A	Gold	-40 C	100 °C	Cable Clamp Strain Relief	Shielded	Free Hanging (In-Line)	Nickel	4	Die Cast	Threaded	250 V	M16-4	Metal
