925553 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

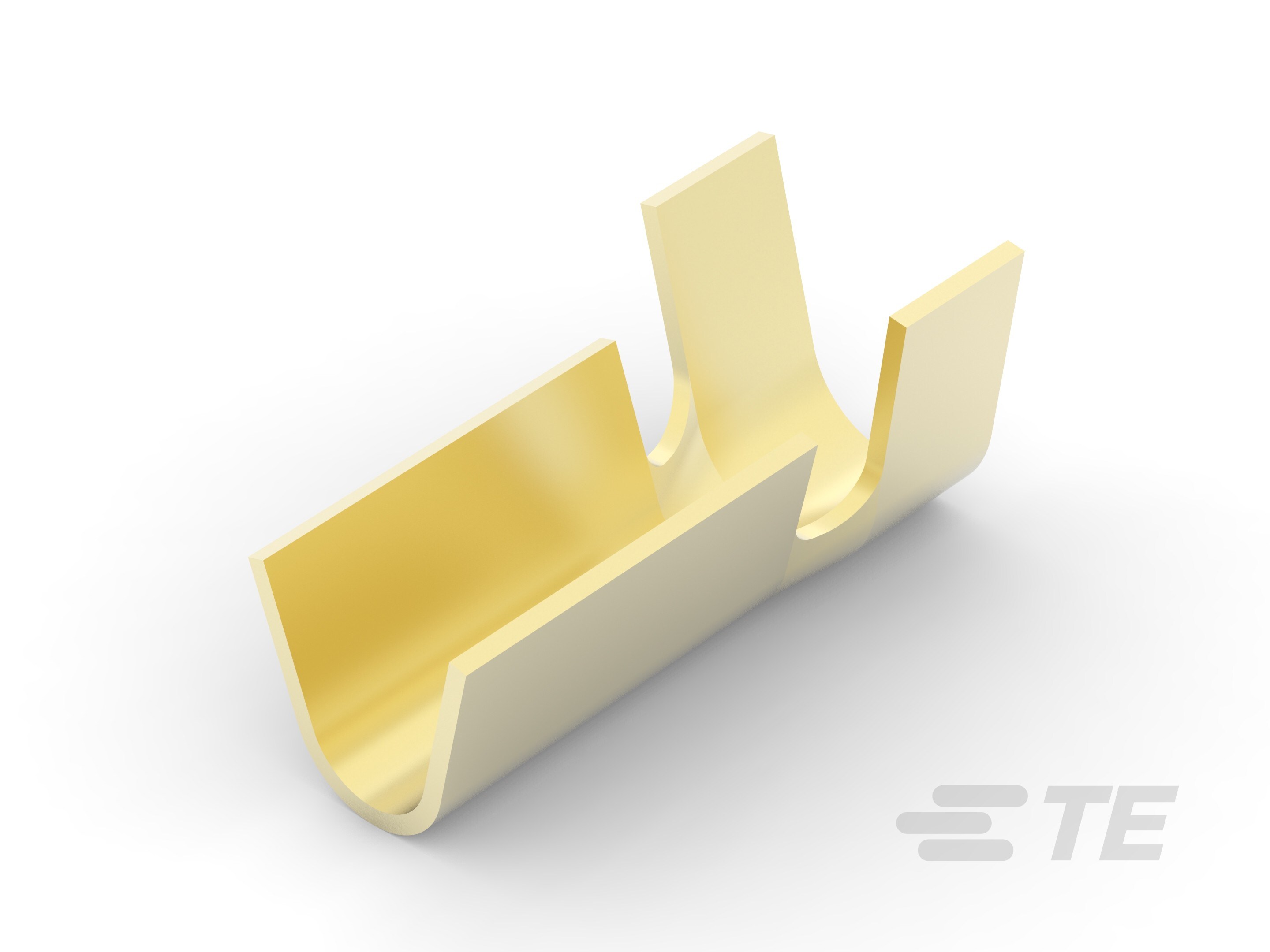

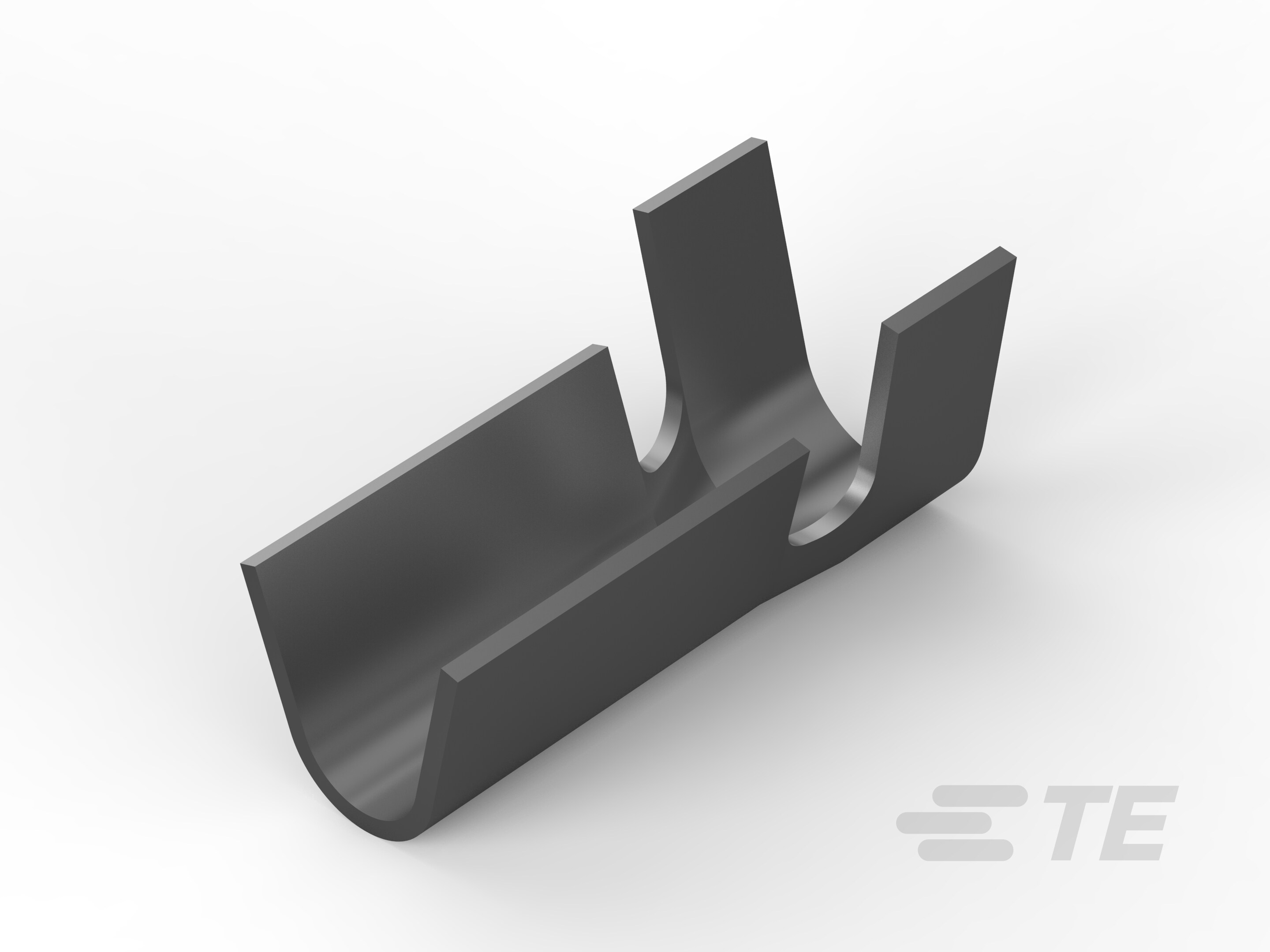

CONN TERM WTB 13.5-17AWG COPPER
| Part | Hole Diameter [diameter] | Hole Diameter [diameter] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Contact Material | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.106 in | 2.69 mm | Copper | 0.453 " | 11.51 mm | 3.81 mm | 0.15 in | 0.098 " | 2.5 mm | Tin | Through Board | 17 AWG | 14 AWG |
 TE Connectivity AMP Connectors | 0.106 in | 2.69 mm | 0.453 " | 11.51 mm | 3.81 mm | 0.15 in | 0.098 " | 2.5 mm | Brass | Through Board | 17 AWG | 14 AWG |
