V36SE Series

Catalog

DC-DC 36VIN 1-OUT 5V 10A 8-PIN 1/16-BRICK

Part	Approval Agency	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Standard Number	Number of Outputs	Voltage - Output 1	Supplier Device Package	Features	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Control Features	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Applications

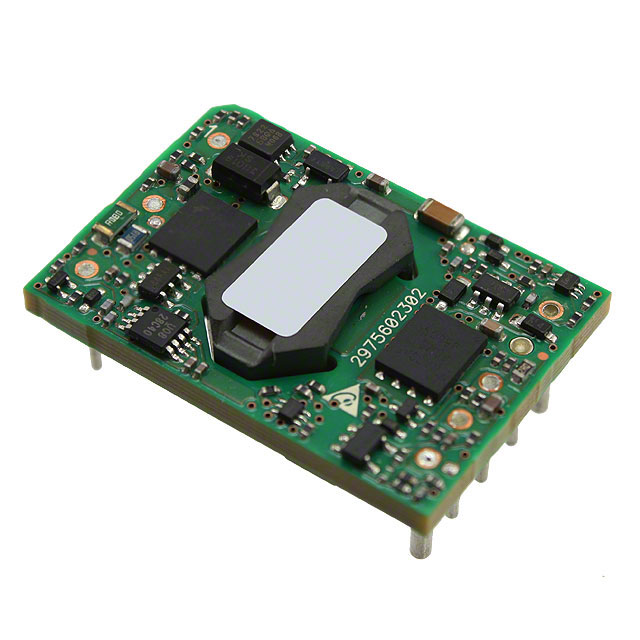

Delta Electronics V36SE05010NRFA	CSA EN IEC UL	2250 VDC	18 V	8-DIP Module 1/16 Brick	60950-1 62368-1	1	5 V	Sixteenth Brick	OCP OTP OVP Remote On/Off UVLO	91 %	1.3 in	22.9 mm	0.9 in	33 mm	9.4 mm	0.37 in	Isolated Module	75 V	Through Hole	10 A	Active Low Enable	50 W	-40 C	119 °C	ITE (Commercial)

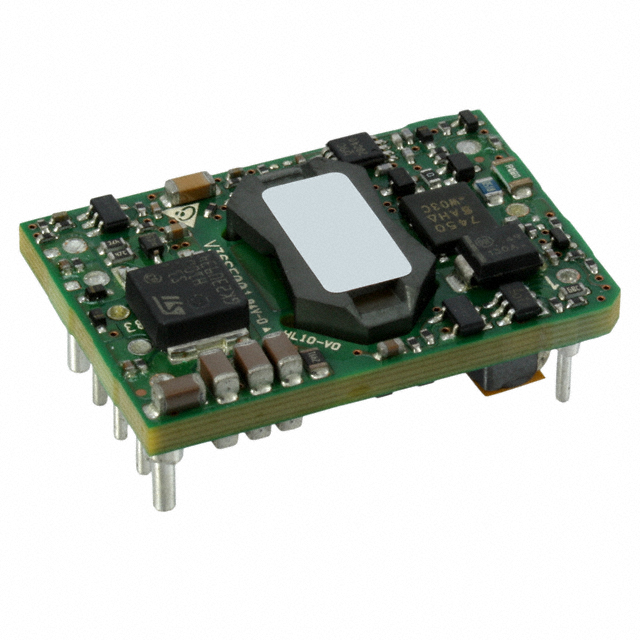

Delta Electronics V36SE12004NRFA		2250 VDC	18 V	8-DIP Module 1/16 Brick		1	12 V		OCP OTP OVP Remote On/Off UVLO	88 %	1.3 in	22.8 mm	0.9 in	33 mm	8.7 mm	0.34 in	Isolated Module	75 V	Through Hole	4.2 A	Active Low Enable	50 W	-40 C	122 °C	ITE (Commercial)
Delta Electronics V36SE3R315NRFA		2250 VDC	18 V	8-DIP Module 1/16 Brick		1	3.3 V		OCP OTP OVP Remote On/Off UVLO	90.5 %	1.3 in	22.9 mm	0.9 in	33 mm	9.4 mm	0.37 in	Isolated Module	75 V	Through Hole	15 A	Active Low Enable	50 W	-40 C	118 °C	ITE (Commercial)
