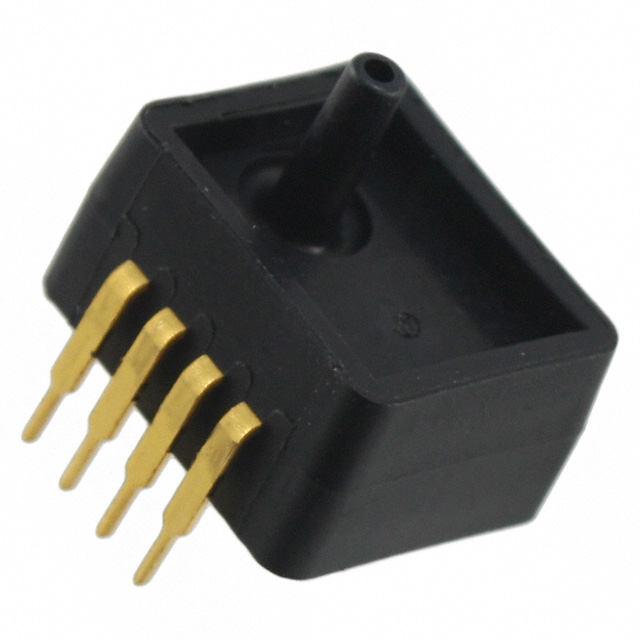

ASDXAVX030 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 30PSIG 0.09" 4.5V
| Part | Port Size | Port Size | Package / Case | Operating Pressure | Operating Pressure | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Applications | Output Type | Features | Maximum Pressure [Max] | Maximum Pressure [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Output [Min] | Output [Max] | Pressure Type | Termination Style | Accuracy | Port Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.09 " 2.31 mm | Male | 8-DIP Module | 206.84 kPa | 30 PSI | Through Hole | 4.75 V | 5.25 V | Board Mount | Analog Voltage | Temperature Compensated | 60 PSI | 413.69 kPa | -20 C | 105 ░C | 0.5 V | 4.5 V | Vented Gauge | PC Pin | 2 % | Barbless |
