NPPN102 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

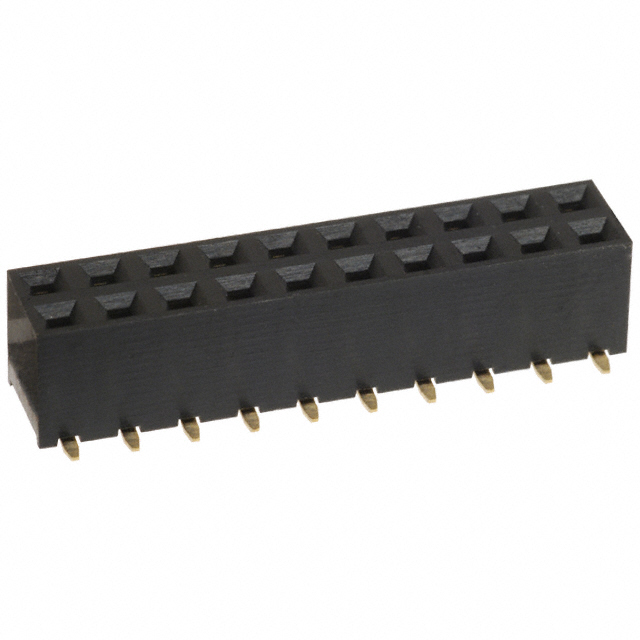

CONN HDR 20POS 0.079 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Material Flammability Rating | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Contact Finish - Mating | Mounting Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Insulation Height | Insulation Height | Connector Type | Current Rating (Amps) | Fastening Type | Number of Positions Loaded | Termination | Contact Finish - Post | Contact Type | Contact Finish Thickness - Mating | Insulation Height | Contact Length - Post [custom] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | UL94 V-0 | 20 | 2 mm | 0.079 in | 2 | Gold | Surface Mount | 0.079 " | 2 mm | -40 C | 105 ░C | Black | 4.4 mm | 0.173 in | Header | 2 A | Push-Pull | All | Solder | Gold | Female Socket | Flash | |||
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Square | Flash | UL94 V-0 | 20 | 2 mm | 0.079 in | 2 | Gold | Through Hole | 0.079 " | 2 mm | -40 C | 105 ░C | Black | 4.3 mm | Header | Push-Pull | All | Solder | Gold | Female Socket | Flash | 0.169 " | 0.11 in | 2.79 mm |
