LM5575-Q1 Series

75V, 1.5A Step-Down Switching Regulator

Catalog

75V, 1.5A Step-Down Switching Regulator

Part	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Output (Min/Fixed)	Current - Output	Function	Output Configuration	Package / Case	Package / Case	Qualification	Grade	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Topology	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Supplied Contents	Main Purpose	Regulator Topology	Frequency - Switching	Board Type	Utilized IC / Part
Texas Instruments LM5575Q0MHX/NOPB	500 kHz	50 kHz	1.225 V	1.5 A	Step-Down	Positive	16-PowerTSSOP	0.173 in 4.4 mm Width	AEC-Q100	Automotive	Adjustable	150 °C	-40 °C	75 V	16-HTSSOP	Buck	70 V	6 V	1	Surface Mount
Texas Instruments LM5575MHX/NOPB	500 kHz	50 kHz	1.225 V	1.5 A	Step-Down	Positive	16-PowerTSSOP	0.173 in 4.4 mm Width			Adjustable	125 ¯C	-40 °C	75 V	16-HTSSOP	Buck	70 V	6 V	1	Surface Mount
Texas Instruments LM5575QMH/NOPB	500 kHz	50 kHz	1.225 V	1.5 A	Step-Down	Positive	16-PowerTSSOP	0.173 in 4.4 mm Width	AEC-Q100	Automotive	Adjustable	125 ¯C	-40 °C	75 V	16-HTSSOP	Buck	70 V	6 V	1	Surface Mount
Texas Instruments LM5575MH/NOPB	500 kHz	50 kHz	1.225 V	1.5 A	Step-Down	Positive	16-PowerTSSOP	0.173 in 4.4 mm Width			Adjustable	125 ¯C	-40 °C	75 V	16-HTSSOP	Buck	70 V	6 V	1	Surface Mount
Texas Instruments LM5575MH	500 kHz	50 kHz	1.225 V	1.5 A	Step-Down	Positive	16-PowerTSSOP	0.173 in 4.4 mm Width			Adjustable	125 ¯C	-40 °C	75 V	16-HTSSOP	Buck	70 V	6 V	1	Surface Mount

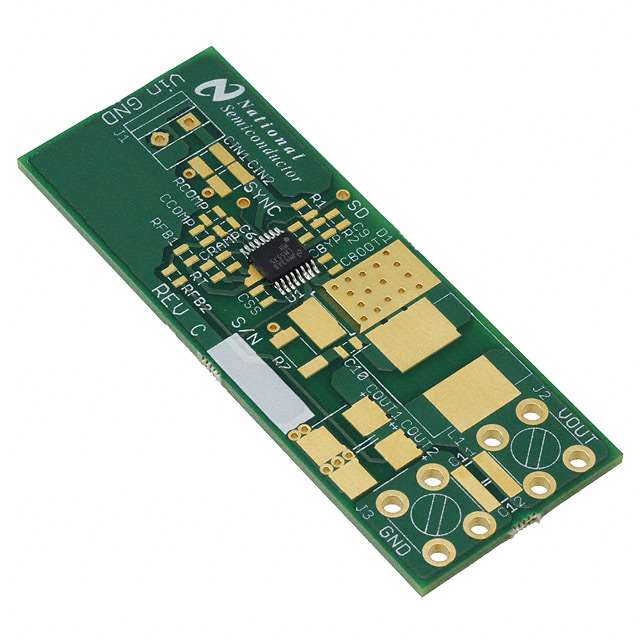

Texas Instruments LM5575BLDT/NOPB																					Board(s)	DC/DC Step Down	Buck	500 kHz	Partially Populated - Main IC Only	LM5575
Texas Instruments LM5575Q0MH/NOPB	500 kHz	50 kHz	1.225 V	1.5 A	Step-Down	Positive	16-PowerTSSOP	0.173 in 4.4 mm Width	AEC-Q100	Automotive	Adjustable	150 °C	-40 °C	75 V	16-HTSSOP	Buck	70 V	6 V	1	Surface Mount

Catalog

75V, 1.5A Step-Down Switching Regulator

Key Features

• AEC-Q100-qualified for automotive applications:Device temperature grade 1: –40°C to +125°C operating temperatureDevice temperature grade 0: –40°C to +150°C operating temperatureDevice HBM ESD classification level 2Integrated 75-V, 330-mΩ N-channel MOSFETUltra-wide input-voltage from 6 V to 75 VAdjustable output voltage as low as 1.225 V1.65% Feedback reference accuracyOperating frequency adjustable between 50 kHz and 500 kHz with single resistorMaster or slave frequency synchronizationAdjustable soft startEmulated current-mode-control architectureWide bandwidth error amplifierBuilt-in protectionCreate a custom design using the LM5575-Q1 with theWEBENCH®Power DesignerAEC-Q100-qualified for automotive applications:Device temperature grade 1: –40°C to +125°C operating temperatureDevice temperature grade 0: –40°C to +150°C operating temperatureDevice HBM ESD classification level 2Integrated 75-V, 330-mΩ N-channel MOSFETUltra-wide input-voltage from 6 V to 75 VAdjustable output voltage as low as 1.225 V1.65% Feedback reference accuracyOperating frequency adjustable between 50 kHz and 500 kHz with single resistorMaster or slave frequency synchronizationAdjustable soft startEmulated current-mode-control architectureWide bandwidth error amplifierBuilt-in protectionCreate a custom design using the LM5575-Q1 with theWEBENCH®Power Designer

Description

The LM5575-Q1 is an easy-to-use buck regulator that allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 V to 75 V, the LM5575-Q1 delivers 1.5 A of continuous output current with an integrated 330-mΩ N-channel MOSFET. The regulator utilizes an emulated current mode architecture which provides inherent line regulation, tight load-transient response, and ease-of-loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50 kHz to 500 kHz to allow optimization of size and efficiency. The LM5575-Q1 ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shutdown, and remote shutdown. The device is available in a power enhanced 16-pin HTSSOP package featuring an exposed die attach pad for thermal dissipation. The LM5575-Q1 is supported by the full suite of WEBENCH®on-Line design tools. For AEC-Q100 grade 1 and grade 0 orderable numbers, see the orderable addendum at the end of this data sheet. The LM5575-Q1 is an easy-to-use buck regulator that allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 V to 75 V, the LM5575-Q1 delivers 1.5 A of continuous output current with an integrated 330-mΩ N-channel MOSFET. The regulator utilizes an emulated current mode architecture which provides inherent line regulation, tight load-transient response, and ease-of-loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50 kHz to 500 kHz to allow optimization of size and efficiency. The LM5575-Q1 ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shutdown, and remote shutdown. The device is available in a power enhanced 16-pin HTSSOP package featuring an exposed die attach pad for thermal dissipation. The LM5575-Q1 is supported by the full suite of WEBENCH®on-Line design tools. For AEC-Q100 grade 1 and grade 0 orderable numbers, see the orderable addendum at the end of this data sheet.
