LEX3012 Series

Manufacturer: Pflitsch

Catalog

CABLE GLND 7.87-13.97MM 1/2" NPT

Part	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min)	Material	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Panel Hole Size	Panel Hole Size	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Includes	Thread Length	Thread Length	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]

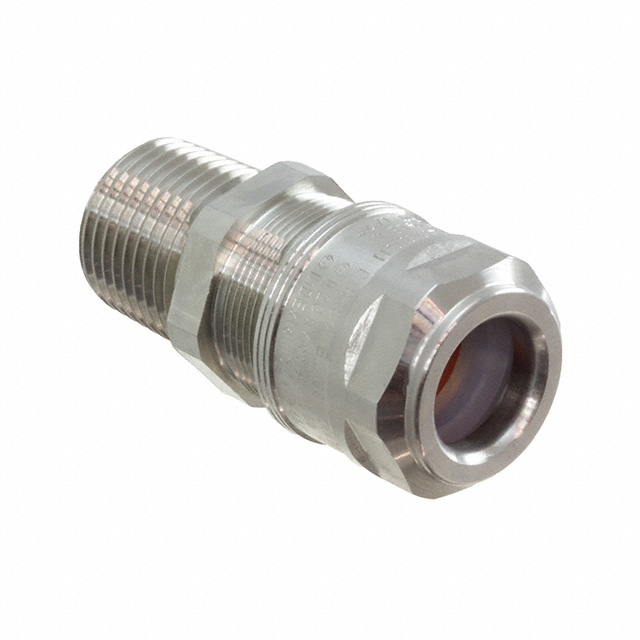

Pflitsch LEX3012VA/316LHTS	IP66 IP68	0.31 in	7.87 mm	Stainless Steel	-60 °C	130 °C	0.5	16 mm	0.63 in	Cable Gland	13.97 mm	0.55 in	Silver	Sealing Ring	20 mm	0.787 in

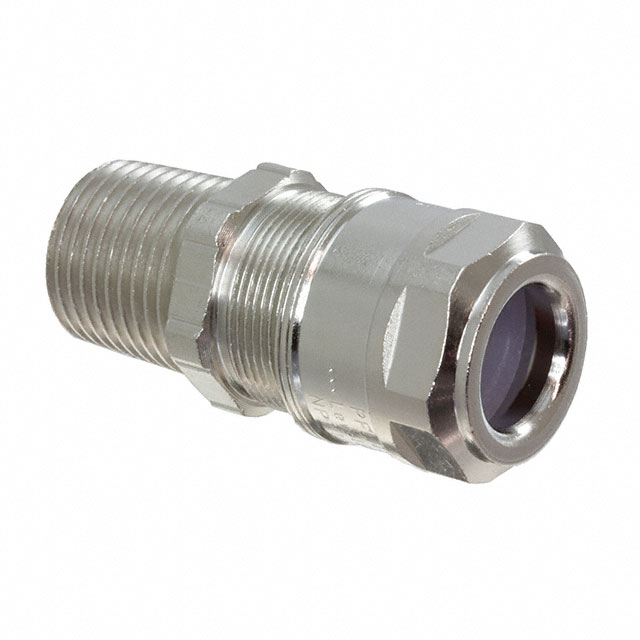

Pflitsch LEX3012MSHTS	IP66 IP68			Brass Nickel Plated	-60 °C	130 °C	0.5			Cable Gland		0.551 in	Silver		20 mm	0.787 in	14 mm	0.315 in	8 mm
