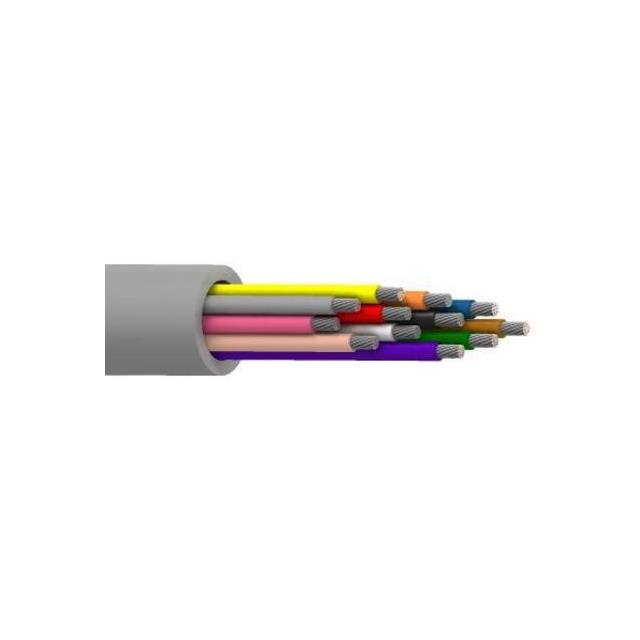

8457MN Series

Catalog

CABLE 12COND 22AWG YELLOW

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Number of Conductors	Ratings	Jacket Color	Cable Type	Length [x]	Length [x]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Usage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Length	Length
Belden Inc. 8457MN 004100	0.24 "	6.1 mm	Polypropylene (PP)	12	UL Style 2937	Yellow	Multi-Conductor	100 ft	30.5 m	300 VDC	0.406 mm	0.016 in	Copper Tinned	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	34 AWG	19	80 °C	-20 ░C	22 AWG
Belden Inc. 8457MN 008100	0.24 "	6.1 mm	Polypropylene (PP)	12	UL Style 2937	Gray	Multi-Conductor	100 ft	30.5 m	300 VDC	0.406 mm	0.016 in	Copper Tinned	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	34 AWG	19	80 °C	-20 ░C	22 AWG
Belden Inc. 8457MN 0041000	0.24 "	6.1 mm	Polypropylene (PP)	12	UL Style 2937	Yellow	Multi-Conductor			300 VDC	0.406 mm	0.016 in	Copper Tinned	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	34 AWG	19	80 °C	-20 ░C	22 AWG	304.8 m	1000 ft
Belden Inc. 8457MN 006100	0.24 "	6.1 mm	Polypropylene (PP)	12	UL Style 2937	Blue	Multi-Conductor	100 ft	30.5 m	300 VDC	0.406 mm	0.016 in	Copper Tinned	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	34 AWG	19	80 °C	-20 ░C	22 AWG
Belden Inc. 8457MN 0081000	0.24 "	6.1 mm	Polypropylene (PP)	12	UL Style 2937	Gray	Multi-Conductor			300 VDC	0.406 mm	0.016 in	Copper Tinned	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	34 AWG	19	80 °C	-20 ░C	22 AWG	304.8 m	1000 ft
