10013057 Series

Catalog

CONN FFC BOTTOM 25POS 0.3MM R/A

Part	Current Rating (Amps)	Actuator Color	Housing Color	Mating Cycles	Number of Positions	Actuator Material	Termination	Cable End Type	Locking Feature	Material Flammability Rating	Connector/Contact Type	Flat Flex Type	Features	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	FFC, FCB Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Contact Finish	Mounting Type	Contact Material	Voltage Rating
Amphenol ICC (FCI) 10013057-251200ELF	0.2 A	Black	White	10	25	Plastic	Solder	Notched	Flip Lock	UL94 V-0	Contacts Bottom	FFC	Low Insertion Force (LIF)	1.2 mm	0.047 "	0.012 in	0.3 mm	0.2 mm	85 °C	-25 °C	Glass Filled Thermoplastic	Gold	Right Angle Surface Mount	Copper Alloy	200 V

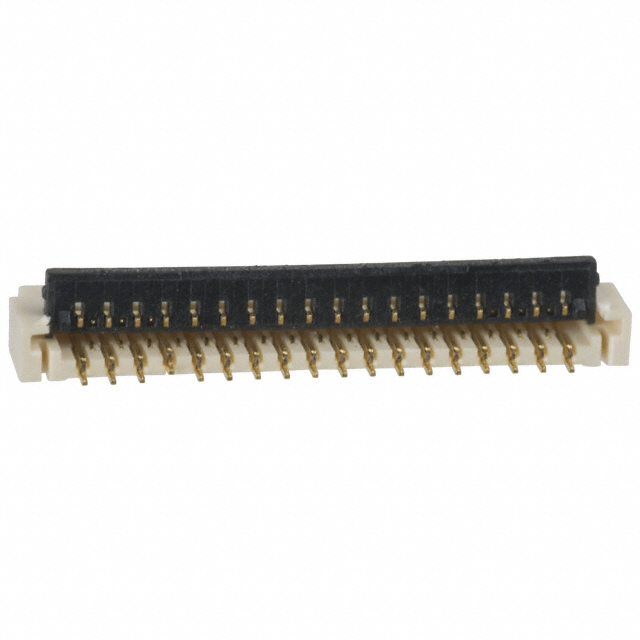

Amphenol ICC (FCI) 10013057-351200ELF	0.2 A	Black	White	10	35	Plastic	Solder	Notched	Flip Lock	UL94 V-0	Contacts Bottom	FFC	Low Insertion Force (LIF)	1.2 mm	0.047 "	0.012 in	0.3 mm	0.2 mm	85 °C	-25 °C	Glass Filled Thermoplastic	Gold	Right Angle Surface Mount	Copper Alloy	200 V
