3117-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .024DIA TINLEAD
| Part | Contact Finish | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Contact Material | Terminal Type | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Length - Overall | Length - Overall | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin-Lead | Swage | 0.078 " | 1.98 mm | 0.89 mm | 0.035 in | Non-Insulated | Brass Alloy | PC Pin | Single End | 4.78 mm | 0.188 in | 200 Áin | 5.08 Ám | 0.06 in | 1.52 mm | Through Hole | 7.39 mm | 0.291 in | 1.57 mm | 0.062 " |
 Mill-Max Manufacturing Corp. | Gold | Swage | 0.078 " | 1.98 mm | 0.89 mm | 0.035 in | Non-Insulated | Brass Alloy | PC Pin | Single End | 4.78 mm | 0.188 in | 10 Áin | 0.25 Ám | 0.06 in | 1.52 mm | Through Hole | 7.39 mm | 0.291 in | 1.57 mm | 0.062 " |

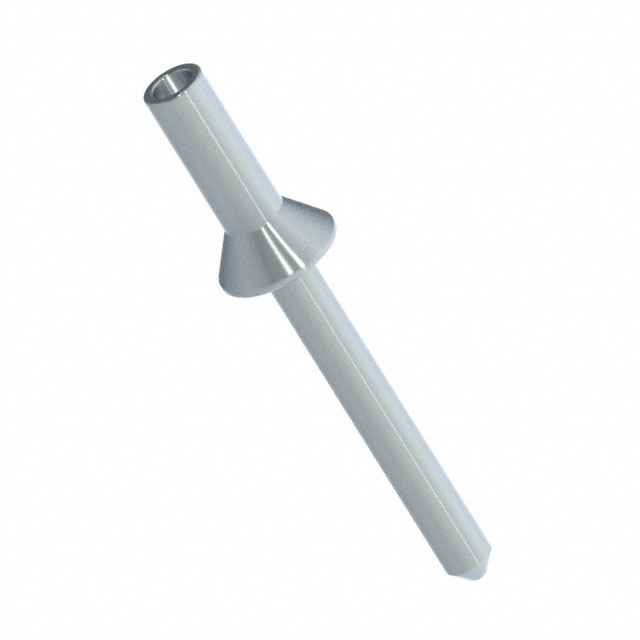

 Mill-Max Manufacturing Corp. | Tin | Swage | 0.078 " | 1.98 mm | 0.89 mm | 0.035 in | Non-Insulated | Brass Alloy | PC Pin | Single End | 4.78 mm | 0.188 in | 200 Áin | 5.08 Ám | 0.06 in | 1.52 mm | Through Hole | 7.39 mm | 0.291 in | 1.57 mm | 0.062 " |

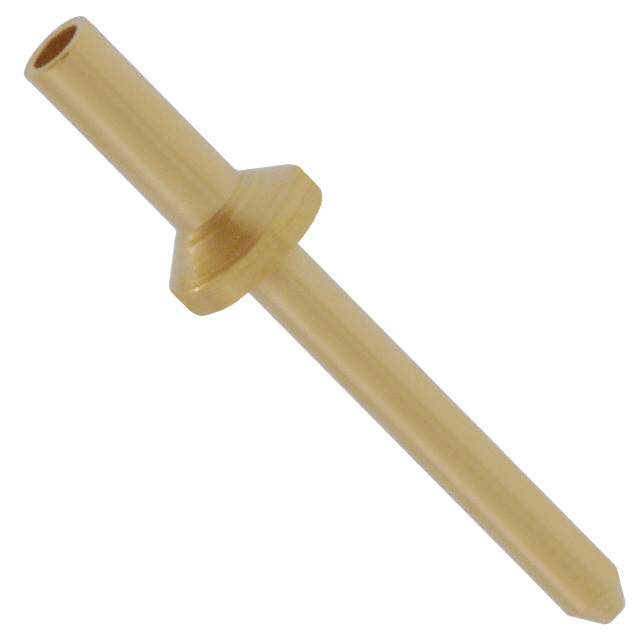

Mill-Max Manufacturing Corp. | Gold | Swage | 0.078 " | 1.98 mm | 0.89 mm | 0.035 in | Non-Insulated | Brass Alloy | PC Pin | Single End | 4.78 mm | 0.188 in | 50 µin | 1.27 µm | 0.06 in | 1.52 mm | Through Hole | 7.39 mm | 0.291 in | 1.57 mm | 0.062 " |
 Mill-Max Manufacturing Corp. | Gold | Swage | 0.078 " | 1.98 mm | 0.89 mm | 0.035 in | Non-Insulated | Brass Alloy | PC Pin | Single End | 4.78 mm | 0.188 in | 20 µin | 0.51 µm | 0.06 in | 1.52 mm | Through Hole | 7.39 mm | 0.291 in | 1.57 mm | 0.062 " |
