TE40A1802 Series

Catalog

AC/DC WALL MOUNT ADAPTER 18V 40W

Part	Weight	Weight	Voltage - Output	Form	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Applications	Efficiency	Current - Output (Max) [Max]	Cord Length	Cord Length	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Input Connector	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]

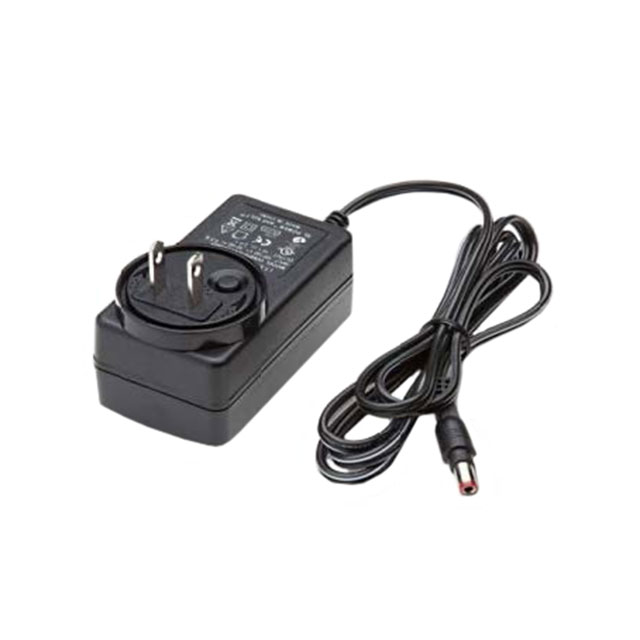

SL POWER / Advanced Energy TE40A1802B01	0.551 lb	249.93 g	18 V	Wall Mount	-20 ░C	50 °C	North America	100 mW	3.78 in	2.17 "	96 mm	1.32 in	33.6 mm	55 mm	CB CE DEMKO UL	ITE (Commercial)	Level VI	2.22 A	57 in	1.45 m	Positive Center	264 VAC	90 VAC	Fixed Blade Multi-Blade	NEMA 1-15P Multi-Blade	40 W	Barrel Plug	2.1 mm 5.5 mm	9.5 mm

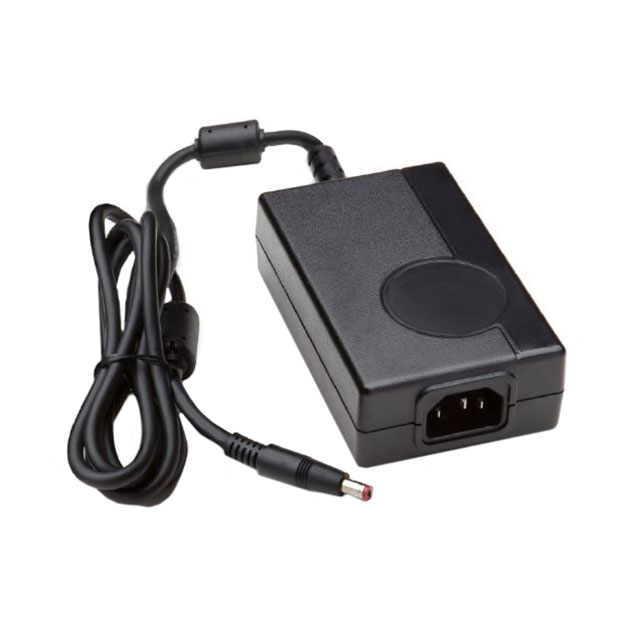

SL POWER / Advanced Energy TE40A1802N01	0.551 lb	249.93 g	18 V	Desktop (Class II)	-20 ░C	50 °C	International	100 mW			3.76 in		1.22 in	2.13 in	CB CE DEMKO UL	ITE (Commercial)	Level VI	2.22 A	57 in	1.45 m	Positive Center	264 VAC	90 VAC	Cord (Sold Separately)	IEC 320-C8	40 W	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	95.5 mm	54 mm	31 mm
SL POWER / Advanced Energy TE40A1802F01	0.551 lb	249.93 g	18 V	Desktop (Class I)	-20 ░C	50 °C	International	100 mW			3.76 in		1.22 in	2.13 in	CB CE DEMKO UL	ITE (Commercial)	Level VI	2.22 A	57 in	1.45 m	Positive Center	264 VAC	90 VAC	Cord (Sold Separately)	IEC 320-C14	40 W	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	95.5 mm	54 mm	31 mm
