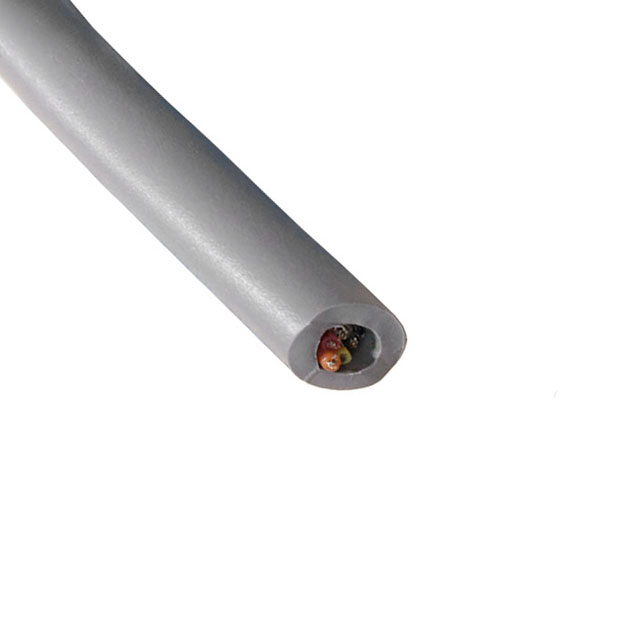

5599/5C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 5COND 24AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Features | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Shield Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Ratings | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 5 | Drain Wire Rip Cord | Multi-Conductor | 7 | 32 AWG | 24 AWG | Foil | Poly-Vinyl Chloride (PVC) | 0.254 in | 6.45 mm | Copper Tinned | -30 ░C | 105 ░C | 152.4 m | 500 ft | UL Style 2343 | 300 VDC | 1.6 mm | 0.063 in | Slate | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Aluminum | 100 % | 5 | Drain Wire Rip Cord | Multi-Conductor | 7 | 32 AWG | 24 AWG | Foil | Poly-Vinyl Chloride (PVC) | 0.254 in | 6.45 mm | Copper Tinned | -30 ░C | 105 ░C | UL Style 2343 | 300 VDC | 1.6 mm | 0.063 in | Slate | Poly-Vinyl Chloride (PVC) | 328.1 ft | 100 m | ||
ALPHA WIRE | Aluminum | 100 % | 5 | Drain Wire Rip Cord | Multi-Conductor | 7 | 32 AWG | 24 AWG | Foil | Poly-Vinyl Chloride (PVC) | 0.254 in | 6.45 mm | Copper Tinned | -30 ░C | 105 ░C | 304.8 m | 1000 ft | UL Style 2343 | 300 VDC | 1.6 mm | 0.063 in | Slate | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Aluminum | 100 % | 5 | Drain Wire Rip Cord | Multi-Conductor | 7 | 32 AWG | 24 AWG | Foil | Poly-Vinyl Chloride (PVC) | 0.254 in | 6.45 mm | Copper Tinned | -30 ░C | 105 ░C | UL Style 2343 | 300 VDC | 1.6 mm | 0.063 in | Slate | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
