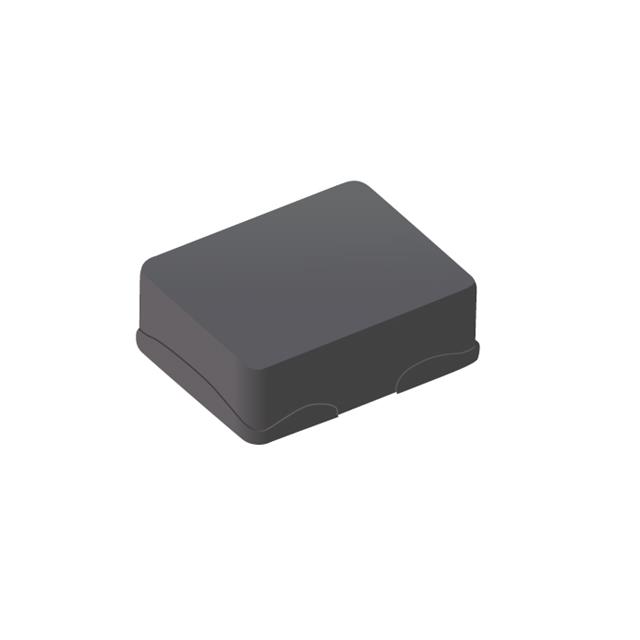

SRP2012TMA Series

Catalog

POWER INDUCTOR, 0.47UH, SHIELDED, 5.4A ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Q @ Freq [custom]	Q @ Freq [custom]	Ratings	Tolerance	DC Resistance (DCR) [Max]	Mounting Type	Features	Shielding	Package / Case	Current - Saturation (Isat)	Inductance	Frequency - Self Resonant	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Bourns Inc. SRP2012TMA-R47M	-55 C	150 °C	Metal	5	1 MHz	AEC-Q200	20 %	26 mOhm	Surface Mount	Flat Wire	Shielded	0806 (2016 Metric)	6 A	470 nH	102 MHz	5.4 A	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	1.2 mm	0.047 "
Bourns Inc. SRP2012TMA-1R5M	-55 C	150 °C	Metal	10	1 MHz	AEC-Q200	20 %	84 mOhm	Surface Mount	Flat Wire	Shielded	0806 (2016 Metric)	3.1 A	1.5 µH	52 MHz	2.9 A	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	1.2 mm	0.047 "
Bourns Inc. SRP2012TMA-2R2M	-55 C	150 °C	Metal	10	1 MHz	AEC-Q200	20 %	126 mOhm	Surface Mount	Flat Wire	Shielded	0806 (2016 Metric)	2.7 A	2.2 µH	40 MHz	2.5 A	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	1.2 mm	0.047 "
Bourns Inc. SRP2012TMA-R33M	-55 C	150 °C	Metal	5	1 MHz	AEC-Q200	20 %	18 mOhm	Surface Mount	Flat Wire	Shielded	0806 (2016 Metric)	7 A	330 nH	125 MHz	5.9 A	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	1.2 mm	0.047 "
Bourns Inc. SRP2012TMA-R22M	-55 C	150 °C	Metal	5	1 MHz	AEC-Q200	20 %	13 mOhm	Surface Mount	Flat Wire	Shielded	0806 (2016 Metric)	8 A	220 nH	170 MHz	7 A	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	1.2 mm	0.047 "
