5225395 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

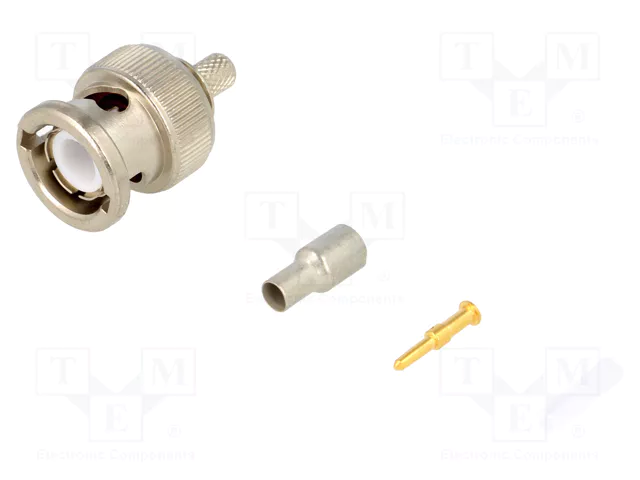

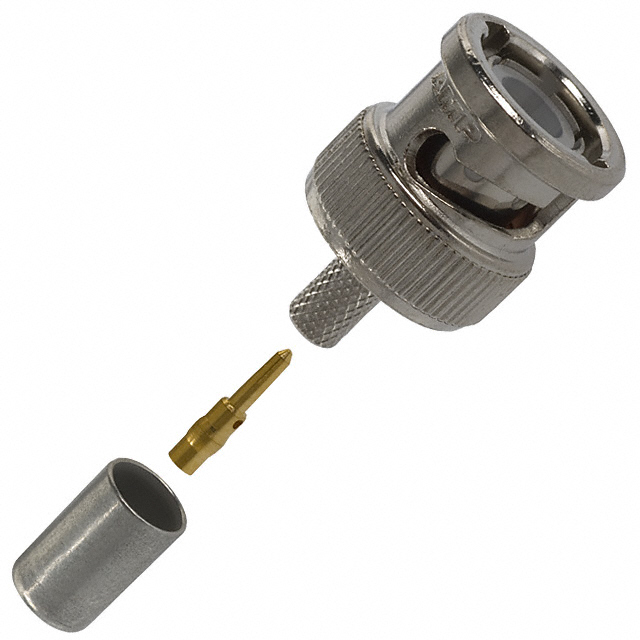

RF CONNECTORS / COAXIAL CONNECTORS ST PLG STD CBL CRMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Insertion Loss | Mating Cycles | Body Finish | Includes | Voltage Rating | Dielectric Material | Fastening Type | Impedance | Connector Style | Contact Termination | Connector Type | Mounting Type | Shield Termination | Center Contact Material | Number of Ports | Frequency - Max [Max] | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

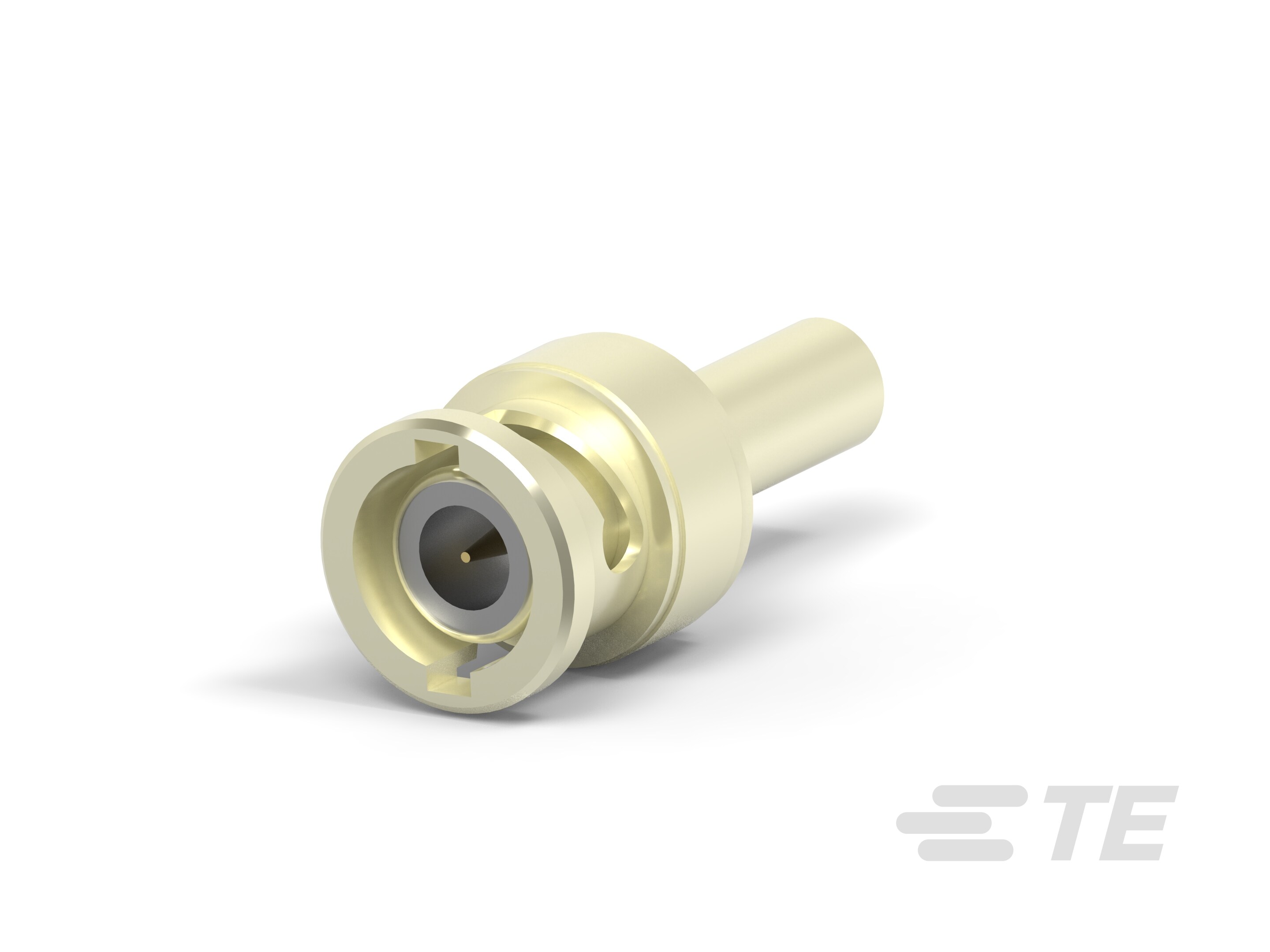

 TE Connectivity AMP Connectors | -55 C | 85 °C | Brass | Gold | 0.2 dB | 500 | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 50 Ohms | BNC | Crimp | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | 1 | 4 GHz | Silver | 187 RG-179 |
 TE Connectivity AMP Connectors | -55 C | 85 °C | Brass | Gold | 0.2 dB | 500 | Nickel | 1 Connector 1 Contact 1 Ferrule | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 50 Ohms | BNC | Crimp | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | 1 | 4 GHz | Silver | 59A 59B 62 62A 62B RG-59 |
 TE Connectivity AMP Connectors | -55 C | 85 °C | Brass | Gold | 0.2 dB | 500 | Nickel | 1 Connector 1 Contact 1 Ferrule | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 50 Ohms | BNC | Crimp | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | 1 | 4 GHz | Silver | 142A 142B RG-142 |
 TE Connectivity AMP Connectors | -55 C | 85 °C | Brass | Gold | 0.2 dB | 500 | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 50 Ohms | BNC | Crimp | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | 1 | 4 GHz | Silver | 188 RG-174 |
 TE Connectivity AMP Connectors | -55 C | 85 °C | Brass | Gold | 0.2 dB | 500 | Nickel | 1 Connector 1 Contact 1 Ferrule | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 50 Ohms | BNC | Crimp | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | 1 | 4 GHz | Silver | Belden 88241 RG-62A |
TE Connectivity AMP Connectors | -55 C | 85 °C | Brass | Gold | 0.2 dB | 500 | Nickel | 1 Connector 1 Contact 1 Ferrule | 500 V | Polytetrafluoroethylene (PTFE) | Bayonet Lock | 50 Ohms | BNC | Crimp | Plug Male Pin | Free Hanging (In-Line) | Crimp | Brass | 1 | 4 GHz | Silver | 141A RG-141 |
