172010 Series
Manufacturer: Molex
Beta
⌘K

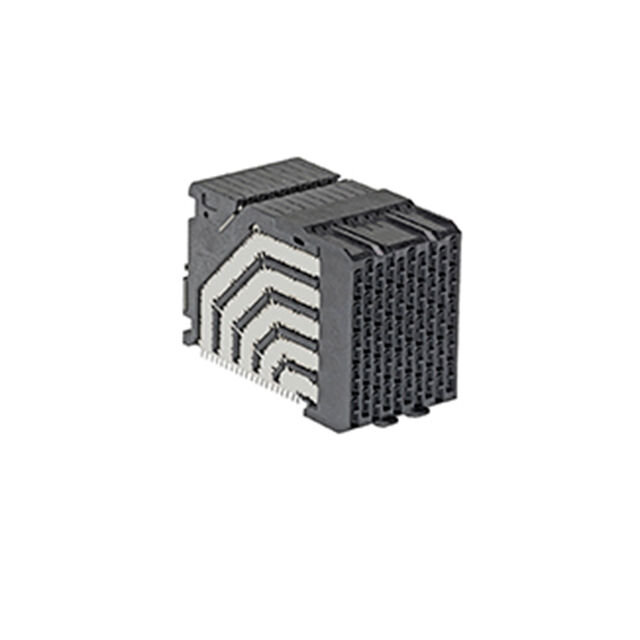

IMPEL 90 OHM 5 PAIR RIGHT-ANGLE DAUGHTERCARD, 1.90MM PITCH, UNGUIDED, OPEN ENDWALLS, 10 COLUMNS, 100 CIRCUITS, PLATED THROUGH HOLE DIMENSION 0.36MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Connector Usage | Contact Finish | Number of Positions Loaded | Number of Columns | Connector Type | Number of Positions | Color | Termination | Mounting Type | Contact Layout, Typical | Pitch | Pitch | Features | Connector Style | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -55 C | 85 °C | 29.9 VAC/DC | UL94 V-0 | 0.75 A | Coplanar Daughtercard | Gold | All | 10 | Blade Sockets Female Sockets Receptacle | 100 | Black | Press-Fit | Right Angle Through Hole | 50 Differential Pairs | 1.9 mm | 0.075 in | Shielded | Impel™ | 10 | 30 Áin | 0.76 Ám |
 Molex | -55 C | 85 °C | 29.9 VAC/DC | UL94 V-0 | 0.75 A | Daughtercard | Gold | All | 10 | Receptacle Female Sockets | 100 | Black | Press-Fit | Right Angle Through Hole | 50 Differential Pairs | 1.9 mm | 0.075 in | Shielded | Impel Guide Right | 10 | 30 Áin | 0.76 Ám |
