1971773 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PTL 1X2 PLUG HSG HIGH TEMP KEY A LGR

Part	Connector Type	Note	Contact Type	Insulation Material	Fastening Type	Number of Rows	Color	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Number of Positions

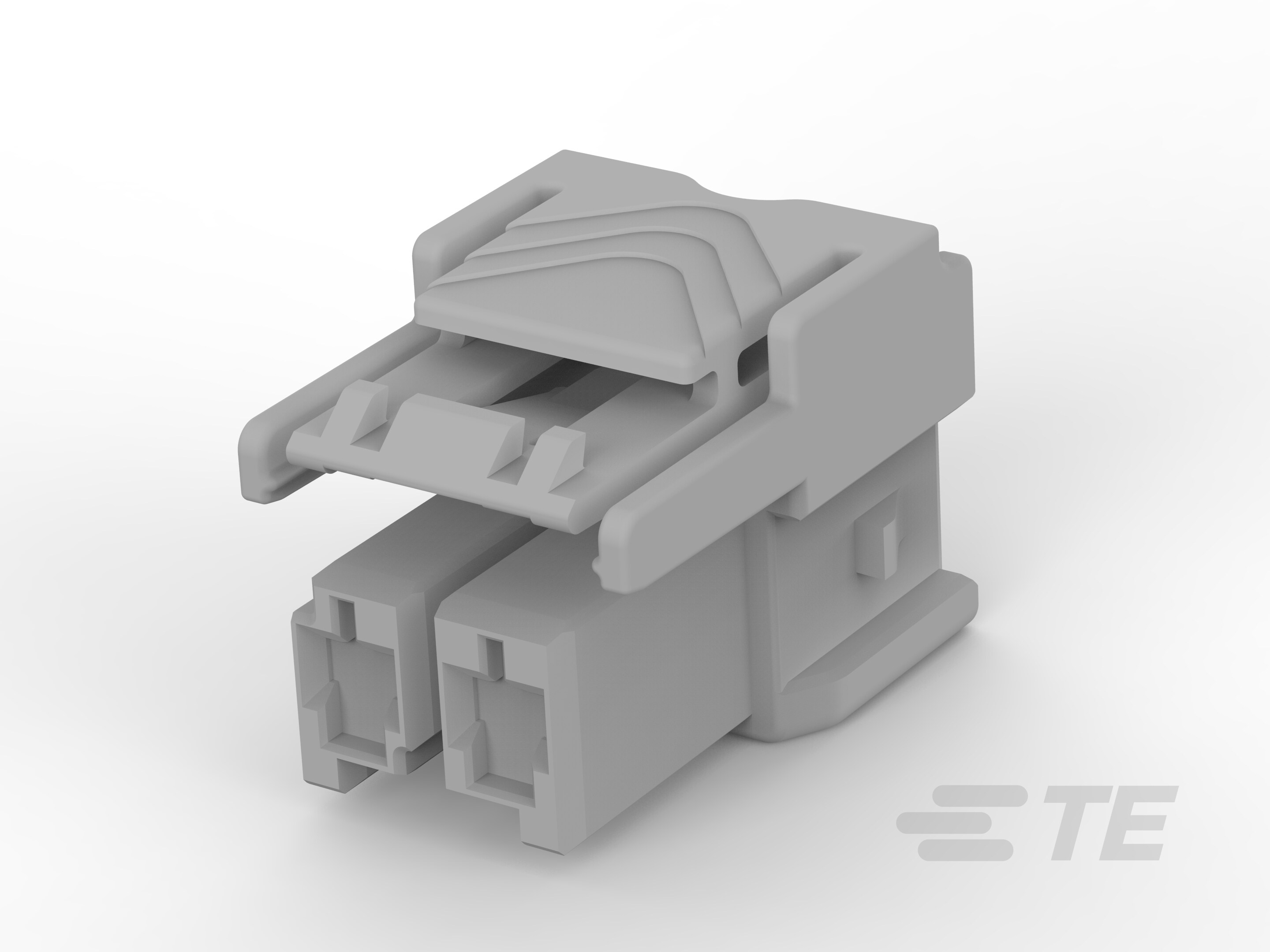

TE Connectivity Raychem Cable Protection 9-1971773-2	Plug	Contacts Not Included	Female Blade Socket	Nylon Polyamide (PA)	Latch Holder	1	Natural	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	2
TE Connectivity Raychem Cable Protection 8-1971773-3	Plug	Contacts Not Included	Female Blade Socket	Nylon Polyamide (PA)	Latch Holder	1	Natural	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 7-1971773-7	Plug	Contacts Not Included	Female Blade Socket	Nylon Polyamide (PA)	Latch Holder	1	Black	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 4-1971773-2	Plug	Contacts Not Included	Female Blade Socket	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Yellow	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	2
TE Connectivity Raychem Cable Protection 2-1971773-3	Plug	Contacts Not Included	Female Blade Socket	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Purple	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 2-1971773-4	Plug	Contacts Not Included	Female Blade Socket	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Purple	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	4

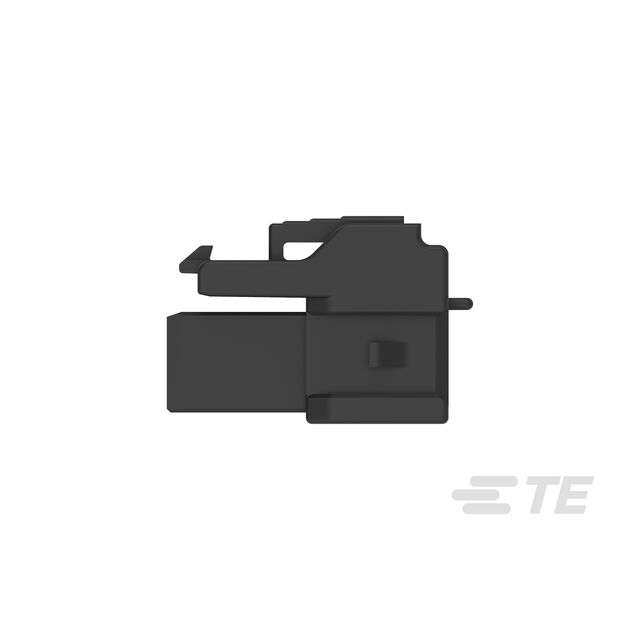

TE Connectivity Raychem Cable Protection 7-1971773-2	Plug	Contacts Not Included	Female Blade Socket	Nylon Polyamide (PA)	Latch Holder	1	Black	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	2

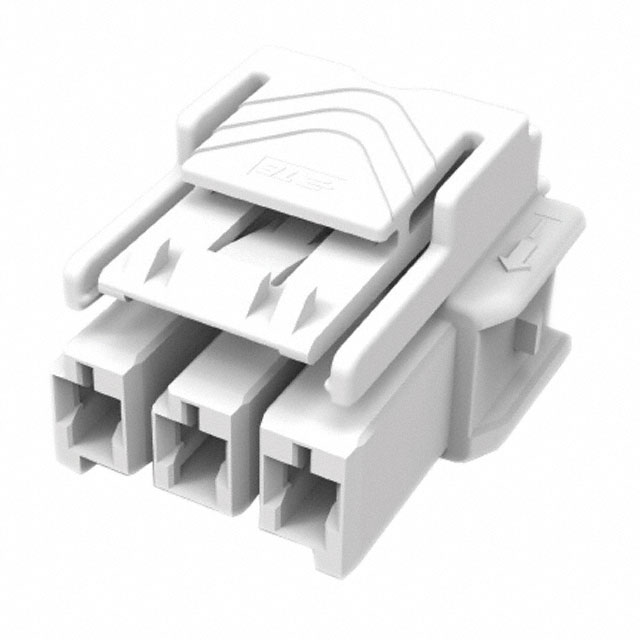

TE Connectivity Raychem Cable Protection 1-1971773-3	Plug	Contacts Not Included	Female Blade Socket	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Natural	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 7-1971773-4	Plug	Contacts Not Included	Female Blade Socket	Nylon Polyamide (PA)	Latch Holder	1	Black	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	4

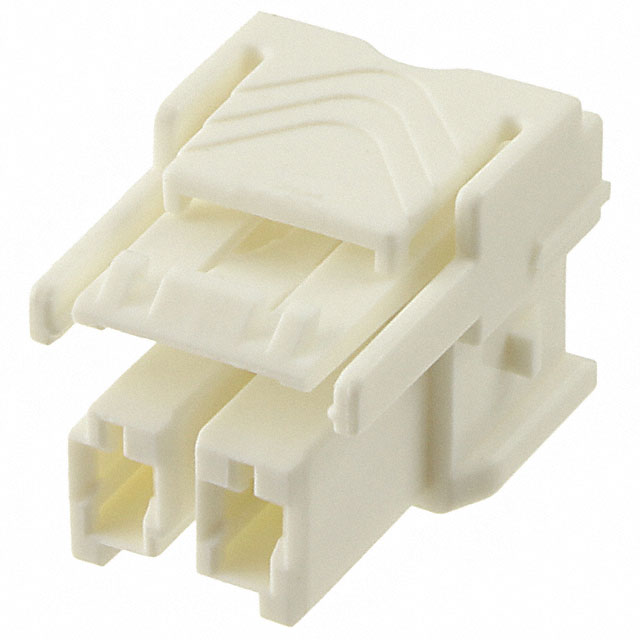

TE Connectivity Raychem Cable Protection 1-1971773-2	Plug	Contacts Not Included	Female Blade Socket	Polybutylene Terephthalate (PBT) Glass Filled	Latch Holder	1	Natural	0.236 in	6 mm	105 ░C	-55 °C	Crimp	Free Hanging (In-Line)	2
