9223 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

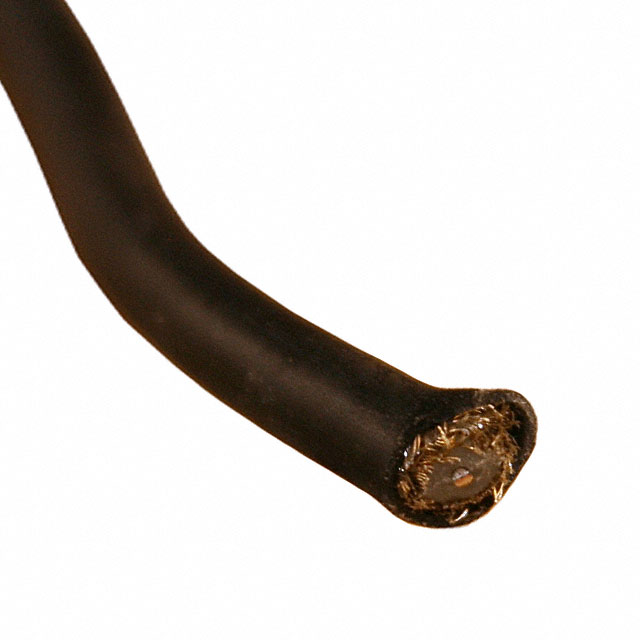

CABLE COAXIAL RG-223 19AWG 100'
| Part | Shield Material | VoP, Velocity of Propagation | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Dielectric Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Wire Gauge | Jacket Color | Cable Group | Length | Length | Jacket (Insulation) Material | Impedance | Conductor Strand | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Silver Coated | 66 | 90 °C | -40 C | 99 % | Solid Polyethylene (PE) | 2.95 mm | 0.116 in | Copper Silver Coated | 19 AWG | Black | RG-223 | 100 ' | 30.48 m | Non Contaminating Poly-Vinyl Chloride (PVC) | 50 Ohms | Solid | Double Braid | Coaxial | 5.38 mm | 0.212 in |
