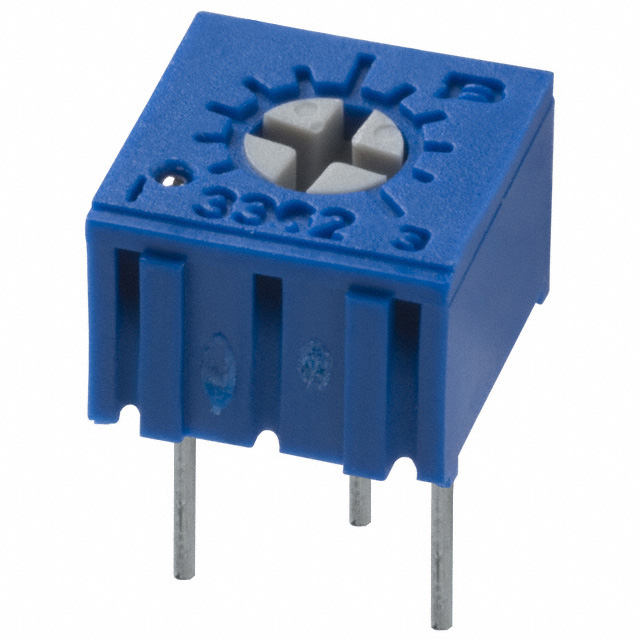

3362P Series

Catalog

TRIMMER 2K OHM 0.5W PC PIN TOP

Part	Resistive Material	Resistance	Temperature Coefficient	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination Style	Number of Turns	Power (Watts)	Power (Watts)	Tolerance	Adjustment Type
Bourns Inc. 3362P-1-202	Cermet	2 kOhms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-253LF	Cermet	25 kOhms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-104TLF	Cermet	100 kOhms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Finger Adjustment
Bourns Inc. 3362P-1-502LF	Cermet	5 kOhms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-503LF	Cermet	50000 Ohms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-254LF	Cermet	250000 Ohms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-104RLF	Cermet	100 kOhms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-203LF	Cermet	20 kOhms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-101RLF	Cermet	100 Ohms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Adjustment
Bourns Inc. 3362P-1-500TLF	Cermet	50 Ohms	100 ppm/°C	Through Hole	6.99 mm	0.275 in	0.26 in	6.6 mm	PC Pins	1	0.5 W	0.5 W	10 %	Top Finger Adjustment
