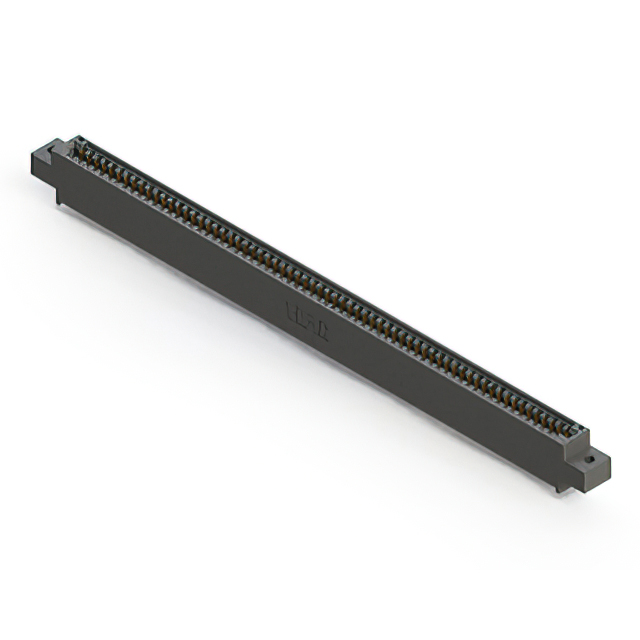

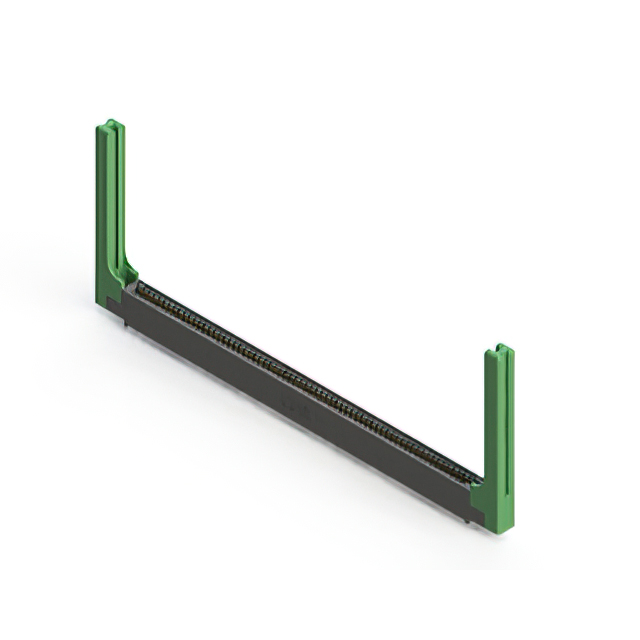

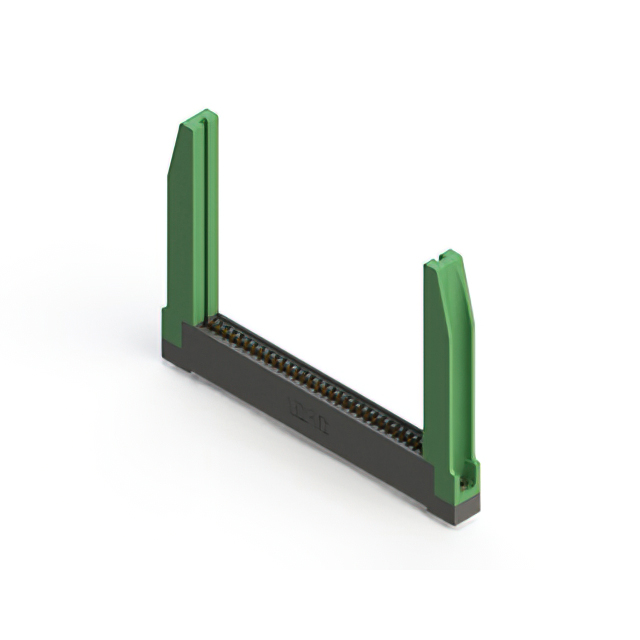

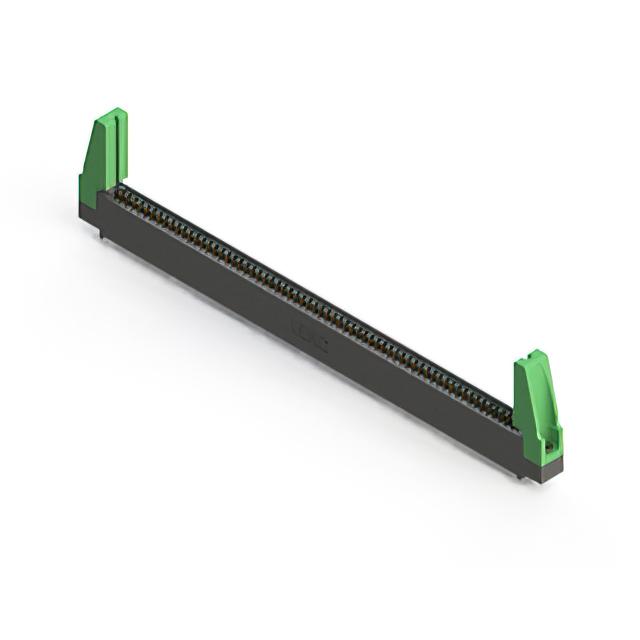

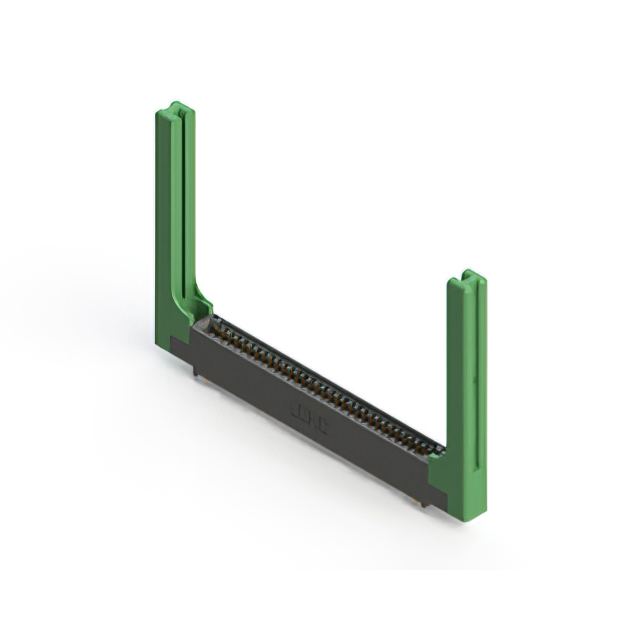

395-066 Series
Manufacturer: EDAC Inc.
Beta
⌘K
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
| Part | Material - Insulation | Termination Rows [custom] | Flange Feature | Contact Material | Number of Positions/Bay/Row | Gender | Card Type | Read Out | Contact Type | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Color | Card Thickness [Max] | Card Thickness [Min] | Termination | Number of Rows [custom] | Pitch | Pitch | Mounting Type | Number of Positions | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 33 | Female | Non Specified - Dual Edge | Dual | Cantilever | Card Guides | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.1 " | 2.54 mm | Through Hole | 66 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 33 | Female | Non Specified - Dual Edge | Dual | Cantilever | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.1 " | 2.54 mm | Through Hole | 66 | |||||
 EDAC Inc. | Polyester Thermoplastic | Side Mount Opening Unthreaded | Copper Alloy | 66 | Female | Non Specified - Single Edge | Single | Cantilever | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 0.1 " | 2.54 mm | Through Hole | 66 | 1 | 0.128 " | 3.25 mm | 1 | |||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | 66 | Female | Non Specified - Single Edge | Single | Cantilever | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Through Hole | 66 | 1 | 0.128 " | 3.25 mm | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | M3 Threaded Insert Top Mount Opening | Copper Alloy | 33 | Female | Non Specified - Dual Edge | Dual | Cantilever | Card Extender | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.1 " | 2.54 mm | Board Edge Straddle Mount | 66 | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 66 | Female | Non Specified - Single Edge | Single | Cantilever | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Right Angle Through Hole | 66 | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 33 | Female | Non Specified - Dual Edge | Dual | Cantilever | Card Guides | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.1 " | 2.54 mm | Through Hole | 66 | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 66 | Female | Non Specified - Single Edge | Single | Cantilever | Card Guides | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Right Angle Through Hole | 66 | 1 | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 66 | Female | Non Specified - Single Edge | Single | Cantilever | Card Guides | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 0.1 " | 2.54 mm | Through Hole | 66 | 1 | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | 66 | Female | Non Specified - Single Edge | Single | Cantilever | Card Guides | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 0.1 " | 2.54 mm | Through Hole | 66 | 1 | 1 |
