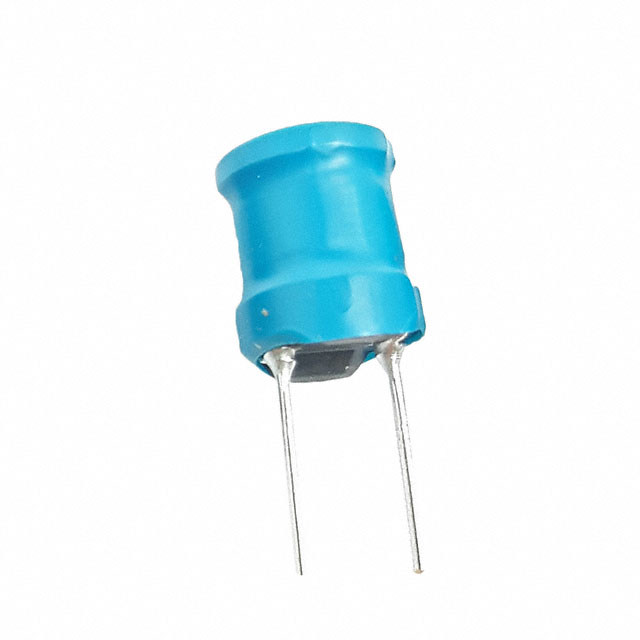

SBCP-87HY Series
Manufacturer: KEMET
Beta
⌘K
FIXED IND 470UH 420MA 1.3 OHM TH
| Part | Inductance | Current Rating (Amps) | Inductance Frequency - Test | Size / Dimension [diameter] | Size / Dimension [diameter] | Material - Core | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Current - Saturation (Isat) | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Tolerance | Package / Case | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 470 µH | 0.42 A | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 390 mA | 1.3 Ohm | 0.335 " | 8.5 mm | Through Hole | 10 % | Radial Vertical Cylinder | Drum Core Wirewound |
KEMET | 82 µH | 1.1 A | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 940 mA | 230 mOhm | 0.335 " | 8.5 mm | Through Hole | 10 % | Radial Vertical Cylinder | Drum Core Wirewound |
 KEMET | 68 µH | 1.16 A | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 1 A | 190 mOhm | 0.335 " | 8.5 mm | Through Hole | 10 % | Radial Vertical Cylinder | Drum Core Wirewound |
KEMET | 100 µH | 900 mA | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 870 mA | 300 mOhm | 0.335 " | 8.5 mm | Through Hole | 10 % | Radial Vertical Cylinder | Drum Core Wirewound |
KEMET | 22 µH | 1.9 A | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 1.8 A | 80 mOhm | 0.335 " | 8.5 mm | Through Hole | 20 % | Radial Vertical Cylinder | Drum Core Wirewound |
 KEMET | 330 µH | 0.5 A | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 470 mA | 920 mOhm | 0.335 " | 8.5 mm | Through Hole | 10 % | Radial Vertical Cylinder | Drum Core Wirewound |
KEMET | 3.3 µH | 3.2 A | 10 kHz | 0.374 Dia | 9.5 mm | Ferrite | Unshielded | -20 ░C | 105 ░C | 4.8 A | 30 mOhm | 0.335 " | 8.5 mm | Through Hole | 30 % | Radial Vertical Cylinder | Drum Core Wirewound |
