SWITCH TOGGLE SPDT 10A 125V

Part	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Illumination	Circuit	Voltage Rating - AC	Current Rating	Actuator Type	Actuator Length	Termination Style	Mounting Type	Actuator Material	Panel Cutout Diameter	Panel Cutout Shape	Bushing Thread	Quick Connect Size (0.250")	Features	Electrical Life (Cycles)	Voltage Rating - DC	Ingress Protection IP Rating	Ingress Protection Description	Color	Illumination Type	Color - Actuator/Cap	Illumination Voltage (Nominal)	Actuator Marking	Approval Agency

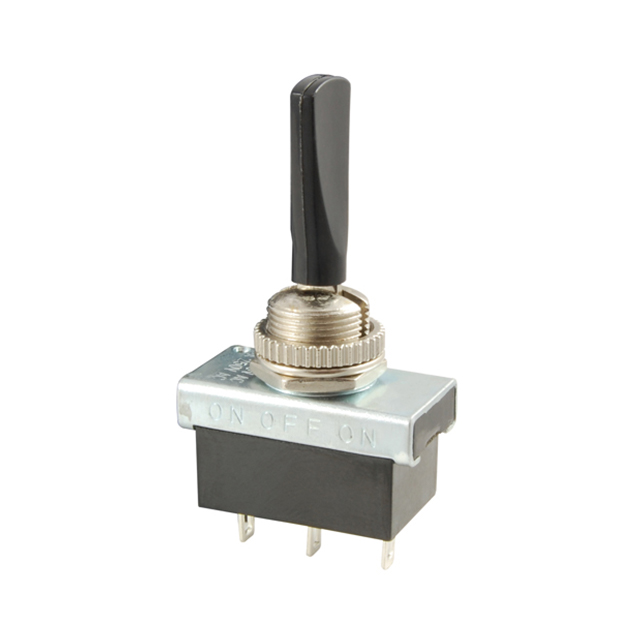

NTE Electronics, Inc 54-730	-20 °C	65 °C	On-Off-On	Non-Illuminated	SPDT	125 V	10 A	Paddle	23.5 mm	Solder Lug	Panel Mount

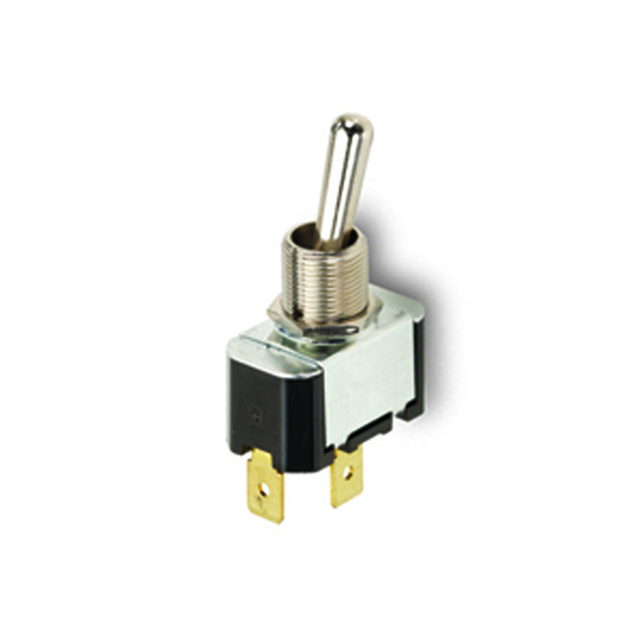

NTE Electronics, Inc 54-659	-17.8 °C	65.6 °C	Mom-Off-Mom	Non-Illuminated	SPDT	125 V	15 A	Standard Round	17.44 mm	Quick Connect	Panel Mount	Brass Nickel Plated	12.7 mm	Circular	15/32-32	0.25 in	Sealed	50000

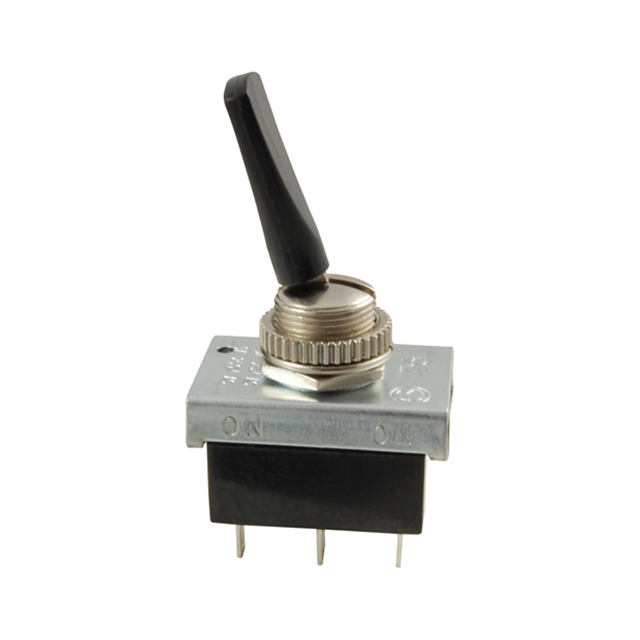

NTE Electronics, Inc 54-728	-20 °C	65 °C	On-On	Non-Illuminated	DPDT	125 V	10 A	Paddle	23.5 mm	Solder Lug	Panel Mount

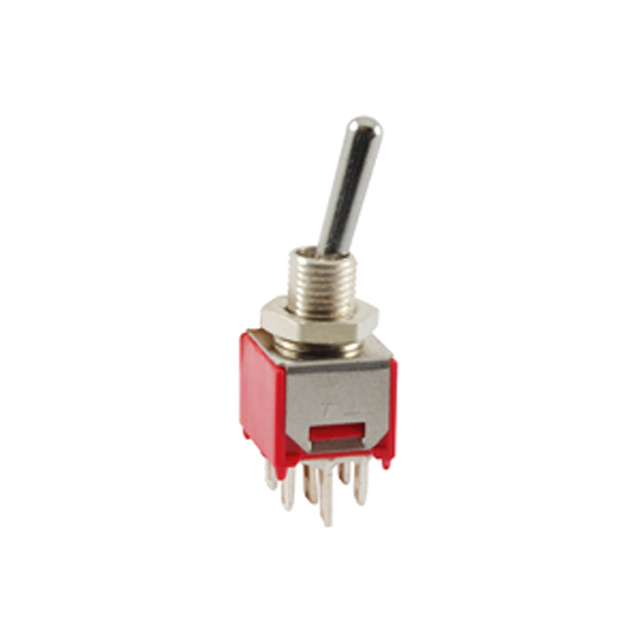

NTE Electronics, Inc 54-142	-30 °C	85 °C	On-On	Non-Illuminated	DPDT	120 V	3 A	Standard Round	9.4 mm	Solder Lug	Panel Mount								28 V
NTE Electronics, Inc 54-727	-20 °C	65 °C	On-Off	Non-Illuminated	SPST	125 V	10 A	Paddle	23.5 mm	Solder Lug	Panel Mount

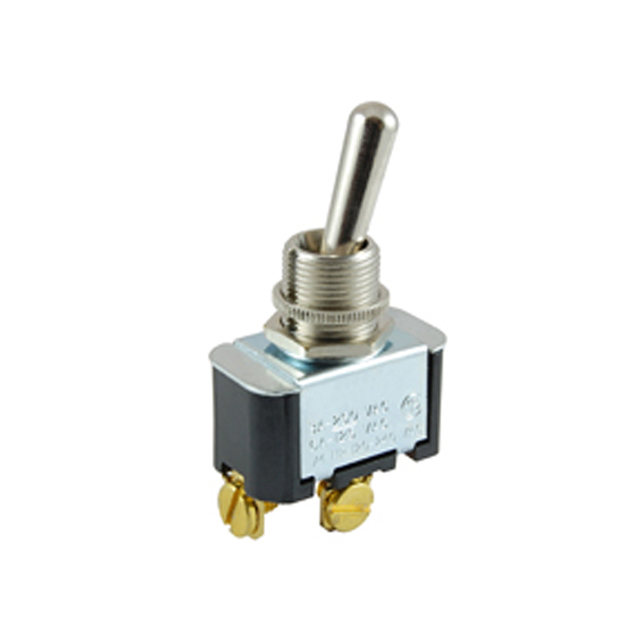

NTE Electronics, Inc 54-143	-17.8 °C	65.6 °C	On-Off	Non-Illuminated	SPST	125 V	6 A	Standard Round	17.44 mm	Screw Terminal	Panel Mount
NTE Electronics, Inc 54-459	-17.8 °C	65.6 °C	On-Off-On	Non-Illuminated	SPDT	125 V	15 A	Standard Round	17.44 mm	Quick Connect	Panel Mount	Brass Nickel Plated	12.7 mm	Circular	15/32-32	0.25 in	Sealed	50000

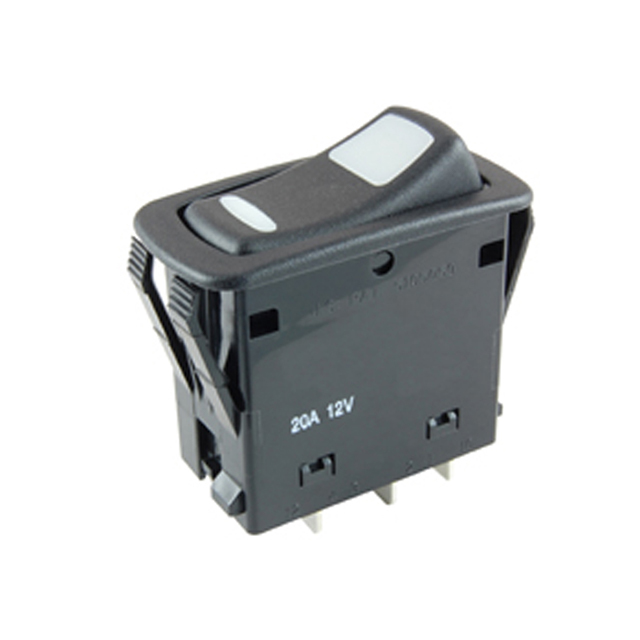

NTE Electronics, Inc 54-151	-40 °C	85 °C	Off-Mom		SPST-NO	125 V	16 A	Concave (Curved) Illuminated		Quick Connect	Panel Mount Snap-In					0.25 in				IP65	Dust Tight Water Resistant	Amber Green	LED	Black	12 V	No Marking	CSA UR

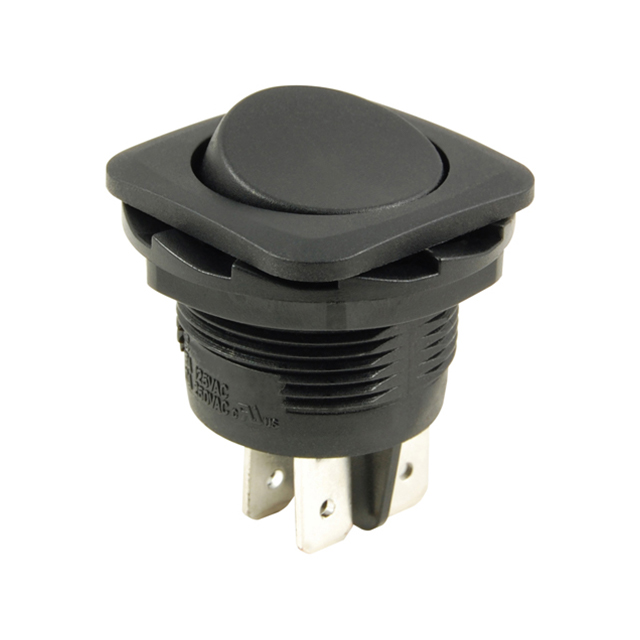

NTE Electronics, Inc 54-710	-20 °C	85 °C	On-Off		DPST	125 V	16 A	Round		Quick Connect	Panel Mount Threaded Body with Nut					0.25 in								Black		No Marking	cURus

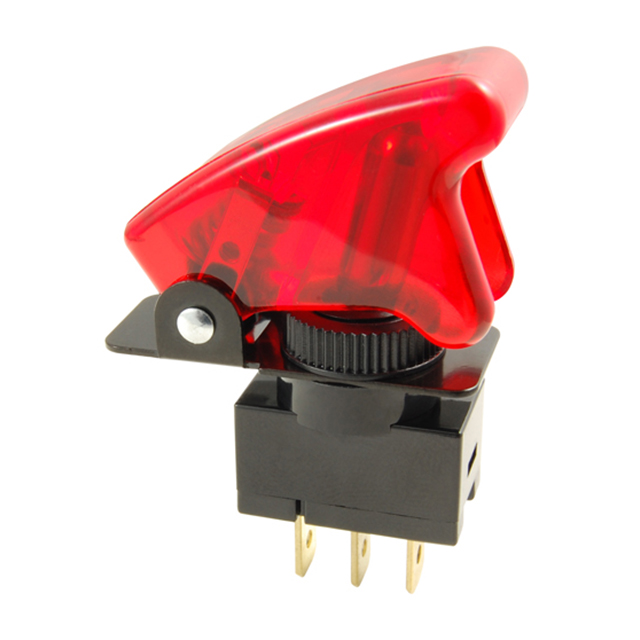

NTE Electronics, Inc 54-721	-20 °C	85 °C	On-Off	Illuminated	SPST		20 A	Standard Round	19.2 mm	Quick Connect	Panel Mount					0.25 in			12 V			Red	LED		12 V
