5V Series

Catalog

LINE FILTER 250VAC 5A CHASSIS

Part	Current	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Applications	Voltage - Rated AC	Filter Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Configuration	Mounting Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Filter	Connector Style	Connector Type	Termination	Termination	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]

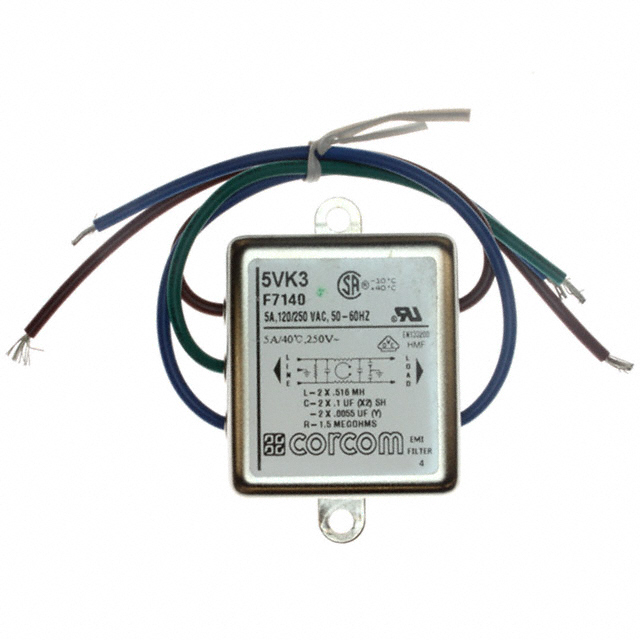

TE Connectivity Corcom Filters 5VK3	5 A	60 Hz	50 Hz	516 µH	General Purpose	250 V	Single Phase	CSA UR VDE	40 °C	-10 °C	Wire Leads	Single Stage	Chassis Mount

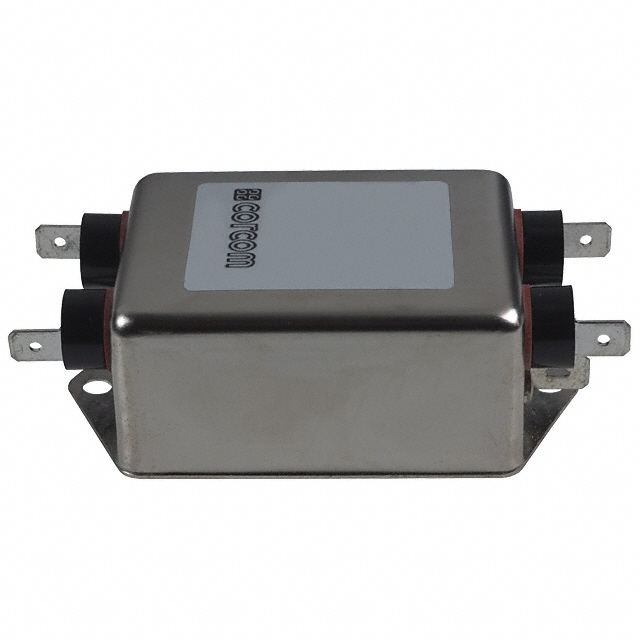

TE Connectivity Corcom Filters 5VR1	5 A	60 Hz	50 Hz	1.032 mH	General Purpose	250 V	Single Phase	CSA UR VDE	40 °C	-10 °C	Quick Connect	Two Stage	Chassis Mount

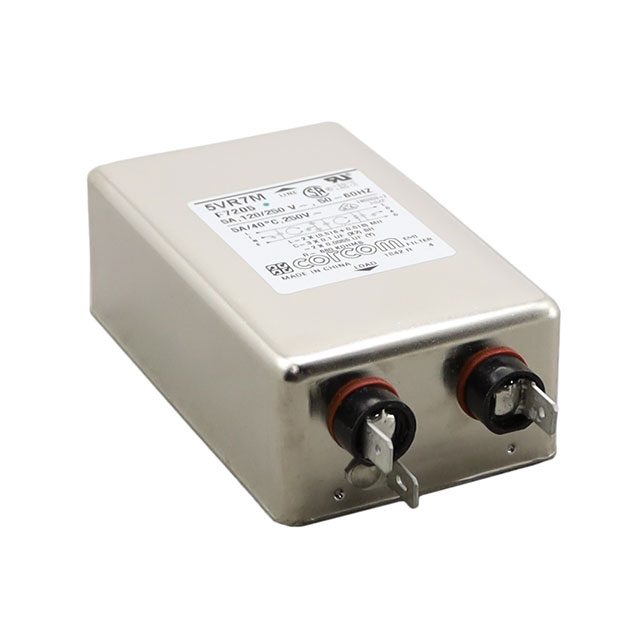

TE Connectivity Corcom Filters 5VR7M							Filtered (EMI RFI) - Commercial	CSA UL VDE					Flange Panel Mount	5 A	120 VAC	250 VAC	5 A	IEC 320-C14	Receptacle Male Blades	6.3 mm	Quick Connect	0.25 "	32.89 mm	23.11 mm

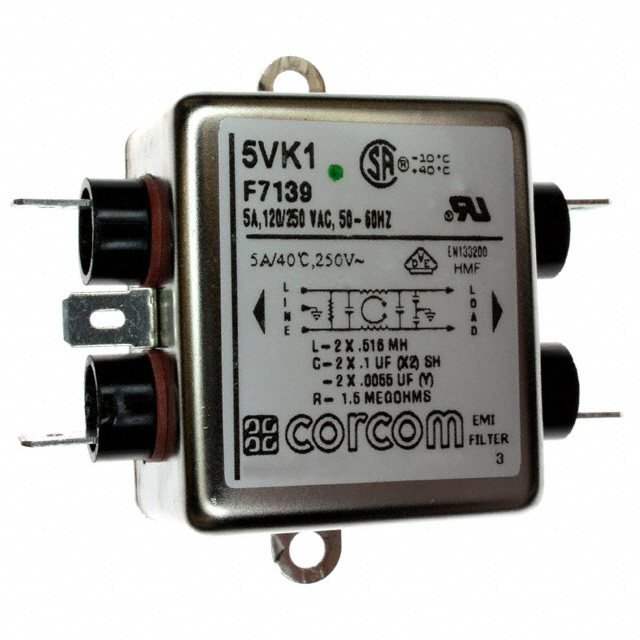

TE Connectivity Corcom Filters 5VK1	5 A	60 Hz	50 Hz	516 µH	General Purpose	250 V	Single Phase	CSA UR VDE	40 °C	-10 °C	Quick Connect	Single Stage	Chassis Mount
TE Connectivity Corcom Filters 5VK7M	5 A	60 Hz	50 Hz		General Purpose	250 V	Single Phase	CSA UR VDE	40 °C	-10 °C	IEC 320-C14 Quick Connect	Single Stage	Chassis Mount
TE Connectivity Corcom Filters 5VR3	5 A	60 Hz	50 Hz	1.032 mH	General Purpose	250 V	Single Phase	CSA UR VDE	40 °C	-10 °C	Wire Leads	Two Stage	Chassis Mount
