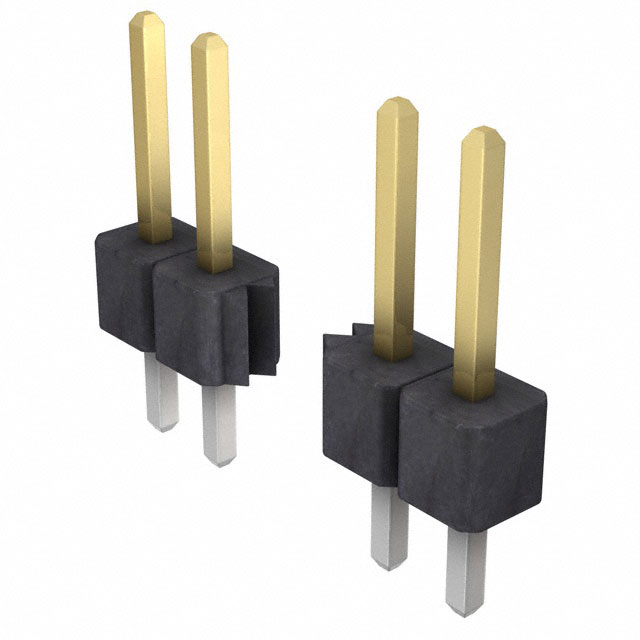

PCC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Material	Connector Type	Number of Positions	Contact Shape	Fastening Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Rows	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded	Overall Contact Length [x]	Overall Contact Length [x]	Contact Type	Insulation Color	Shrouding	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PCC36SFAN	2.54 µm	100 µin	Solder	8.08 mm	0.318 in	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	36	Square	Push-Pull	Gold	0.76 Ám	30 Áin	Phosphor Bronze	1	Through Hole	Board to Board Cable	0.1 "	2.54 mm	3.05 mm	0.12 in	UL94 V-0	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	All	13.67 mm	0.538 in	Male Pin	Black	Unshrouded
Sullins Connector Solutions PCC36SFBN	2.54 µm	100 µin	Solder	8.08 mm	0.318 in	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	36	Square	Push-Pull	Gold	0.76 Ám	30 Áin	Phosphor Bronze	1	Through Hole	Board to Board Cable	0.1 "	2.54 mm	5.58 mm	0.22 in	UL94 V-0	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	All			Male Pin	Black	Unshrouded	0.638 in	16.21 mm
Sullins Connector Solutions PCC36DAAN	2.54 µm	100 µin	Solder	5.84 mm	0.23 in	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	72	Square	Push-Pull	Gold	0.76 Ám	30 Áin	Phosphor Bronze		Through Hole	Board to Board Cable	0.1 "	2.54 mm	3.05 mm	0.12 in	UL94 V-0	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	All	11.43 mm	0.45 in	Male Pin	Black	Unshrouded			2	0.1 in	2.54 mm
Sullins Connector Solutions PCC36DFAN	2.54 µm	100 µin	Solder	8.08 mm	0.318 in	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	72	Square	Push-Pull	Gold	0.76 Ám	30 Áin	Phosphor Bronze		Through Hole	Board to Board Cable	0.1 "	2.54 mm	3.05 mm	0.12 in	UL94 V-0	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	All	13.67 mm	0.538 in	Male Pin	Black	Unshrouded			2	0.1 in	2.54 mm
Sullins Connector Solutions PCC36SAAN	2.54 µm	100 µin	Solder	5.84 mm	0.23 in	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	36	Square	Push-Pull	Gold	0.76 Ám	30 Áin	Phosphor Bronze	1	Through Hole	Board to Board Cable	0.1 "	2.54 mm	3.05 mm	0.12 in	UL94 V-0	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	All	11.43 mm	0.45 in	Male Pin	Black	Unshrouded
Sullins Connector Solutions PCC36DFBN	2.54 µm	100 µin	Solder	8.08 mm	0.318 in	3 A	Polybutylene Terephthalate (PBT)	Header Breakaway	72	Square	Push-Pull	Gold	0.76 Ám	30 Áin	Phosphor Bronze		Through Hole	Board to Board Cable	0.1 "	2.54 mm	5.58 mm	0.22 in	UL94 V-0	-65 ░C	125 °C	Tin	0.1 in	2.54 mm	All			Male Pin	Black	Unshrouded	0.638 in	16.21 mm	2	0.1 in	2.54 mm
