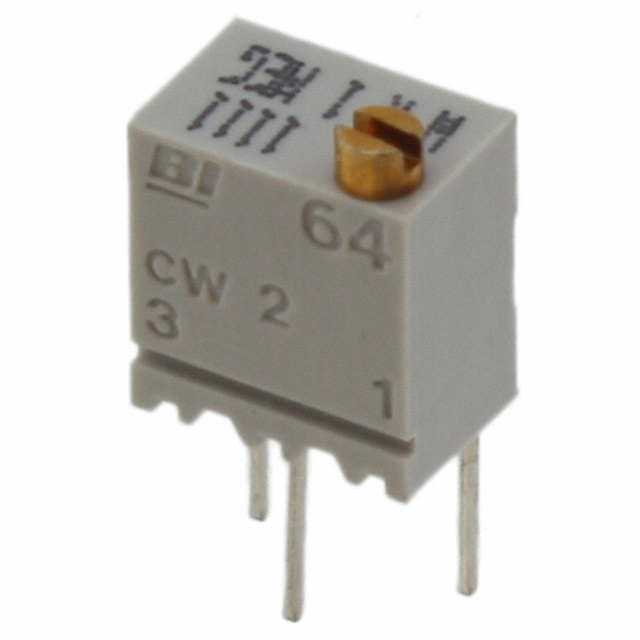

64WR Series

Catalog

TRIMMER 100 OHM 0.25W PC PIN TOP

Part	Resistance	Tolerance	Power (Watts)	Power (Watts)	Number of Turns	Temperature Coefficient	Resistive Material	Termination Style	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type
TT Electronics/BI 64WR100LF	100 Ohms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR25KLF	25 kOhms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR20LF	20 Ohms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR200LF	200 Ohms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR100KLF	100 kOhms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR1KLF	1000 Ohms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR50LF	50 Ohms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR50KLF	50000 Ohms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR1MEGLF	1 MOhms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
TT Electronics/BI 64WR500LF	0.5 kOhms	10 %	0.25 W	0.25 W	12	100 ppm/°C	Cermet	PC Pins	Top Adjustment	4.19 mm	6.35 mm	0.165 in	0.25 in	Through Hole
