966870 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

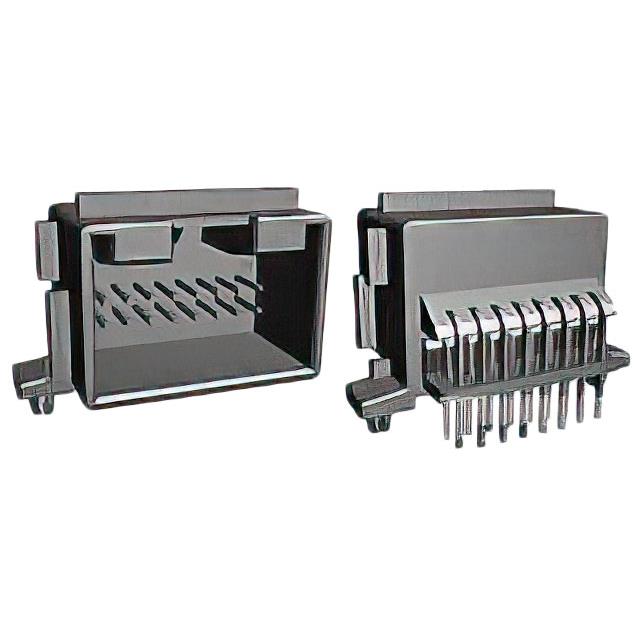

CONN HEADER R/A 16POS 2.54MM
| Part | Applications | Style | Contact Type | Mounting Type | Contact Length - Mating | Contact Length - Mating | Number of Rows [custom] | Number of Positions Loaded | Number of Positions | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post | Fastening Type | Shrouding | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Color | Contact Material | Insulation Height | Insulation Height | Connector Type | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive | Board to Cable/Wire | Male Pin | Right Angle Through Hole | 6 mm | 0.236 in | 2 | All | 16 | Solder | 0.1 in | 2.54 mm | 0.13 " | 3.3 mm | Friction Lock | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | 0.1 " | 2.54 mm | Square | Black | Copper Alloy | 0.772 in | 19.6 mm | Header | Board Lock | Tin |
TE Connectivity AMP Connectors |
