1473971 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

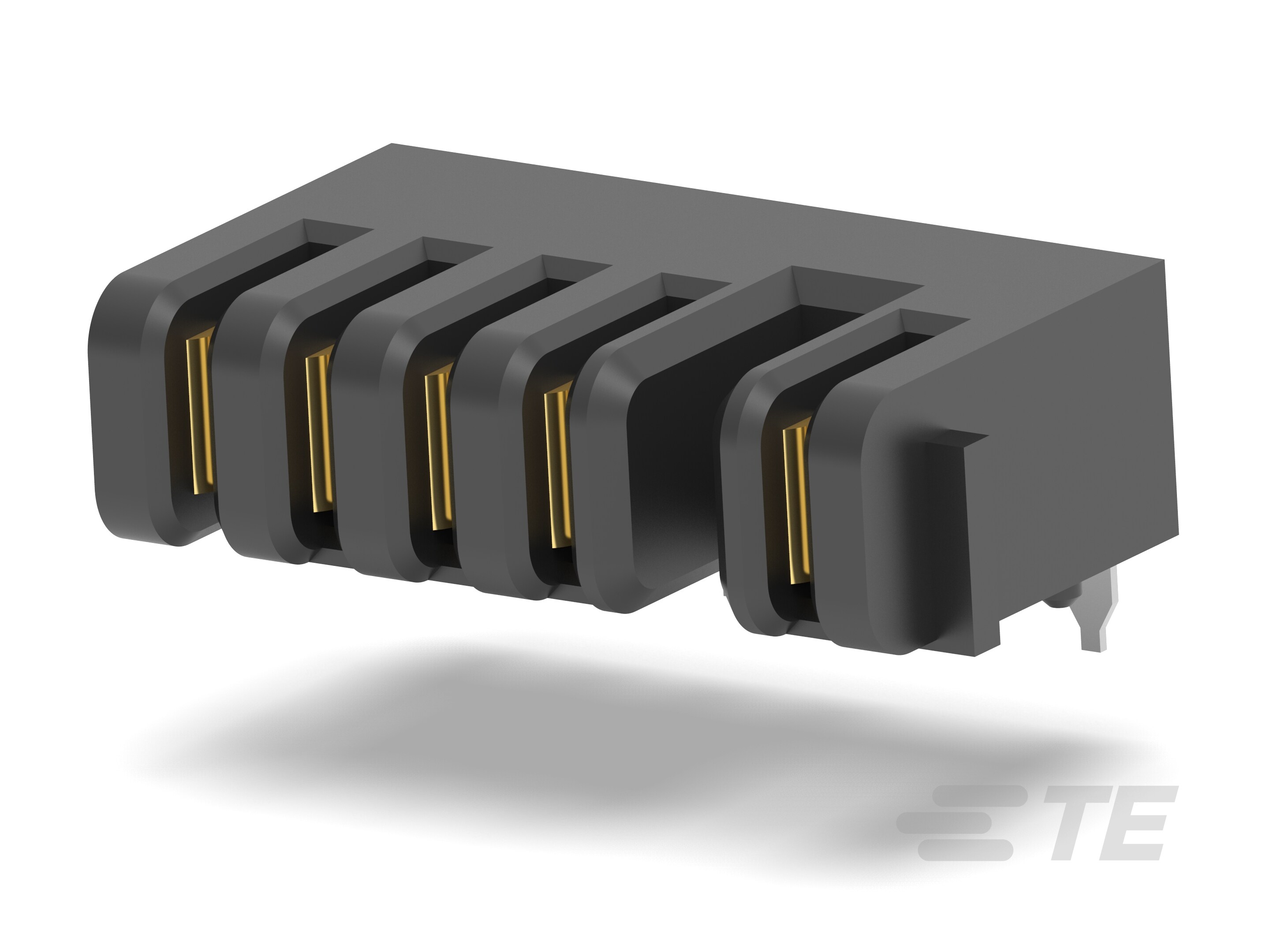

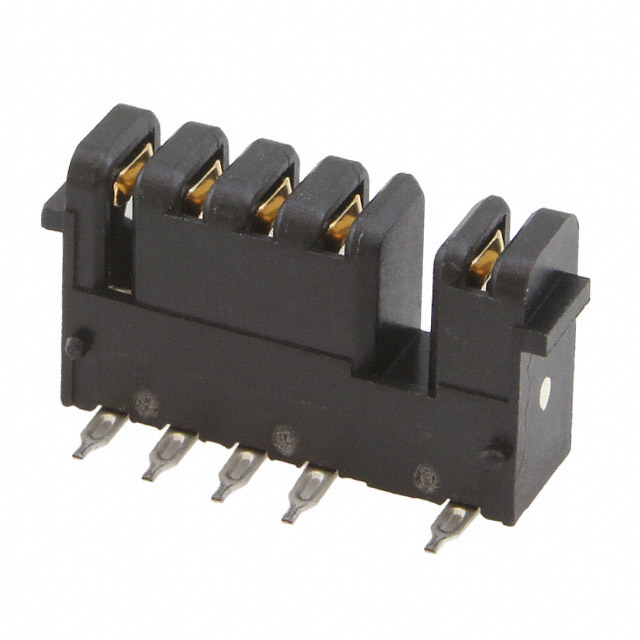

REC ASS'Y V TYPE FOR 2.5MM PIT ROHS COMPLIANT: YES
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Fastening Type | Current Rating (Amps) | Contact Material | Contact Finish | Pitch | Pitch | Connector Style | Mounting Type | Termination | Number of Rows | Number of Positions | Connector Type | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 30 VDC | -30 ░C | 70 °C | Thermoplastic | Spring Retention | 7 A | Copper Alloy | Gold | 2.5 mm | 0.098 in | Battery | Right Angle Through Hole | Solder | 1 | 5 | Receptacle Female Blade Sockets | Black | Board Guide |
