NPPN041 Series

Catalog

CONN HDR 4POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Contact Finish - Post	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Rows	Contact Type	Insulation Color	Voltage Rating	Contact Finish - Mating	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Connector Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Features

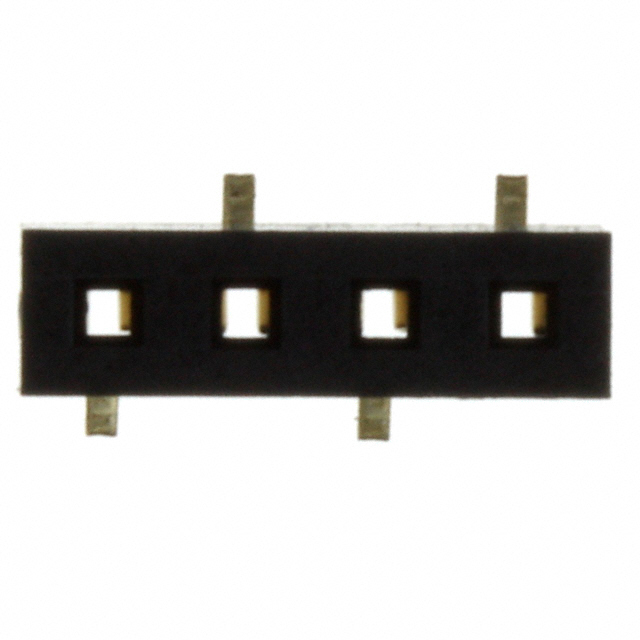

Sullins Connector Solutions NPPN041BFLD-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Gold	Flash	0.079 "	2 mm	Surface Mount	1	Female Socket	Black	150 VDC	Gold	4	Push-Pull	-40 C	105 ░C	All	Solder	Header	UL94 V-0	0.181 in	4.6 mm	2 A
Sullins Connector Solutions NPPN041BFLD-M81RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Gold	Flash	0.079 "	2 mm	Surface Mount	1	Female Socket	Black	150 VDC	Gold	4	Push-Pull	-40 C	105 ░C	All	Solder	Header	UL94 V-0	0.181 in	4.6 mm	2 A	Pick and Place

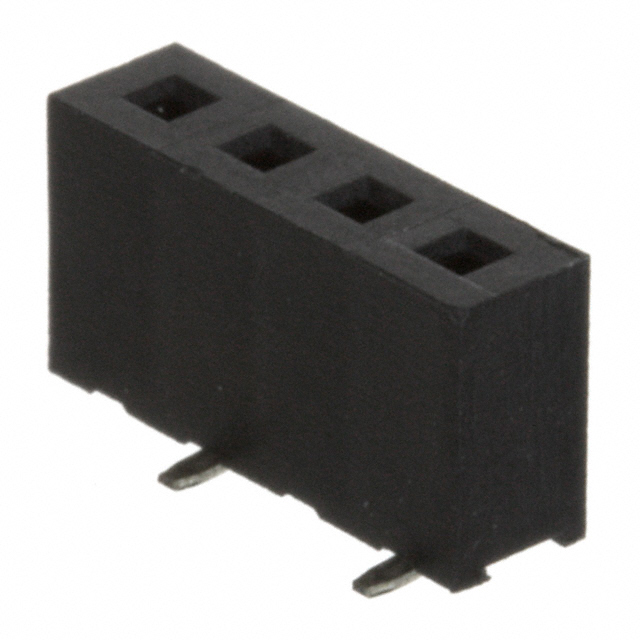

Sullins Connector Solutions NPPN041BFLC-RC	Flash	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Square	Gold	Flash	0.079 "	2 mm	Surface Mount	1	Female Socket	Black	150 VDC	Gold	4	Push-Pull	-40 C	105 ░C	All	Solder	Header	UL94 V-0	0.181 in	4.6 mm	2 A
