1445056 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD R/A 3POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Insulation Color	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Current Rating (Amps)	Contact Type	Shrouding	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Style	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Shape	Connector Type	Termination	Number of Rows	Features	Number of Positions
TE Connectivity AMP Connectors 1445056-3	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock
TE Connectivity AMP Connectors 1445056-9	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	9
TE Connectivity AMP Connectors 1445056-2	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	2
TE Connectivity AMP Connectors 1-1445056-0	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	10
TE Connectivity AMP Connectors 1445056-5	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	5
TE Connectivity AMP Connectors 2-1445056-6	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black		Tin	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	6
TE Connectivity AMP Connectors 1-1445056-1	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	11
TE Connectivity AMP Connectors 1-1445056-2	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	12

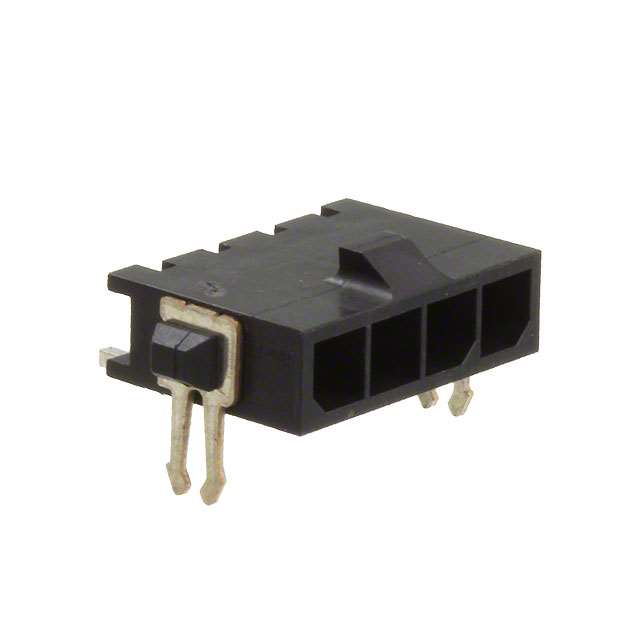

TE Connectivity AMP Connectors 1445056-4	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black	Tin-Lead	Tin-Lead	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	4
TE Connectivity AMP Connectors 3-1445056-0	2.54 µm	100 µin	General Purpose	-40 C	105 ░C	250 V	Brass	Black		Tin	All	Varies by Wire Gauge	Male Pin	Shrouded - 4 Wall	Locking Ramp	0.152 in	3.85 mm	Board to Cable/Wire	UL94 V-0	3 mm	0.118 in	Right Angle Surface Mount	100 çin	2.54 çm	Nylon Polyamide (PA)	Square	Header	Solder	1	Board Lock	10
