51866 Series

Catalog

CONN RCPT BLADE PWR 33P EDGE MNT

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Style	Features	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions Loaded	Termination	Number of Positions	Contact Layout, Typical	Number of Rows	Number of Positions Loaded

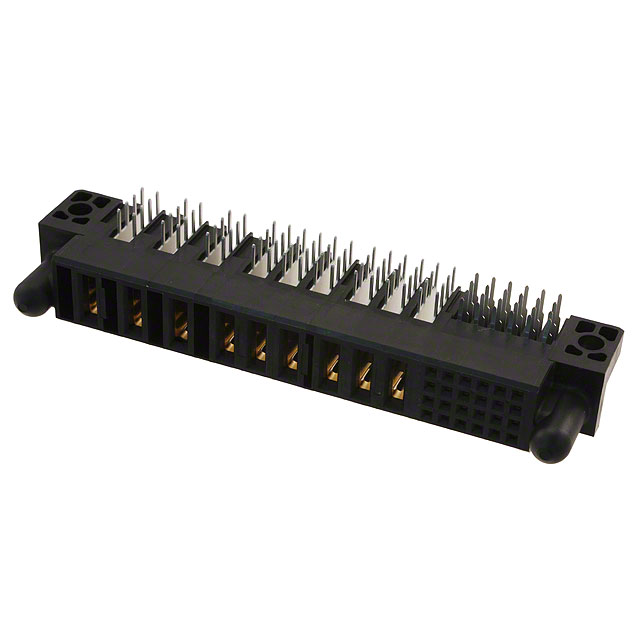

Amphenol ICC (FCI) 51866-025LF	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power	Guide Pin	Gold or Gold GXT™	33	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	24	9	All	Solder
Amphenol ICC (FCI) 51866-041PGSALF	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power		Gold or Gold GXT™		5.08 mm	0.2 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	12	4	All	Press-Fit Solder	16
Amphenol ICC (FCI) 51866-045LF	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power	Guide Pin	Gold or Gold GXT™		5.08 mm	0.2 in	Receptacle Female Blade Sockets	UL94 V-0	-20 C	105 ░C				Press-Fit		5 Power	1	3
Amphenol ICC (FCI) 51866-020LF	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power		Gold or Gold GXT™				Receptacle Female Blade Sockets	UL94 V-0	-20 C	105 ░C			All	Press-Fit		3 Power	1
Amphenol ICC (FCI) 51866-023	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power		Gold or Gold GXT™	24	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	20	4	All	Press-Fit
Amphenol ICC (FCI) 51866-039LF	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power		Gold or Gold GXT™	22 positions	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	12	10	All	Press-Fit Solder
Amphenol ICC (FCI) 51866-047LF	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power	Guide Pin	Gold or Gold GXT™	33	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	24	9	All	Press-Fit Solder

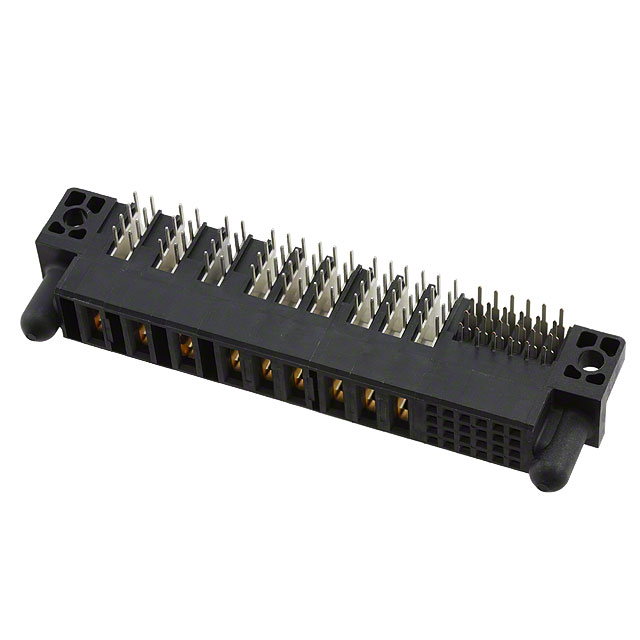

Amphenol ICC (FCI) 51866-025	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power	Guide Pin	Gold or Gold GXT™	33	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	24	9	All	Solder
Amphenol ICC (FCI) 51866-040	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Black	Blade Power		Gold or Gold GXT™	6	5.08 mm	0.2 in	Receptacle Female Blade Sockets	UL94 V-0	-20 C	105 ░C			All	Press-Fit		6 Power	1
Amphenol ICC (FCI) 51866-007LF	Through Hole Right Angle	0.76 Ám	30 Áin	Black	Blade Power	Guide Pin	Gold or Gold GXT™	26	2.54 mm	0.1 in	Blade Sockets Female Sockets Receptacle	UL94 V-0	-20 C	105 ░C	24	2	All	Press-Fit
