895-098 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 98POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Pitch	Pitch	Mounting Type	Contact Finish	Number of Positions	Termination	Card Thickness [Max]	Card Thickness [Min]	Gender	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Positions/Bay/Row	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-098-520-808	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Through Hole	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening	49

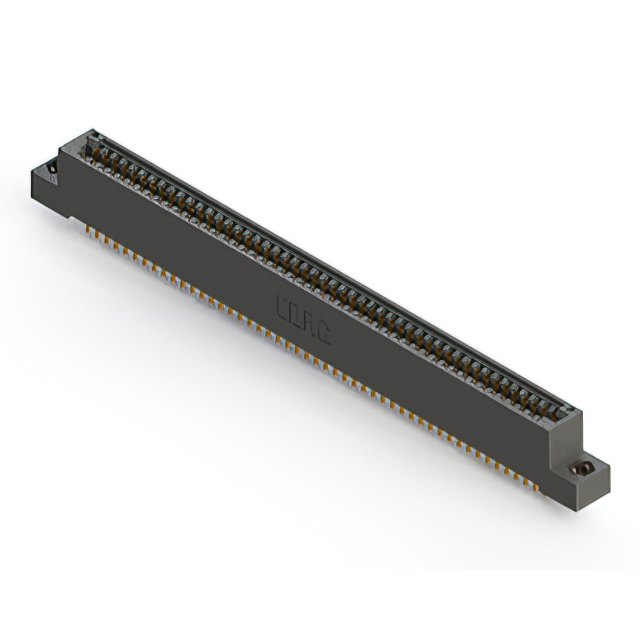

EDAC Inc. 895-098-556-208	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Board Edge Straddle Mount	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	49	Card Extender
EDAC Inc. 895-098-556-812	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Board Edge Straddle Mount	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	Side Mount Opening Unthreaded	49	Card Extender	0.128 "	3.25 mm
EDAC Inc. 895-098-541-203	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Through Hole	Gold	98	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	49		0.116 "	2.95 mm
EDAC Inc. 895-098-541-202	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Through Hole	Gold	98	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	49		0.128 "	3.25 mm
EDAC Inc. 895-098-555-808	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Board Edge Straddle Mount	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening	49	Card Extender
EDAC Inc. 895-098-523-212	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Through Hole	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	49		0.128 "	3.25 mm
EDAC Inc. 895-098-558-804	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Right Angle Through Hole	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin		49		0.156 "	3.96 mm
EDAC Inc. 895-098-540-203	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Through Hole	Gold	98	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	49		0.116 "	2.95 mm
EDAC Inc. 895-098-521-201	Polyphenylene Sulfide (PPS)	2	2	Non Specified - Dual Edge	125 °C	-40 C	Black	Copper Alloy	0.1 "	2.54 mm	Through Hole	Gold	98	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Dual	Cantilever	0.25 Ám	10 Áin		49
